Key Takeaways
- Equipment locks the build: Room dimensions, floor loading, shielding, and HVAC follow the machines you select, not the other way around, so fix the modality mix before signing the tenancy.
- Budget for scale: A three-modality imaging centre runs roughly $1.5 million to $5 million-plus, with equipment capital driving 50% to 65% of the spend.

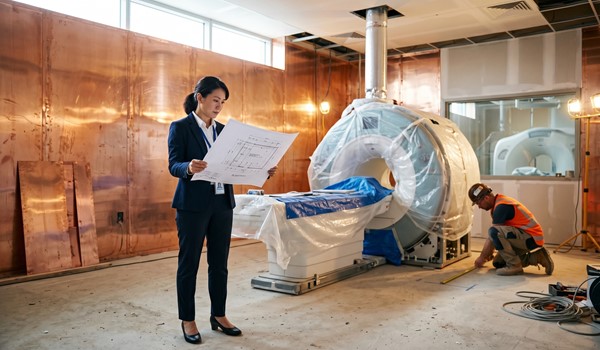

- MRI is the constraint: RF shielding runs $80,000 to $150,000 per suite, and the magnet is craned in before the building closes around it, so late vendor changes cost weeks.
- Accreditation is mandatory: The Diagnostic Imaging Accreditation Scheme is required for Medicare-billable services, and radiation-based modalities need state regulatory licensing before operation.
- Plan the timeline: Expect 26 to 40 weeks from design lock to commissioning, longer where structural reinforcement is needed.
A radiology and diagnostic imaging fit-out is one of the most equipment-driven builds in healthcare. Unlike a consult-based clinic, where the room comes first and the furniture follows, an imaging centre is designed around the machines: a CT scanner dictates floor loading and HVAC, an MRI dictates shielding and services, and the reporting workflow dictates throughput. Get the sequence right and you open a compliant, efficient centre; get it wrong and you face expensive variations, licensing delays, and rooms that cannot house the equipment you bought. This guide walks through the decisions that shape the build and the equipment quote.
The modality mix decides everything
The clinical service mix determines the equipment list, and the equipment list determines almost every other build variable. A general community imaging centre typically needs digital X-ray, ultrasound, mammography, and bone densitometry. A higher-acuity centre adds CT, MRI, and fluoroscopy. Each modality carries distinct constraints, so lock the mix before signing the tenancy agreement and get quotes from fit-out specialists who have delivered comparable combinations.
- CT: Needs floor reinforcement and HVAC capacity to dissipate tube heat.
- MRI: Needs RF shielding, helium quench routing, and exclusion of all ferromagnetic services from the magnet zone.
- X-ray, mammography, fluoroscopy: Need lead-lined shielding and radiation licensing appropriate to the modality.
- Ultrasound and bone densitometry: Lighter on services but still need appropriate room sizing and workflow.
What the build costs
Imaging fit-outs sit at the higher end of healthcare builds because the equipment dominates the budget. As a 2026 planning baseline for the Australian market, a three-modality imaging centre runs roughly $1.5 million to $5 million or more, with equipment capital accounting for 50% to 65% of that spend. The single largest compliance-driven line is usually MRI shielding, at $80,000 to $150,000 per suite, which must be designed by a specialist contractor.
| Cost element | Indicative range | Note |
|---|---|---|
| Total project (3 modalities) | $1.5M to $5M+ | Equipment is 50-65% of spend |
| MRI RF shielding per suite | $80K to $150K | Specialist contractor required |
| Reporting workstation | $15K to $25K each | Calibrated diagnostic monitors |
| PACS infrastructure | $80K to $200K | Depends on volume and integration |
The reporting workflow is clinical infrastructure
Picture Archiving and Communication Systems (PACS) and Radiology Information Systems are no longer back-office IT. The reporting workflow defines clinical throughput, and reporting workstations need dual or quad calibrated diagnostic monitors meeting RANZCR specifications. Budget $15,000 to $25,000 per reporting workstation, plus $80,000 to $200,000 for PACS infrastructure depending on volume and integration scope. Before signing the equipment contract, confirm vendor interoperability with referrer systems such as My Health Record, e-referrals, and GP practice software, because an imaging centre that cannot exchange data cleanly with referrers loses efficiency from day one.
Compliance and accreditation from the start
Two compliance layers shape an imaging fit-out. First, radiation-based modalities require state regulatory licensing and registration before operation, with frameworks varying between jurisdictions, so engage the state regulator early. Second, the Diagnostic Imaging Accreditation Scheme is mandatory for Medicare-billable services in Australia, which means the facility and its processes must meet accreditation standards to bill Medicare. Both should be designed in from the start rather than chased after commissioning, because retrofitting compliance into a built imaging suite is slow and costly.
The vendor decision drives the build sequence
The equipment vendor decision determines the build sequence. Major OEMs such as GE Healthcare, Siemens Healthineers, Philips, Canon, and Fujifilm each have their own site planning specifications and preferred commissioning contractors. For MRI, the magnet is craned into position and the building is then closed around it, so a late change to vendor can add weeks of delay. MRI delivery and rigging typically runs 12 to 24 weeks depending on vendor and configuration. This is why the vendor and modality decisions must come before the architect draws anything: the machines set the room, and changing the machines changes the room.
A realistic scenario
Picture an operator planning a new community imaging centre with digital X-ray, ultrasound, mammography, and a CT scanner, with an MRI suite in stage two. The temptation is to secure the tenancy and start the base build while finalising equipment.
That order invites expensive rework. The operator instead locks the modality mix and the equipment vendor first, so the CT room is designed with the right floor loading and HVAC, the future MRI suite is planned for shielding and quench routing, and the reporting room is specced for RANZCR-compliant workstations. Radiation licensing and accreditation are engaged from the outset, and the build is sequenced around the 12 to 24 week MRI lead time. The result is a centre that commissions on schedule across 26 to 40 weeks rather than stalling on variations. For neighbouring build types that follow the same equipment-first logic, the day surgery fit-out guide and the NDIS allied health super-clinic fit-out guide are useful companions, and the clinic fitout costs guide frames the budget. Compare suppliers through the medical fit-out and ultrasound table and couch categories.
Frequently asked questions
How much does a radiology fit-out cost in Australia?
A three-modality diagnostic imaging centre runs roughly $1.5 million to $5 million or more, with equipment capital accounting for 50% to 65% of the total. MRI shielding alone runs $80,000 to $150,000 per suite, and PACS infrastructure adds $80,000 to $200,000, so equipment and compliance dominate the budget.
Why does the equipment have to be chosen before the design?
Because the machines set the build. Room dimensions, floor loading, shielding, and HVAC all follow the modality mix and vendor selected. A CT needs floor reinforcement and heat dissipation; an MRI needs shielding and quench routing. Choosing equipment late forces expensive rework, so lock the mix before signing the tenancy.
What accreditation and licensing does an imaging centre need?
Radiation-based modalities require state regulatory licensing and registration before operation, with frameworks varying by jurisdiction. The Diagnostic Imaging Accreditation Scheme is mandatory for Medicare-billable services. Both should be designed in from the start, since retrofitting compliance into a built imaging suite is slow and costly.
How long does an MRI take to install?
MRI delivery and rigging typically runs 12 to 24 weeks depending on vendor and configuration. The magnet is craned into position and the building is closed around it, so a late change of vendor can add weeks. Plan the build sequence around this lead time rather than treating it as a final step.
How long does the whole fit-out take?
Expect 26 to 40 weeks from design lock to commissioning, and longer where structural reinforcement is required for heavy modalities such as CT or MRI. Engaging the equipment vendor, shielding contractor, and state regulator early is the single biggest factor in hitting that timeline without costly variations.
What matters most
A radiology fit-out succeeds when the equipment leads the build, not the architecture. Lock the modality mix and vendor before the tenancy is signed, because the machines set room dimensions, floor loading, shielding, and HVAC. Budget realistically at $1.5 million to $5 million-plus, with equipment at 50% to 65% of spend and MRI shielding a major line. Design radiation licensing and Diagnostic Imaging Accreditation Scheme compliance in from the start, spec RANZCR-compliant reporting and interoperable PACS, and sequence the build around MRI lead times. Get that order right and the centre commissions on schedule; reverse it and every change ripples through the build.
