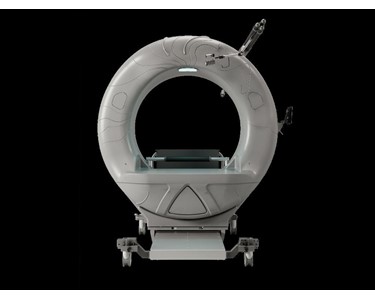

Imaginalis - PEGASO™ Evolution Equine & Large Animal Veterinary CT Get latest price

Read more...

To contact ARO Systems about Imaginalis PEGASO™ Evolution Equine & Large Animal Veterinary CT use Get a quote.

Imaginalis's Latest Large Animal HDVI Platform

"Spatial resolution with isotropic voxels as high as 0.09 mm in all three dimensions, which means, Pegaso™ Evolution is the world’s highest resolution Equine & Large Animal focused Veterinary CT."

Originally launched in 2014, the Pegaso™ platform was the first CT technology specifically designed for horses. We have evolved Pegaso™ into the market leading Forte model, the new standard in large animal imaging.

PEGASO Features
- Special Pre-sets for Equine.

HVDI

Helping your clients make a better-informed decision about their patients health every day. Choose the right imaging technology for you.

HDVI Differentiations
How is Epica's HDVI Technology Different than Conventional CT?
- HDVI (High Definition Volumetric Imaging) is a new hybrid technology in CT (Computed Tomography) that provides unprecedented diagnostic and interventional information for clinicians.

Conventional (CT) Computed Tomography
- Conventional CT samples densities within a patient’s anatomy, providing axial sliced data, leaving gaps in the data in-between each slice.
- The data is reconstructed using interpolation, which works by using known data to estimate values at unknown points.
- After the data had been interpolated it is rendered in axial and coronal data sets. The resolution is different on each side.

Compared to HDVI Technology
- HDVI technology scans a solid volume of data at a time, resulting in gapless data, with no need for interpolation
- HDVI delivers a 3D map of densities with a spacial resolution that is the same in all three dimensions, with contrast equivalent to conventional CT
- This volume of data can provide resolution as small as 0.09mm which is about the thickness of a human hair
- Clinicians can see the data in any angle, thickness or orientation leading to superior diagnostic confidence

Evolution

Variable geometry gantry (1.1m to 0.8m source to detector) optimizes image quality for any part of the horse and a Gantry that can tilt to 15 degrees and has a 1.2m bore size.

Imaginalis (formerly Epica™) was founded with a passion for veterinary medicine that is evident in every imaging platform we build. As the market leader in advanced veterinary imaging for small animal, exotics, and equine medicine, Imaginalis has the experience, stability, and focus to serve the equine market effectively today and for the years to come.

Click here for more information Imaginalis Pegaso™ Evolution

Specs:

HDVI CT and Full-Featured Fluoroscopy

Gantry Size: 1.2 M

Footprint: 2109 x 2189 x 2324 mm

Weight: 900 KG

Power Input: 380 V 3 ~ 60/50 Hz 32A

Shielding requirements may vary from state to state. Please check your state's regulations to ensure compliance.
