ABCO Health Care - Examination Table | Hospital Exam C Couch 3 Section Price Guide: $5,039

Supplier: Core Clinical

Examination Table | Hospital Exam C Couch 3 Section

1/2

The ABCO Hospital Exam C Couch 3 Section features electrically controlled ±15° Trendelenburg tilt, plinth-to-chair adjustment and 150mm clearance for patient hoist access.

±15° Trendelenburg tilt

In Stock

Features

Designed and manufactured in Australia for hospitals, clinics and doctors' offices, including examinations, tests and therapies.

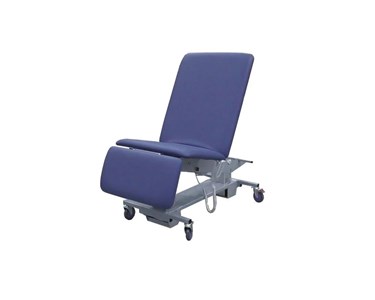

Three ergonomically sized sections configure as a simple plinth or chair.
Designed to support larger patients comfortably and safely, with a clean, uncluttered twin-column structure that reduces pinch points.
Minimum height of 52cm provides easy access for frail or disabled patients.
Height, backrest, leg/head rest and ±15° Trendelenburg adjustments are electrically controlled via a hand control with reset buttons.
Braked castors support movement and stability during transfers; under-frame clearance allows patient hoist access.

Specifications

Category	Detail
SKU	EH30.07021.TE00EH.005P0
Number of Upholstery Sections	3
Height Adjustment Control	Hand control
Height Adjustment Lift Operation	Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Maximum Lifting Capacity	300kg Dynamic / 600kg Static
Height Adjustment Range	520 - 920mm
Overall Upholstery Width	710mm
Upholstery Adjustment	Backrest – 970mm long - Electric - -0° / +80°; Centre Section - 560mm long; Short Section – 340mm long - Electric - -80° / +0°; Trendelenburg - ±15°
Frame Material	Heavy steel plate and tube
Frame Colour	Light Grey
Wheel System	125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Upholstery Fabric	Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Upholstery Foam	38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
Upholstery Colours	Wedgewood. Other colours on request
Electrical Approvals	Medically approved according to EN60601-1 / AS3200
Electrical Requirements Supply	230vAC +/-10%, 50hz max 1.5amp
Electrical Requirements Operation	24vDC max 70VA
Shipping Dimensions	172 x 74 x 65cm / 80kg Shrink-wrapped on a wooden pallet with bubble wrap
Weight	70kg
Total Main Body Sections	3
ARTG	123753
Warranty	5 years, parts only

Capacity clarification

The product information also states a lifting capacity of 350kg, which differs from the Maximum Lifting Capacity specification above.

Features

Designed and manufactured in Australia for hospitals, clinics and doctors' offices, including examinations, tests and therapies.
Three ergonomically sized sections configure as a simple plinth or chair.
Designed to support larger patients comfortably and safely, with a clean, uncluttered twin-column structure that reduces pinch points.
Minimum height of 52cm provides easy access for frail or disabled patients.
Height, backrest, leg/head rest and ±15° Trendelenburg adjustments are electrically controlled via a hand control with reset buttons.
Braked castors support movement and stability during transfers; under-frame clearance allows patient hoist access.

Specifications

Category	Detail
SKU	EH30.07021.TE00EH.005P0
Number of Upholstery Sections	3
Height Adjustment Control	Hand control
Height Adjustment Lift Operation	Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Maximum Lifting Capacity	300kg Dynamic / 600kg Static
Height Adjustment Range	520 - 920mm
Overall Upholstery Width	710mm
Upholstery Adjustment	Backrest – 970mm long - Electric - -0° / +80°; Centre Section - 560mm long; Short Section – 340mm long - Electric - -80° / +0°; Trendelenburg - ±15°
Frame Material	Heavy steel plate and tube
Frame Colour	Light Grey
Wheel System	125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Upholstery Fabric	Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Upholstery Foam	38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
Upholstery Colours	Wedgewood. Other colours on request
Electrical Approvals	Medically approved according to EN60601-1 / AS3200
Electrical Requirements Supply	230vAC +/-10%, 50hz max 1.5amp
Electrical Requirements Operation	24vDC max 70VA
Shipping Dimensions	172 x 74 x 65cm / 80kg Shrink-wrapped on a wooden pallet with bubble wrap
Weight	70kg
Total Main Body Sections	3
ARTG	123753
Warranty	5 years, parts only

Capacity clarification

The product information also states a lifting capacity of 350kg, which differs from the Maximum Lifting Capacity specification above.
