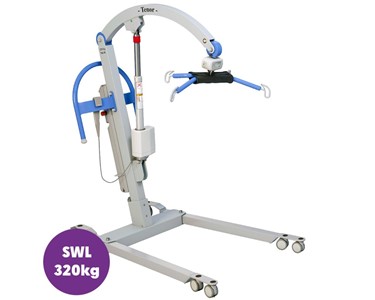

Bariatric Patient Lifter | Arjo Tenor

Bariatric Patient Lifter | Arjo Tenor Price Guide: $24,383

Supplier: Rehab Hire & Sales

Bariatric Patient Lifter | Arjo Tenor

The Tenor mobile floor lifter is specifically designed to lift and transfer plus-size patients or residents.

Receive 1-3 days from order

Features and Benefits

Lightweight aluminium structure
Curved jib design maximises lifting clearance and is important for 360º rotation when the patient is lifted
4-point bariatric spreader bar provides a wider gap between shoulder and leg hooks, distributing the patient’s weight, and is designed to reduce the squeezing forces from the sling
The ergonomically designed curved handlebar enables the caregiver to turn and manoeuvre in the care environment
Can be operated from the control panel on the mast or with the hand control, enabling the caregiver to stay close to the patient while operating the lifter
Optional suspended scale enables the caregiver to weigh the patient while performing a transfer, supporting an efficient weighing routine
Battery charge indicator
Service meter displays the total hours in use
Emergency stop and system failure override
Automatic safety cut-out if lowered onto an obstacle
Low-friction castors, rear two with brakes

Compliance
ISO 10535:2006

Specifications

Maximum Lifting Height	1860mm
Minimum Lifting Height	600mm
Lifting Stroke	1260mm
Minimum Total Storage Height	1470mm
External Width \| Legs Closed	745mm
External Width \| Legs Open	1250mm
Internal Width \| Legs Closed	625mm
Internal Width \| Legs Open	1160mm
Leg Clearance \| Floor to Top of Legs	115mm
Chassis Clearance \| Floor to Bottom of Chassis	20mm
Lifter Length	1485mm
Turning Diameter	1650mm
Weight with Spreader Bar and Battery	69.1kg
SWL	320kg

To contact Rehab Hire & Sales about Bariatric Patient Lifter | Arjo Tenor use Get a quote.

Features and Benefits

Lightweight aluminium structure
Curved jib design maximises lifting clearance and is important for 360º rotation when the patient is lifted
4-point bariatric spreader bar provides a wider gap between shoulder and leg hooks, distributing the patient’s weight, and is designed to reduce the squeezing forces from the sling
The ergonomically designed curved handlebar enables the caregiver to turn and manoeuvre in the care environment
Can be operated from the control panel on the mast or with the hand control, enabling the caregiver to stay close to the patient while operating the lifter
Optional suspended scale enables the caregiver to weigh the patient while performing a transfer, supporting an efficient weighing routine
Battery charge indicator
Service meter displays the total hours in use
Emergency stop and system failure override
Automatic safety cut-out if lowered onto an obstacle
Low-friction castors, rear two with brakes

Compliance
ISO 10535:2006

Specifications

Maximum Lifting Height	1860mm
Minimum Lifting Height	600mm
Lifting Stroke	1260mm
Minimum Total Storage Height	1470mm
External Width \| Legs Closed	745mm
External Width \| Legs Open	1250mm
Internal Width \| Legs Closed	625mm
Internal Width \| Legs Open	1160mm
Leg Clearance \| Floor to Top of Legs	115mm
Chassis Clearance \| Floor to Bottom of Chassis	20mm
Lifter Length	1485mm
Turning Diameter	1650mm
Weight with Spreader Bar and Battery	69.1kg
SWL	320kg
