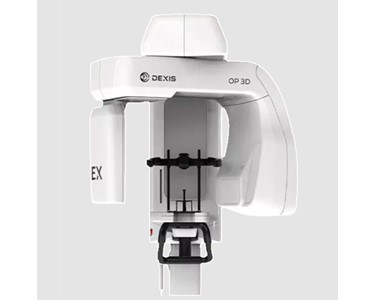

Dexis ORTHOPANTOMOGRAPH OP 3D EX

Dexis - ORTHOPANTOMOGRAPH OP 3D EX

Supplier: Dexis ANZ

ORTHOPANTOMOGRAPH OP 3D EX

Expand your diagnostic capabilities and dental practice with a cutting-edge 3D imaging system designed for general practitioners and specialists.

Advanced 3D dental imaging platform with rapid, high-quality scans and versatile clinical applications.

?Expand Your Treatment Offering with 3D Dental Imaging?

Built on the OP 3D family technology, this advanced dental x-ray platform is designed for general practitioners who want to elevate practice capabilities with fast, high-quality 3D imaging. Capture crisp, accurate images with an intuitive workflow and flexible field of view sizes for confident diagnosis and planning.

Features and Key Benefits

Upgrade-ready to cephalometric imaging with patented ORTHOceph™ Plus design.
HD panoramic program for sharper images and reduced noise, with 15-second scan times.
Ergonomic exposure switch and personalisable device/remote control sounds.
Automatic Dose Control (ADC) automatically optimises exposure values.
Advanced imaging filters: Metal Artifact Reduction (MAR), Implant Contrast Enhancement (ICE), Edge-Preserving Noise Reduction (EPNR).
User-friendly interface with area selection and scout view without patient repositioning.
Fast scan times—30% faster overall, 50% faster low dose compared to predecessors.
DTX Studio™ Clinic software for case setup, AI-based 3D analysis, and workflow integration.
Extensive clinical versatility: implant planning, root canals, gum disease, airway, TMJ, and orthodontic workflows.

Six preset FOVs and 66 customisable volume sizes, with low dose, standard, endo, and high resolutions for optimised diagnostics.

Customisable Field of View (FOV) Options

FOV Size (Height × Diameter)	Clinical Application
5 × 5 cm	Localised diagnostics, endodontic evaluation, single implant sites, pathoses
6 × 9 cm	Single arch implant planning, surgical guide, impacted canines
8 × 8 cm	Compact dual arch, treatment planning mandibular and maxillary implants
10 × 10 cm	Complete dentition, mandible and maxilla including 3rd molar, sinuses
10 × 11 cm	Enhanced third molar assessment, larger jaws
10 × 15 cm (optional)	Dentition and bilateral TMJ, maxillofacial, sinus and pharyngeal airway

Technical Specifications

Focal Spot: 0.5
Tube Voltage: 60 – 95 kV
Tube Current: 2 – 16 mA
HU Capacity: 35 kJ, 49,000 HU
Minimum Total Filtration: 3.4 mm Al @ 95 kV
Weight: 120 kg
Minimum Room Height: 2100 mm
Wheelchair accessible
DICOM support
2D Panoramic Imaging: IGZO TFT detector, 95 µm pixel size, exposure time 1.4–9.0 s
Imaging Programs: Standard, segmented, paediatric, bitewing, TMJ, lateral

Workflow and Software Integration

DTX Studio™ Clinic software automates case setup, focal trough identification, 3D tooth positioning, mandibular nerve annotation, and merges CBCT/intraoral scans.
AI-powered analysis for accelerated diagnoses and efficient surgical template design.
Supports fast chairside surgical template design and comprehensive patient record management.
