Healthtec - Healthtec Pinnacle Universal Examination Table Price Guide: $4,180

Supplier: Core Clinical

Healthtec Pinnacle Universal Examination Table

1/4

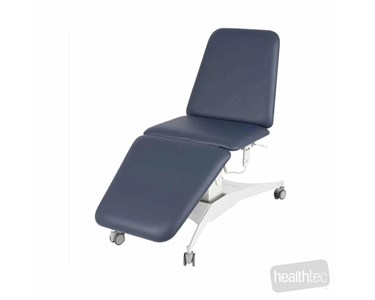

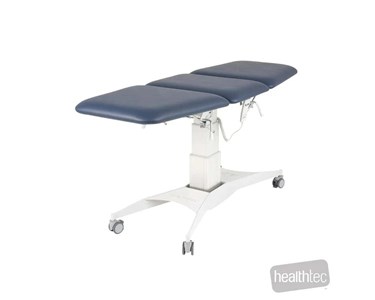

The Healthtec Pinnacle Universal Examination Table has a single-column motorised lift with no pinch or crush points, and manually adjustable end sections from -35° to +80°.

No pinch points

In Stock

Features

Three-section examination table for left and right patient examinations and procedures where space is limited.
Single-column motorised lift eliminates pinch and crush points so nothing can get trapped under the table during adjustment.
Each end section manually raises to +80° and lowers to -35°, providing a wider positioning range than a standard universal table.
New-generation column design suits multiple disciplines.
Medical-grade total lock castor wheels swivel 360 degrees and are durable and easy to maintain.
Powder coated steel frame.
High-quality anti-microbial vinyl and CFC-free foam meet hygiene standards.
Quality Dunlop upholstery foam.
Choice of colour and accessory options.
Australian designed and manufactured.

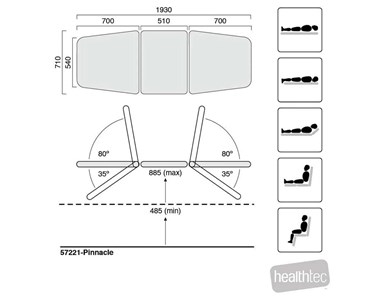

Specifications

Category	Detail
Brand	Healthtec
Weight	80 kg
Dimensions	2050 × 850 × 650 cm
Maximum Working Load	300kg (Stationary)
Maximum Lifting Capacity	250kg (Moving)
Minimum Working Height	485mm
Maximum Working Height	885mm
Table Width	710mm Standard (Optional 610mm & 660mm)
Table Length	1930mm
Cushioning	50mm Foam
Controller	Timotion Hand Switch
Base/Castor	Pinnacle with Castors
Backrest	Manually Adjustable -35º to +80º

All dimensions shown are nominal only.

Warranty

10 years structural on base and frame.
5 years electrical.
3 years upholstery.

Features

Three-section examination table for left and right patient examinations and procedures where space is limited.
Single-column motorised lift eliminates pinch and crush points so nothing can get trapped under the table during adjustment.
Each end section manually raises to +80° and lowers to -35°, providing a wider positioning range than a standard universal table.
New-generation column design suits multiple disciplines.
Medical-grade total lock castor wheels swivel 360 degrees and are durable and easy to maintain.
Powder coated steel frame.
High-quality anti-microbial vinyl and CFC-free foam meet hygiene standards.
Quality Dunlop upholstery foam.
Choice of colour and accessory options.
Australian designed and manufactured.

Specifications

Category	Detail
Brand	Healthtec
Weight	80 kg
Dimensions	2050 × 850 × 650 cm
Maximum Working Load	300kg (Stationary)
Maximum Lifting Capacity	250kg (Moving)
Minimum Working Height	485mm
Maximum Working Height	885mm
Table Width	710mm Standard (Optional 610mm & 660mm)
Table Length	1930mm
Cushioning	50mm Foam
Controller	Timotion Hand Switch
Base/Castor	Pinnacle with Castors
Backrest	Manually Adjustable -35º to +80º

All dimensions shown are nominal only.

Warranty

10 years structural on base and frame.
5 years electrical.
3 years upholstery.
