Waldmann TEVISIO Magnifier Luminaire

Waldmann - TEVISIO Magnifier Luminaire

Supplier: Surgical and Medical Supplies

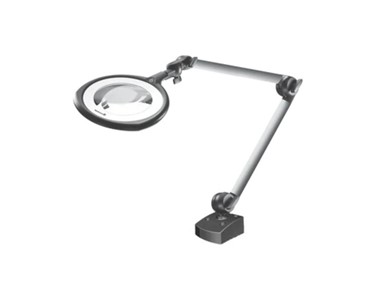

TEVISIO Magnifier Luminaire

The TEVISIO LED magnifier luminaire is designed for applications requiring precision visual tasks, providing ergonomic support with advanced LED lighting and an innovative flexible arm.

Exceptional lighting with ergonomic precision for demanding visual tasks.

Overview

TEVISIO is a magnifier luminaire essential in environments such as laboratories, electronics, metal-working, and watch-making industries. Its ergonomic design and optimal lighting support detailed visual work in manufacturing, assembly, quality assurance, or inspections.

Key Features

48 premium SMD LEDs for bright, uniform illumination
6,000 lux illuminance at only 14 watts
Up to 50,000+ hour LED lifespan — maintenance-free
Continuous dimming capability down to 10%
3-D shadow effects via switchable light segments (visualizer function)
Colour rendering index (CRI) of 90 (level 1A)
3.5 dioptre magnification, with optional accessory for up to 11.5 dioptres
Scratch-proof Ø 153 mm wide-angle glass lens for distortion-free vision
Adjustable, balanced arm design with six independent swivel joints
Sealed joints and protected internal cables
Durable anodised aluminium and high-performance plastic construction
Touch control panel for on/off, dimming, and visualizer functions

Arm and Flexibility

The TEVISIO offers a choice of two arm lengths, with an innovative arm system and flexible head joint that provides a large range of motion and precise, stable positioning. The arm is balanced for easy adjustment and a minimum life of 20,000 movement cycles.

Technical Specifications

LEDs	48
Power Consumption	14 W
Colour Temperature	4,000 K (neutral white)
Magnification	3.5 dioptre (optional 8-dioptre add-on)
Lens Diameter	153 mm
Arm Lengths Available	484 mm or 384 mm
Net Weight	Approx. 2.6 kg
Power Cord Length	Approx. 3.6 m
Input Voltage	100–240 V, 50/60 Hz
Classification	IP20, class II, double insulated

Construction and Cleaning

Ergonomic and wide distortion-free viewing field
Scratch-proof glass with sealed joints for easy cleaning and hygiene
Anodised aluminium with high-performance plastic

Optional Accessories

8-dioptre add-on lens (for higher magnification)
Mounting accessories (variety available)

To contact Surgical and Medical Supplies about Waldmann TEVISIO Magnifier Luminaire use Get a quote.

Overview

Key Features

48 premium SMD LEDs for bright, uniform illumination
6,000 lux illuminance at only 14 watts
Up to 50,000+ hour LED lifespan — maintenance-free
Continuous dimming capability down to 10%
3-D shadow effects via switchable light segments (visualizer function)
Colour rendering index (CRI) of 90 (level 1A)
3.5 dioptre magnification, with optional accessory for up to 11.5 dioptres
Scratch-proof Ø 153 mm wide-angle glass lens for distortion-free vision
Adjustable, balanced arm design with six independent swivel joints
Sealed joints and protected internal cables
Durable anodised aluminium and high-performance plastic construction
Touch control panel for on/off, dimming, and visualizer functions

Arm and Flexibility

Technical Specifications

LEDs	48
Power Consumption	14 W
Colour Temperature	4,000 K (neutral white)
Magnification	3.5 dioptre (optional 8-dioptre add-on)
Lens Diameter	153 mm
Arm Lengths Available	484 mm or 384 mm
Net Weight	Approx. 2.6 kg
Power Cord Length	Approx. 3.6 m
Input Voltage	100–240 V, 50/60 Hz
Classification	IP20, class II, double insulated

Construction and Cleaning

Ergonomic and wide distortion-free viewing field
Scratch-proof glass with sealed joints for easy cleaning and hygiene
Anodised aluminium with high-performance plastic

Optional Accessories

8-dioptre add-on lens (for higher magnification)
Mounting accessories (variety available)
