Magnifier Luminaire with LED Illumination ...

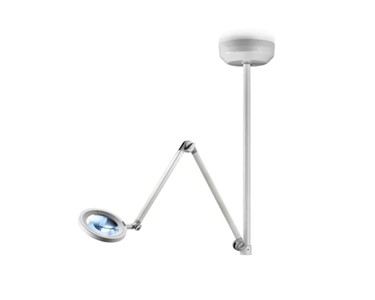

Magnifier Luminaire with LED Illumination & Wood Light Option

Supplier: Surgical and Medical Supplies

The Opticlux Magnifier Luminaire is a high-performance LED magnifier designed for precise diagnostics and examination in medical and laboratory environments.

Premium medical-grade magnifier with superior daylight LED illumination and high colour accuracy.

Key Features

LED magnifier luminaire with a large, scratch-resistant acrylic lens (Ø 160 mm; 3.5 dioptres / 1.9x magnification)
Daylight-quality illumination at 6,000 lux (at 0.15 m)
Continuously dimmable with easy-to-clean, intuitive keypad located on the luminaire head
Excellent colour rendering: CRI/Ra > 93, R9 > 90, R13 > 95 – enables reliable visual differentiation of skin tones and veins
Spring-balanced arm and friction joints for ergonomic, stable and flexible positioning; reach up to 142 cm
Energy-efficient, maintenance-free LED technology (12 W power consumption)
Optional integrated Wood light (365 nm UV-A) for fluorescence diagnostics in dermatology and related fields
Certified as an EN 60601-1 medical device, suitable for use in dermatology, medicine, dentistry, veterinary medicine, laboratories, and for inspecting sterilised goods
Multiple mounting options: ceiling, wall, table clamp, rail, roller stand; can be adapted to suit room requirements

Specifications

Lens Size	Ø 160 mm
Magnification / Dioptres	1.9x / 3.5 dpt
Illumination	6,000 lux at 15 cm, daylight white 6,500 K
CRI (Ra)	> 93 (R9 > 90; R13 > 95)
Mounting Options	Ceiling, wall, table, rail, roller stand
Arm Reach	up to 142 cm radius
Weight	2 kg (wall mount), 9.1 kg (ceiling/stand)
Connected Load	100–240 V AC, 50/60 Hz; 1.8 m AU lead
Energy Efficiency	A+
Protection System	IP20
Certification	EN 60601-1, EN 60601-2-41 Medical Device
Special Features	Continuously dimmable, scratch-proof lens, Wood’s lamp versions available, 360° rotation, lens cover included

Applications

Dermatology and fluorescence diagnostics
General medicine, dental and veterinary use
Laboratory analysis and quality control
Inspections of sterilised and sensitive goods

Accessories Available

Extension arms, roller stands, table clamps, wall brackets, rail mounting for diverse installation requirements
Custom-fit lens cover (included)

To contact Surgical and Medical Supplies about Magnifier Luminaire with LED Illumination & Wood Light Option use Get a quote.

Key Features

LED magnifier luminaire with a large, scratch-resistant acrylic lens (Ø 160 mm; 3.5 dioptres / 1.9x magnification)
Daylight-quality illumination at 6,000 lux (at 0.15 m)
Continuously dimmable with easy-to-clean, intuitive keypad located on the luminaire head
Excellent colour rendering: CRI/Ra > 93, R9 > 90, R13 > 95 – enables reliable visual differentiation of skin tones and veins
Spring-balanced arm and friction joints for ergonomic, stable and flexible positioning; reach up to 142 cm
Energy-efficient, maintenance-free LED technology (12 W power consumption)
Optional integrated Wood light (365 nm UV-A) for fluorescence diagnostics in dermatology and related fields
Certified as an EN 60601-1 medical device, suitable for use in dermatology, medicine, dentistry, veterinary medicine, laboratories, and for inspecting sterilised goods
Multiple mounting options: ceiling, wall, table clamp, rail, roller stand; can be adapted to suit room requirements

Specifications

Lens Size	Ø 160 mm
Magnification / Dioptres	1.9x / 3.5 dpt
Illumination	6,000 lux at 15 cm, daylight white 6,500 K
CRI (Ra)	> 93 (R9 > 90; R13 > 95)
Mounting Options	Ceiling, wall, table, rail, roller stand
Arm Reach	up to 142 cm radius
Weight	2 kg (wall mount), 9.1 kg (ceiling/stand)
Connected Load	100–240 V AC, 50/60 Hz; 1.8 m AU lead
Energy Efficiency	A+
Protection System	IP20
Certification	EN 60601-1, EN 60601-2-41 Medical Device
Special Features	Continuously dimmable, scratch-proof lens, Wood’s lamp versions available, 360° rotation, lens cover included

Applications

Dermatology and fluorescence diagnostics
General medicine, dental and veterinary use
Laboratory analysis and quality control
Inspections of sterilised and sensitive goods

Accessories Available

Extension arms, roller stands, table clamps, wall brackets, rail mounting for diverse installation requirements
Custom-fit lens cover (included)

Read less...

To contact Surgical and Medical Supplies about Magnifier Luminaire with LED Illumination & Wood Light Option use Get a quote.
