ABCO Health Care - ABCO Dual Action Tilt Table Price Guide: $6,901

Supplier: Core Clinical

ABCO Dual Action Tilt Table

1/3

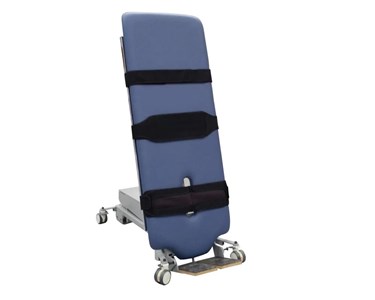

The ABCO Dual Action Tilt Table is an Australian-made, single-section rehabilitation table with full tilt-to-walk functionality, twin-column electric lift and an optional electric backrest.

Full tilt-to-walk functionality

In Stock

Features

Designed and manufactured in Australia, building on a model available since 1997.
Supports standing or flat positioning without a backrest; optional electric backrest adds seated positioning.
Twin-column lift provides height adjustment without lengthwise movement, with fewer moving parts where hands or limbs could be crushed.
Hand-controlled working height assists carers with transfers from a wheelchair, bed or hoist.
Long leg-area cut-out allows individual leg strapping; three patient straps included.
Adjustable angle twin foot plates support walking on and off where appropriate.
Fast or slow tilting with ‘soft-stops’ and angle indicators on both sides.

Specifications

Category	Detail
SKU	TD200.07021.C0E00H0.005P1
Number of Upholstery Sections	1
Height Adjustment Control	Hand control
Height Adjustment Lift Operation	Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Maximum Lifting Capacity	350kg Dynamic / 700kg Static
Table Tilt Function	Twin Electric actuator adjustment 0° / +85°
Tilting Capacity	200kg

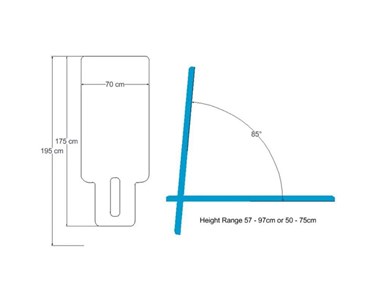

Height Adjustment Range	590 - 990mm
Overall Length	1950mm
Overall Upholstery Width	710mm
Upholstery Adjustment	Table Tilts -0° / +85°; Independently adjustable angle twin foot plates (+30° / -30° in 13 steps)
Frame Material	Heavy steel plate and tube
Frame Colour	Light Grey
Wheel System	125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Upholstery Fabric	Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Upholstery Foam	38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
Upholstery Colours	Wedgewood, Other colours on request
Electrical Approvals	Medically approved according to EN60601-1 / AS3200
Electrical Requirements Supply	230vAC ±10°, 50hz max 3.0amp
Electrical Requirements Operation	24vDC max 70VA Battery back-up
Shipping Dimensions	197 x 82 x 65cm / 95kg. Shrinkwrapped on a wooden pallet
Weight	90kg
Total Main Body Sections	1
ARTG	123573
Warranty	5 years, parts only

Additional stated operating figures

The product information gives different figures from some specifications above:

Parameter	Stated value
Table top tilt	80 degrees
Clearance below the frame	155mm
Standard height range	520 to 750mm
Maximum working height	750 or 990mm
Lifting capacity	over 350kg
Optional tilting capacity	over 350kg
Standard tilting capacity and time	200kg at 30 seconds
Stronger/Faster option capacity and time	350kg at 12 seconds

Optional add-ons

Tilt Table Backrest: electrically operated for patient comfort; automatically returns to flat as tilt exceeds 30°.
Stronger/Faster upgrade: increases tilting capacity and speed.
Linak Double Foot Control Assembly - Flat Plug: hands-free control, foot switch control box, left and right foot pedals; flat connector component with attached cable, code FSE019-00 and / or 10622.
ABCO FS3 Foot Control 3 Function: suits 3 function Linak tables and chairs; can provide adjustment from both sides. Base code 10616/3.
ABCO Split Strap Set: durable vinyl with velcro adjustments (95-140cm) for independent leg strapping.
ABCO Adjustable Work Surface: 710mm wide tray table, easily adjustable and installable on-site.
ABCO Torso Wedge: adjustable lateral supports to enhance patient alignment, easily installed on-site; available per side.

Features

Designed and manufactured in Australia, building on a model available since 1997.
Supports standing or flat positioning without a backrest; optional electric backrest adds seated positioning.
Twin-column lift provides height adjustment without lengthwise movement, with fewer moving parts where hands or limbs could be crushed.
Hand-controlled working height assists carers with transfers from a wheelchair, bed or hoist.
Long leg-area cut-out allows individual leg strapping; three patient straps included.
Adjustable angle twin foot plates support walking on and off where appropriate.
Fast or slow tilting with ‘soft-stops’ and angle indicators on both sides.

Specifications

Category	Detail
SKU	TD200.07021.C0E00H0.005P1
Number of Upholstery Sections	1
Height Adjustment Control	Hand control
Height Adjustment Lift Operation	Twin electric column for extra strength and safety with no longitudinal shift as height adjusts
Maximum Lifting Capacity	350kg Dynamic / 700kg Static
Table Tilt Function	Twin Electric actuator adjustment 0° / +85°
Tilting Capacity	200kg
Height Adjustment Range	590 - 990mm
Overall Length	1950mm
Overall Upholstery Width	710mm
Upholstery Adjustment	Table Tilts -0° / +85°; Independently adjustable angle twin foot plates (+30° / -30° in 13 steps)
Frame Material	Heavy steel plate and tube
Frame Colour	Light Grey
Wheel System	125mm lockable castors, one with tracking lock for easy movement. 150mm clearance below frame for hoist access.
Upholstery Fabric	Medical grade heavy duty vinyl fabric. Formulated to inhibit hardening and breakdown of the PVC surface due to perspiration and oils. Light fast, fire retardant, sanitised and stain resistant.
Upholstery Foam	38mm high density foam rolled over the edges of the strong plywood base covered with 12mm of soft foam for enhanced comfort while providing a full working width and extended life
Upholstery Colours	Wedgewood, Other colours on request
Electrical Approvals	Medically approved according to EN60601-1 / AS3200
Electrical Requirements Supply	230vAC ±10°, 50hz max 3.0amp
Electrical Requirements Operation	24vDC max 70VA Battery back-up
Shipping Dimensions	197 x 82 x 65cm / 95kg. Shrinkwrapped on a wooden pallet
Weight	90kg
Total Main Body Sections	1
ARTG	123573
Warranty	5 years, parts only

Additional stated operating figures

The product information gives different figures from some specifications above:

Parameter	Stated value
Table top tilt	80 degrees
Clearance below the frame	155mm
Standard height range	520 to 750mm
Maximum working height	750 or 990mm
Lifting capacity	over 350kg
Optional tilting capacity	over 350kg
Standard tilting capacity and time	200kg at 30 seconds
Stronger/Faster option capacity and time	350kg at 12 seconds

Optional add-ons

Tilt Table Backrest: electrically operated for patient comfort; automatically returns to flat as tilt exceeds 30°.
Stronger/Faster upgrade: increases tilting capacity and speed.
Linak Double Foot Control Assembly - Flat Plug: hands-free control, foot switch control box, left and right foot pedals; flat connector component with attached cable, code FSE019-00 and / or 10622.
ABCO FS3 Foot Control 3 Function: suits 3 function Linak tables and chairs; can provide adjustment from both sides. Base code 10616/3.
ABCO Split Strap Set: durable vinyl with velcro adjustments (95-140cm) for independent leg strapping.
ABCO Adjustable Work Surface: 710mm wide tray table, easily adjustable and installable on-site.
ABCO Torso Wedge: adjustable lateral supports to enhance patient alignment, easily installed on-site; available per side.

Read less...
