BBL Protect - AeroPod 15 Personal Isolation Device

Supplier: Midmed

AeroPod 15 Personal Isolation Device

1/6

The AeroPod 15 is a rapid-deployment personal isolation device designed for secure patient transport, ensuring both containment and protection.

Deploys in under 90 seconds for rapid response.

Receive 1-3 days from order

Overview

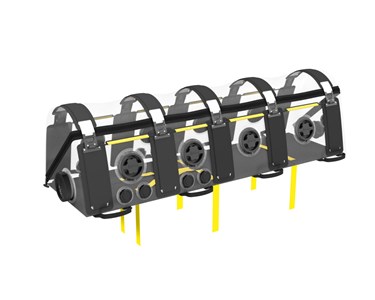

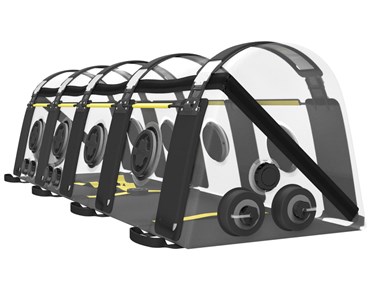

The AeroPod 15 Personal Isolation Device is a cutting-edge solution for transporting infectious or immunocompromised patients. Designed for ground transport, it ensures that vehicles remain operational without the need for decontamination. This device is compatible with any stretcher and can be deployed in under 90 seconds, offering both positive and negative pressure environments.

Key Features

Rapid Deployment: Assembles in under 90 seconds, allowing for quick response in emergency situations.
Dual Pressure Modes: Offers both negative pressure to contain infectious patients and positive pressure to protect immunocompromised individuals.

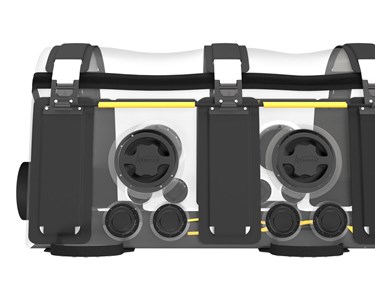

Comprehensive Access: Features eight glove ports for hands-on access and nine connector ports for IV lines and monitoring cables.
Advanced Filtration: Equipped with CleanAir 2F respirator and dual HEPA P3 filters, ensuring 99.99% filtration efficiency.
Extended Battery Life: Provides up to ten hours of continuous use with a rechargeable lithium-ion battery.
Durable Construction: Made from engineered plastics that resist heat, chemicals, and scratches, ensuring longevity and reliability.

Technical Specifications

The AeroPod 15 is meticulously designed to meet the highest standards of safety and functionality.

Specification	Details
Outer Dimensions	1902.5 mm L x 550 mm W x 523 mm H
Maximum Patient Weight	150 kg
Maximum Patient Length	198 cm
Operating Temperature	0 to 40 degrees Celsius
Material Operating Temperature	-60 to 175 degrees Celsius

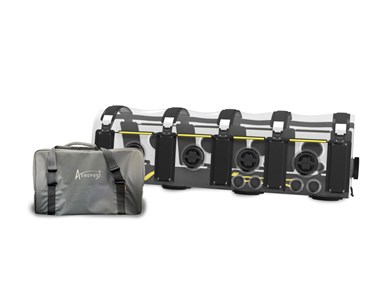

Weight	Under 16.5 kg including carry bag
Deployment	Under 90 seconds
Patient Restraint	Aviation standard quick release four point torso and hip restraint, shoulder straps, lower leg strap
Access Ports	8, for gloves, waste bag or sluice bag configurations
Connector Ports	9, cut and seal cones, maximum 46.4 mm opening

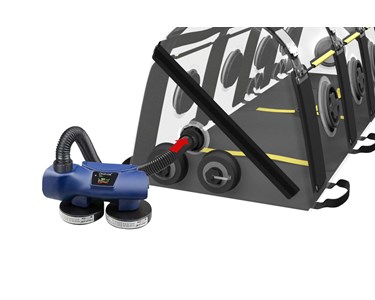

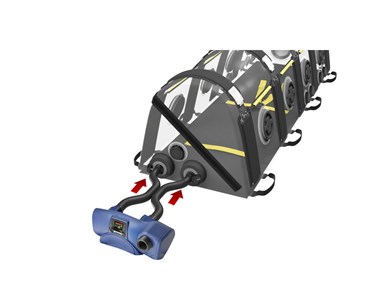

Blower Unit	CleanAir Chemical 2F air purifying respirator
Airflow	Adjustable, 120 to 235 litres per minute
Air Exchanges	More than 15 per hour
Operating Pressure	Minimum 21 Pa positive or negative, relative to the environment
Filtration	Dual HEPA P3 particle filters, 99.99 per cent effective
Battery	Rechargeable lithium ion, 14.4 V, 2.6 Ah
Battery Life	Up to 10 hours continuous, approximately 3 hours to charge
Alarms	High resistance, low output or flow, low battery
Respirator Testing	EN 12941 TH2 and TH3, EN 12942 TM2 and TM3, IP65
Reuse	Up to 25 uses
Structure	Engineered plastics, heat, chemical and scratch resistant

Applications

Ideal for hospital-to-hospital transfers and ambulance services, the AeroPod 15 is intended for use by trained healthcare professionals and first responders. It significantly reduces the risk of infection and contamination during patient transport.

Training and Support

Midmed offers comprehensive training for the AeroPod 15, ensuring that users are well-prepared to operate the device safely and effectively. Support for in-house policies and procedures is also available.

Overview

Key Features

Rapid Deployment: Assembles in under 90 seconds, allowing for quick response in emergency situations.
Dual Pressure Modes: Offers both negative pressure to contain infectious patients and positive pressure to protect immunocompromised individuals.
Comprehensive Access: Features eight glove ports for hands-on access and nine connector ports for IV lines and monitoring cables.
Advanced Filtration: Equipped with CleanAir 2F respirator and dual HEPA P3 filters, ensuring 99.99% filtration efficiency.
Extended Battery Life: Provides up to ten hours of continuous use with a rechargeable lithium-ion battery.
Durable Construction: Made from engineered plastics that resist heat, chemicals, and scratches, ensuring longevity and reliability.

Technical Specifications

The AeroPod 15 is meticulously designed to meet the highest standards of safety and functionality.

Specification	Details
Outer Dimensions	1902.5 mm L x 550 mm W x 523 mm H
Maximum Patient Weight	150 kg
Maximum Patient Length	198 cm
Operating Temperature	0 to 40 degrees Celsius
Material Operating Temperature	-60 to 175 degrees Celsius
Weight	Under 16.5 kg including carry bag
Deployment	Under 90 seconds
Patient Restraint	Aviation standard quick release four point torso and hip restraint, shoulder straps, lower leg strap
Access Ports	8, for gloves, waste bag or sluice bag configurations
Connector Ports	9, cut and seal cones, maximum 46.4 mm opening
Blower Unit	CleanAir Chemical 2F air purifying respirator
Airflow	Adjustable, 120 to 235 litres per minute
Air Exchanges	More than 15 per hour
Operating Pressure	Minimum 21 Pa positive or negative, relative to the environment
Filtration	Dual HEPA P3 particle filters, 99.99 per cent effective
Battery	Rechargeable lithium ion, 14.4 V, 2.6 Ah
Battery Life	Up to 10 hours continuous, approximately 3 hours to charge
Alarms	High resistance, low output or flow, low battery
Respirator Testing	EN 12941 TH2 and TH3, EN 12942 TM2 and TM3, IP65
Reuse	Up to 25 uses
Structure	Engineered plastics, heat, chemical and scratch resistant

Applications

Training and Support
