C10TX-PRO Dual Head Convex & Linear Hand-Held Ultrasound Price Guide: $4,295 Get latest price

Read more...

To contact InterAktiv Health about C10TX-PRO Dual Head Convex & Linear Hand-Held Ultrasound use Get a quote.

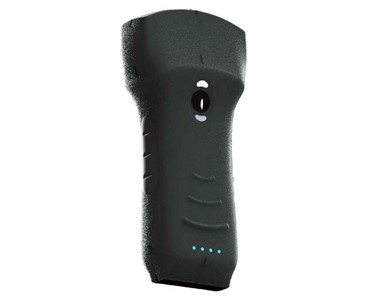

The C10TX-Pro Dual Head Convex & Linear + Cardiac Wireless Hand-Held Ultrasound is an ideal tool for healthcare professionals seeking advanced imaging technology. Equipped with dual heads, Wi-Fi connectivity, and compatibility with smartphones, it offers both linear and convex probes to cover diverse diagnostic needs. Enhance your workflow with this state-of-the-art portable ultrasound system.

C10TX-Pro Dual Head B&W+Colour Doppler Hand Held Ultrasound Probe

Experience the convenience and versatility of the C10TX-Pro Dual Head Convex & Linear Wireless Hand Held Ultrasound Machine by InterAktiv-Scan. Utilising both linear array and convex phased array ultrasound heads, this portable machine offers both black and white as well as colour doppler applications. Use with USB or wireless connection for optimal use.

Combining Linear array with a Convex ,Phased array Ultrasound heads into one portable hand held ultrasound machine offering B&W and Colour Doppler applications.

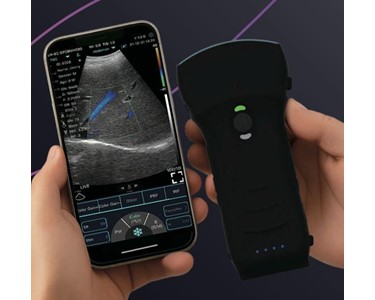

Light weight, fast boot time compatible with your own iOS, Android or Windows devices creates a go anywhere diagnostic tool and can be connected using either USB cables or Wi-Fi connection. Store patient data, record measurement, share files and images. Can be used across multiple devices with the ease of App software, no subscriptions or licence fees. Supports charging while working.

Applications: Linear array mode : MSK( Musculoskeletal), Orthopaedics, Vascular, Paediatrics, Sports medicine, anaesthesia , injection , Puncture , nerves, Point of care, Womens Health, Bladder Volume, Physiotherapy, Ultrasound guided procedures, Veterinary and among other medical fields.

Presets: Abdomen, Gynaecology, Obstetric, Cardiac, Urology, Kidney, Lung, Thyroid, Small parts, Paediatric, Vascular, Carotid, Breast, MSK, Nerve

 C10TX-Pro Dual Head Portable Ultrasound Specification:

• Scanning mode: Electronic array
• Display mode: B, B+M, B+B, colour, PW, PDI, B+Colour+PW
• B+Colour+PW Triplex display ( Linear only)
• Convex R60 array mode: 3.2/5.0mhz, Scan angle 45 Deg Scan Depth: 90-305mm
• Linear L34 array mode: 7.5/10.0mhz, Scan depth: 20-100mm
• Cardiac mode: 2.5/5.0mhz, Scan Angle 80 Deg, Scan Depth: 90-160mm
• 192 Element, 64 Channel
• Frame Rate: 24 fps.
• Grey Scale Image: 256 level
• Gain: 40-110dB
• 2 x builtin Batteries: working time: >4 hours, Standby >72 Hours- support charging while working.
• IP68 level waterproof case.
• Recharge Time: 3~4 hours (Wireless or Type-C USB)
• Dimension: 125(h)x59(w)x31(d) mm
• Weight: 193g
• Wifi type: 802.11g/20MHz/5G/1450Mbps
• Image Storage: JPeg,MP4, DICOM
• Cine loop: Auto/100, 200, 500 & 1000 play back frames
• System Compatibility: Apple iOS ( Vs 11.0+), Android 14 or later & Windows 10
• Device connection: Wi-Fi or USB-c
• Internal 5G Wi-Fi network ( no external network required)
• USB-C connection: Android & Windows 10
• 360 degree waterproof, can be used directly underwater.

Read less...
