Endoscopy Stretcher - VSM-10E

Specifically designed for endoscopy and pain management, this stretcher features a sliding top to allow patient movement while keeping imaging equipment in place.

Sliding top enables patient movement without repositioning imaging equipment.

Purpose & Functionality

The Endoscopy Stretcher is engineered to keep semi-anaesthetised patients safer and take the strain off care teams during procedures. Its unique sliding top enables patient repositioning without moving the C-Arm X-ray camera, while a slim, low-profile base provides excellent clearance for imaging.

Key Features

Unique sliding top: Repositions the patient while the C-Arm remains steady.
Low-profile base: Facilitates optimal access and camera clearance for procedures.
Twin drop sides: Fold independently for unobstructed, safe access.
Robust construction: Premium durable components for everyday, all-day use.
Leading weight capacity: Twin square column design supports up to 400 kg (patient & accessories).
Powered battery system: Long-life, cordless, and fast-charging for uninterrupted operation.
Hygienic design: Smooth, gap-free platform for easy cleaning and high infection control.
Versatile application: Ideal for Endoscopy, Colonoscopy, and Pain Management procedures.

Specifications

Overall Size	2200 mm long × 900 mm wide
Mattress Size	1950 mm long × 780 mm wide
Mattress Construction	110 mm multi-layer, welded pressure-relieving cover
Height Range	460 mm – 840 mm (optional maximum: +100 mm)
Dropside Size	330 mm high × 1270 mm long
Safe Working Load (SWL)	400 kg

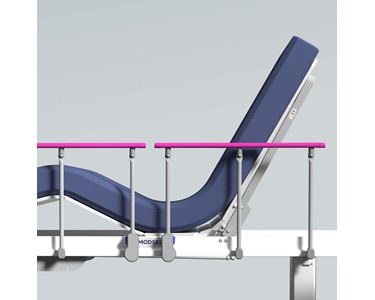

Backrest	0–85° (with CPR emergency quick release)
Knee Break	Up to 30° (140 mm raise height)
Castors	Precision 150 mm twin wheel with 4-wheel braking & centre steering
Trendelenburg	15° (head and foot down)
Wheelbase	670 mm wide × 1360 mm long
Undercarriage Clearance	140 mm
Imaging Camera Clearance	200 mm (floor to top of base); 1050 mm between columns; 740 mm to underside of raised top (option +100 mm extra height)
Sliding Top Movement	350 mm (total coverage: 1430 mm long × 600 mm wide)
Product Code	VSM-10E (Electric)
