Thermo Scientific Element GD Plus GD-MS

Thermo Scientific - Element GD Plus GD-MS

Supplier: Thermo Fisher Scientific Australia Pty Ltd

Element GD Plus GD-MS

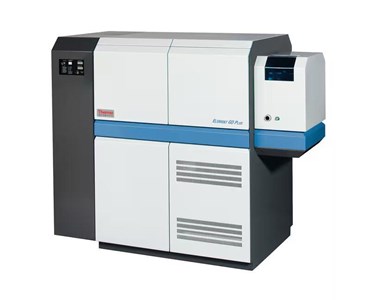

The Element GD Plus GD-MS is a high-resolution glow discharge mass spectrometer designed for the direct analysis of conductive and non-conductive materials with extreme sensitivity.

Unmatched sensitivity and ultra-low detection limits down to sub-ppb levels for direct solid analysis.

The Element GD Plus GD-MS features a glow discharge ion source paired with a high-resolution mass spectrometer, offering direct and accurate analysis of solid materials. It is engineered for rapid throughput and ultra-low detection limits, making it ideal for both routine and research applications on metals, alloys, ceramics, and more.

Overview

Key Features

Suitable for direct analysis of both conductive and many non-conductive solid materials.
Measures virtually all periodic table elements with high sensitivity and reliability.
Dynamic range exceeding 12 orders of magnitude, with automatic cross-calibration of detection modes.
Minimal sample preparation: no digestion or acid cleaning necessary for many sample types.
Pulsed, fast-flow glow discharge ion source for higher sputter rates and reduced polyatomic interferences.
Three fixed resolution modes (=300, =4,000, =10,000) for flexible analyses.
Supports high sample throughput (up to 5 samples per hour) with easy source maintenance.
Enables depth profiling from nanometres to hundreds of micrometres, ideal for coatings & diffusion studies.
Suitable for a variety of applications: aerospace alloys, microelectronics, renewable energy materials, medical and food-grade alloys.
No need for calibration standards due to the use of the standard REF (relative sensitivity factors) approach.
Optional CNO detection down to sub-ppm levels without sacrificing throughput.

Specifications

Dynamic Range	> 10¹² linear (with automatic cross-calibration)
Mass Resolution	3 fixed: =300, =4,000, =10,000
Mass Stability	25 ppm / 8 h
Sensitivity	> 1 x 10¹⁰ cps (1.6 x 10?? A) for copper peak at medium resolution
Power Requirements	3-phase, 230/400 V ± 10 %, 50/60 Hz, 32 A per phase
Type	GD-Mass Spectrometer
Unit Size	Each

Applications

Aerospace: Nickel superalloys, composites, diffusion profiling.
Microelectronics: Copper, aluminium oxide powders, sputter targets.
Renewable energy: Silicon blocks, wafers, solar cells.
Medical/Pharmaceutical/Food: Stainless steel, metal alloys.

Advantages

Interference-free measurements with simple linear calibration curves.
Flexible analysis with high mass resolution and robust, stable performance.
Low cost per analysis due to high throughput and reduced sample preparation requirements.
Unmatched signal-to-noise for sub-ppb detection limits.
Minimal influence from matrix signals due to filter lens design.

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Element GD Plus GD-MS use Get a quote.

Overview

Key Features

Suitable for direct analysis of both conductive and many non-conductive solid materials.
Measures virtually all periodic table elements with high sensitivity and reliability.
Dynamic range exceeding 12 orders of magnitude, with automatic cross-calibration of detection modes.
Minimal sample preparation: no digestion or acid cleaning necessary for many sample types.
Pulsed, fast-flow glow discharge ion source for higher sputter rates and reduced polyatomic interferences.
Three fixed resolution modes (=300, =4,000, =10,000) for flexible analyses.
Supports high sample throughput (up to 5 samples per hour) with easy source maintenance.
Enables depth profiling from nanometres to hundreds of micrometres, ideal for coatings & diffusion studies.
Suitable for a variety of applications: aerospace alloys, microelectronics, renewable energy materials, medical and food-grade alloys.
No need for calibration standards due to the use of the standard REF (relative sensitivity factors) approach.
Optional CNO detection down to sub-ppm levels without sacrificing throughput.

Specifications

Dynamic Range	> 10¹² linear (with automatic cross-calibration)
Mass Resolution	3 fixed: =300, =4,000, =10,000
Mass Stability	25 ppm / 8 h
Sensitivity	> 1 x 10¹⁰ cps (1.6 x 10?? A) for copper peak at medium resolution
Power Requirements	3-phase, 230/400 V ± 10 %, 50/60 Hz, 32 A per phase
Type	GD-Mass Spectrometer
Unit Size	Each

Applications

Aerospace: Nickel superalloys, composites, diffusion profiling.
Microelectronics: Copper, aluminium oxide powders, sputter targets.
Renewable energy: Silicon blocks, wafers, solar cells.
Medical/Pharmaceutical/Food: Stainless steel, metal alloys.

Advantages

Interference-free measurements with simple linear calibration curves.
Flexible analysis with high mass resolution and robust, stable performance.
Low cost per analysis due to high throughput and reduced sample preparation requirements.
Unmatched signal-to-noise for sub-ppb detection limits.
Minimal influence from matrix signals due to filter lens design.

Read less...

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Element GD Plus GD-MS use Get a quote.
