Intelligent. Acclaimed technology.

The intraoral scanner designed for an effortless scanning experience, next-level ergonomics, and improved hygiene.

This is the scanner that sets a new standard in patient protection and infection control. It is not only hygienic by design, but also smaller, lighter and designed to fit perfectly in every hand. On top of that, it comes with our new ScanAssist engine for perfect scan results and TRIOS share, for ultimate connectivity. Simply hygienic. Simply ergonomic. Simply TRIOS 5!

Effortless scanning

Calibration free
The scanner is calibration free, meaning you don't need to calibrate after a certain number of scans. It's always ready to use.

LED to indicate readiness
An LED ring on the scanner indicates the status of the scanner: it tells you when it's connected, low on battery, or the tip is ready, for example. You'll know if you are scan-ready with just a glance.

Smart haptic feedback
Switching focus between patient and screen can be distracting. That's why the scanner uses haptics - a subtle vibration - to give you feedback.

Remote control button
Use your scanner as a remote control. Point to the screen and use the button to select your next step or rotate the 3D model. There's no longer the need to touch (and clean) the mouse.

Minimise patient cross-contamination
An ultra-thin, snug and near invisible TRIOS sleeve minimises the risk of patient cross-contamination. It's one-time use - you put it on, scan and take it off.  Inside the scanner, you'll find a mirror. No dust or dirt can enter and affect the optics performance of the scanner.

Indications for Use
TRIOS 5 digital images are indicated for use in:

• Restorations
• Orthodontics
• Implantology
• Assessment of dental status

New Innovations
TRIOS 5 brings the following innovations.

• 30% smaller and 20% lighter compared to TRIOS 4
• ScanAssist, providing easier scanning independent of scan strategy
• Improved battery technology, requiring only one battery per day
• Calibration free scanner
• LED ring and haptic feedback for better use guidance
• Two-button design for improved software navigation and scan analysis
• Body sleeves to reduce risk of patient cross-contamination
• Closed tip design to avoid patient cross contamination
• Scanner body has been designed for cleaning and disinfection

Setup Options

Pod or MOVE+
Depending on the way you intend to use the impression scanner, you can choose a setup with a pod and computer, or a MOVE+ cart setup with a built-in computer and adjustable screen.

Scanner Specs

TRIOS accuracy
Proven clinical accuracy: backed by a multitude of independent scientific studies for a wide variety of workflows.

Light and Output
TRIOS 5 captures 2,400 images per second, uses LED as a light source and outputs PLY, DCM and STL files

Dimensions and use
TRIOS 5 is 3Shape's smallest at 3.8cm (H) x 3.7cm (W) x 26.6cm (L), and lightest at 299g (including battery) scanner to date.

Wireless comfort

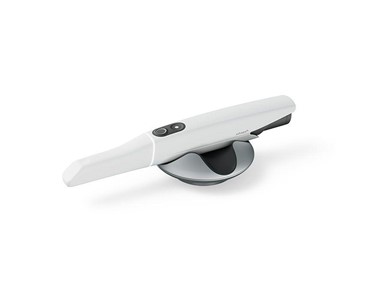

The scanner is wireless and can be placed on an 11cm pod when not in use.

• 3x rechargeable batteries
• Scanning time: up to 66 minutes of continuous scanning, dependent on scanner usage
• Charging time: battery takes less than 2 hours to get fully charged
• Wireless range: The 5GHz wireless connection link lets you cover a distance of up to 15m

PC Requirements

TRIOS computer
Included in your order, you will get a 3Shape approved, preconfigured computer with TRIOS software installed. The pod scan setup comes with either a laptop or desktop computer, whereas the MOVE+ comes with a built-in desktop. All computers ruin on Windows 11 pro.

Other computers
For a CAD/CAM solution that does not require TRIOS scanning, you can select a PC according to the Minimum PC requirements for 3Shape Software packages.

Ethernet connection
Another important element of your solution is your ethernet speed. All communication with labs, partners and servers will happen through tour ethernet connection., The faster the network, the faster you can send and receive an order. A typical TRIOS order of 30Mb will take approx. 30 seconds to transmit on a 10Mbit/s line.
