Excellent Radiographic Imaging at an Economical Price

The Any-Vet series from Ecotron is a perfect solution for your radiographic needs.

With a 4-Way Floating Top Table and an advanced high frequency generator, the Any-Vet-R X-ray system is designed to assist vets in speeding up their work process to its full potential. Typically with 4 or more times the mA compared to portable generators on a stand or over a table, this generator and table has the ability to reduce your x-ray time to 1/4 or the portable machines, leading to better image quality and less movement artefacts.

Key Features:
- 32kW or 40kW X-Ray Generator
- Power Supply Unit for operation off 10A or 15A General Purpose Outlets for the model with the PSU

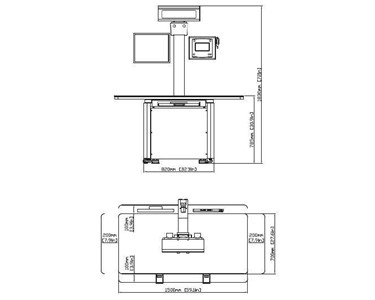

- Table Top Dimensions: 1500 x 700 x 785mm
- Longitudinal Travel: 400mm  (± 200mm from centre)
- Transverse Travel: 200mm (± 100mm from centre)
- Control Method: Footswitch with electromagnets
- Optional Grid 17x17" (contact us specifications of the grid you require)
- No floor fixings required

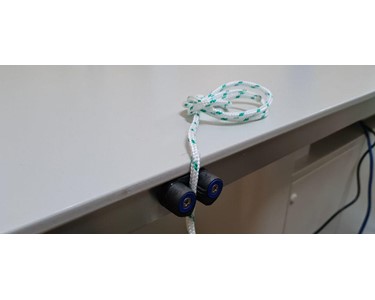

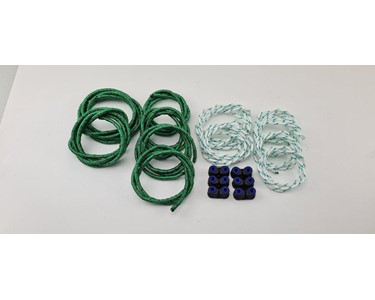

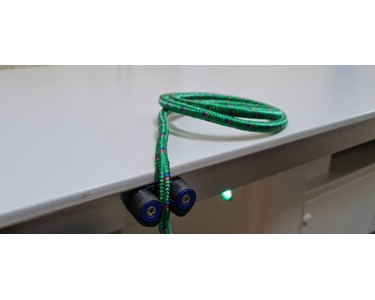

- Animal Tiedown kit
- Weight: 120kg (excluding x-ray generator)
- 160kg Animal Weight Rating

Pair this up with one of our GoDR systems listed below and you have the perfect partner!

Specifications

X-Ray Tube
- Max 125kV
- Max 400mA
- Focal Spot: 1.0/2.0mm or 0.6/1.5mm

Collimator
- LED Collimator Lamp

Monitor
- 19" Display
- Acquired images are Displayed

Console
- Easy Operation
- 3,00 Anatomical programs

Table
- 4-Way Float Top Table
- Designed for Veterinary
- 160kg Animal Weight Rating

Advanced High Frequency Generator
- Single Phase
- Output Power 32kW or 40kW
- Inside Table Base
- Easy Install and Easy Maintenance

Table
- 4-Way Floating Table Top
- Table Top Dimensions: 1500 x 700 x 785mm
- Longitudinal Travel: 400mm  (± 200mm from centre)
- Transverse Travel: 200mm (± 100mm from centre)
- Control Method: Footswitch with electromagnets
- 160kg Animal Weight Rating

Image Field Size 17x17" or 14x17"
- High spatial resolution with 100 Micron pixel array (subject to detector model and size selected)
- Stable and reliable automatic exposure detection
- Viewer software running on windows OS
- Communication interface through Gigabyte Ethernet
- Simple and easy integration with all kinds of digital radiography systems
