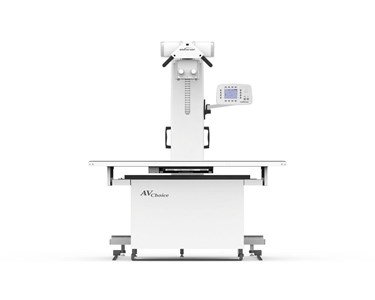

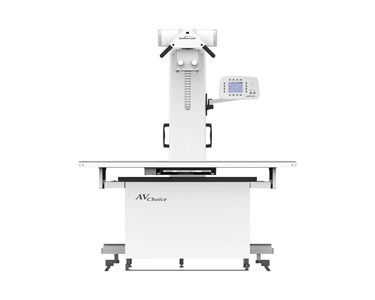

The Universal Veterinary System provides veterinary imaging with an angulating tube arm, 2-way or 4-way float-top table and fixed or variable SID tube stand configurations.

Features

Comprehensive veterinary imaging system designed for efficiency and cost-effectiveness in diverse clinical settings.

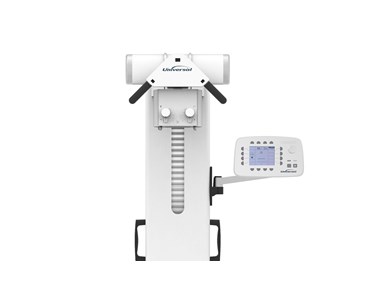

Angulating tube arm with a choice of 2-way or 4-way float-top table.
Fixed or variable SID tube stand configurations. The variable option provides a greater range of motion for enhanced patient positioning.
Urine trap perimeters manage fluids during procedures, contributing to a hygienic imaging environment.
Compact footprint and spacious patient-positioning surface allow precise adjustments for various imaging needs.

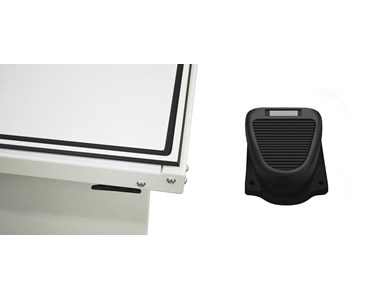

Foot-activated table top release strips enable hands-free operation, enhancing procedural efficiency and allowing veterinarians to focus on patient care without manual adjustments.

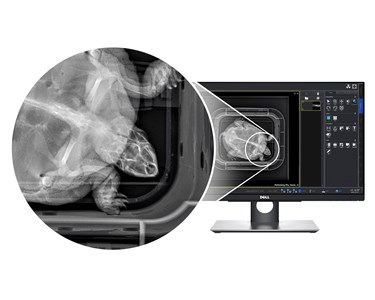

Vieworks VXView image acquisition software produces images with exceptional clarity and resolution, including for the smallest animal anatomy.

Specifications

Specification	Value
Patient Load Capacity	400 lbs (181 kg)
Tabletop Length (Stationary / 2-way Float)	56 in (142 cm)
Tabletop Width (Stationary / 2-way Float)	28 in (71 cm)
Tabletop Length (4-way Float)	68.5 in (174 cm)
Tabletop Width (4-way Float)	31.5 in (79 cm)
Tabletop Height	34.75 in (89 cm)
Tube Stand Height	Fixed: 77 in (196 cm) Variable: 83 in (211 cm)
System Depth	38.5 in (98 cm)
Tube Head Angulation	±45°
Table Voltage	24 VDC

Footprint

Fixed and 2-way float-top table: 38.5 x 56 in (99 x 143 cm).
With a 4-way float-top table: 38.5 x 68.5 in (98 x 174 cm).

Features

Comprehensive veterinary imaging system designed for efficiency and cost-effectiveness in diverse clinical settings.
Angulating tube arm with a choice of 2-way or 4-way float-top table.
Fixed or variable SID tube stand configurations. The variable option provides a greater range of motion for enhanced patient positioning.
Urine trap perimeters manage fluids during procedures, contributing to a hygienic imaging environment.
Compact footprint and spacious patient-positioning surface allow precise adjustments for various imaging needs.
Foot-activated table top release strips enable hands-free operation, enhancing procedural efficiency and allowing veterinarians to focus on patient care without manual adjustments.
Vieworks VXView image acquisition software produces images with exceptional clarity and resolution, including for the smallest animal anatomy.

Specifications

Specification	Value
Patient Load Capacity	400 lbs (181 kg)
Tabletop Length (Stationary / 2-way Float)	56 in (142 cm)
Tabletop Width (Stationary / 2-way Float)	28 in (71 cm)
Tabletop Length (4-way Float)	68.5 in (174 cm)
Tabletop Width (4-way Float)	31.5 in (79 cm)
Tabletop Height	34.75 in (89 cm)
Tube Stand Height	Fixed: 77 in (196 cm) Variable: 83 in (211 cm)
System Depth	38.5 in (98 cm)
Tube Head Angulation	±45°
Table Voltage	24 VDC

Footprint

Fixed and 2-way float-top table: 38.5 x 56 in (99 x 143 cm).
With a 4-way float-top table: 38.5 x 68.5 in (98 x 174 cm).
