Universal Chiropractic Radiographic System

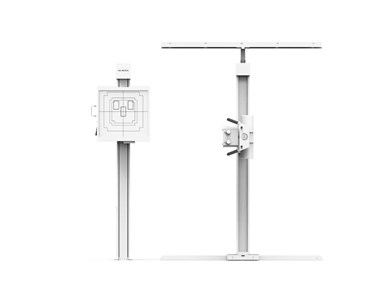

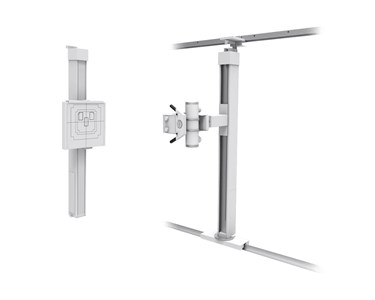

The Universal Chiropractic System is an economical, small footprint radiographic system designed specifically for chiropractic care, with a tube stand and compact wall stand.

Description
Documents
Small footprint radiographic system

Features

  • Floor-to-wall, floor-to-ceiling tube stand and compact wall stand, with extensive vertical travel for a full range of upright positions.
  • Electromagnetic brakes and a fixed positioned tube arm for easy and accurate positioning to the wall stand.
  • Ultra-compact VS100 upright with an electric lock release handle and dual counterweight cables for added patient and user safety.
  • The VS100 upright’s vertical travel of 58.4 in (148.3 cm) enables a complete range of exams from skull to weight-bearing knee and ankle exams.

Optional Digital Upgrade

  • Vieworks DR is offered as the system’s most affordable digital system upgrade option.

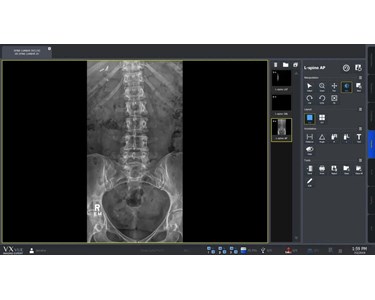

  • Vieworks VXView image acquisition software produces exceptional clarity and resolution for chiropractic spine studies.
  • Images can be sent to PACS, with tools for a variety of chiropractic specific image enhancements.

Universal Chiropractic Tube Stand

Specification
Value
Ceiling Height
Minimum 94 in (239 cm) Maximum 116 in (295 cm)
Vertical Travel
Minimum 12 in (26.5 cm) Maximum 73 in (189 cm)
Longitudinal Travel
96 in (244 cm) with 8 ft rail
Rail Longitudinal Length
8 ft standard (6/12 ft optional)
Transverse Travel
9 in (23 cm)
Column Rotation
±180° with detents 0°, 90°, 90°
Tube Rotation
+180°, -180°

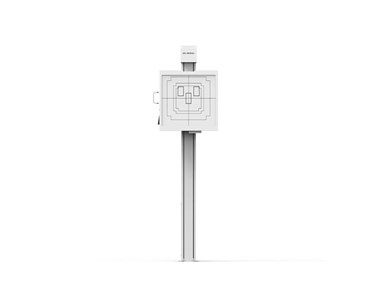

VS100 Wall Stand

Specification
Value
Column Height
85.1 in (216.1 cm)
Receptor Center Height Max
72.4 in (183.9 cm)
Receptor Center Height Min
14 in (35.6 cm)
Receptor Travel
58.4 in (148.3 cm)
Wall to Receptor Distance
10.85 in (27.6 cm)
Front Panel Aluminum Equivalency
0.4 mm
Weight
280 lbs (127 kg
Power Requirements
24 V DC at 0.5 Amps

Read more...
