Radiographic System | FWFC Floor-to-Wall, Floor-to-Ceiling Mounted

Supplier: MedElec Solution Group

1/6

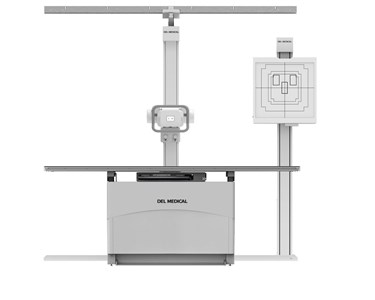

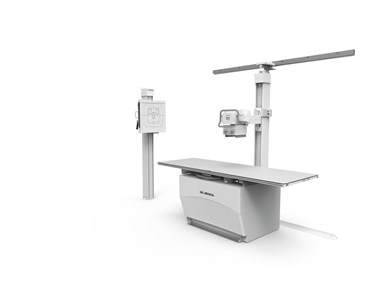

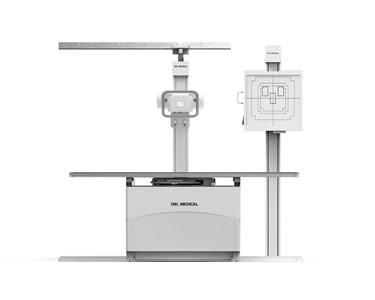

The FWFC is a compact floor-to-wall, floor-to-ceiling mounted system featuring 180° column rotation, electrical positioning locks, an RT100 radiographic table and a VS100 wall stand.

Video for Radiographic System | FWFC Floor-to-Wall, Floor-to-Ceiling Mounted

180° column rotation

FWFC Tube Stand

Compact, affordable rotating tube stand offering versatility, accuracy, fast positioning and comprehensive accessibility.
Centering detent and electrical vertical and longitudinal locks.
Power and high tension cables enclosed in flexible, non-porous protective tubing for space-efficient, safe and easy-to-clean routing.

Specification	Value
Ceiling Height	Minimum 96 in (244 cm) Maximum 116 in (295 cm)
Vertical Travel	Minimum 12 in (26.5 cm) Maximum 73 in (189 cm)
Longitudinal Travel	72 in (183 cm) with 8 ft rail
Rail Longitudinal Length	8 ft (2.4 m) / Optional 6 ft (1.8 m), 10 ft (3 m) or 12 ft (3.7 m)
Transverse Travel	9 in (23 cm)
Column Rotation	±180° with detents 0°, 90°, 90°
Tube Rotation	+180°, -180°
Weight	200 lbs (91 kg)
Power Requirements	115 (1 A) / 230 (2 A) VAC 50 / 60 Hz

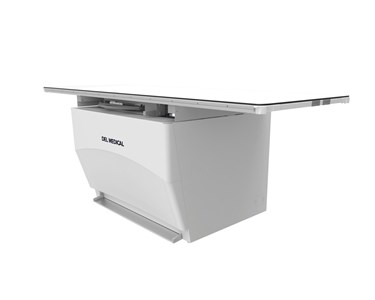

RT100 Radiographic Table

Stain-resistant floating tabletop glides freely on a precision roller bearing system.
Heavy-duty electric locks control tabletop movement, activated by a foot treadle release.
Standard cassette tray accommodates 14 x 17 in (35 x 43 cm) or 17 x 17 in (43 x 43 cm) detectors.
All-steel structure and welded base provide strength and reliability.
Base can store Anthem generator electronics to save space in tight room layouts.

Specification	Value
Patient Load Capacity	700 lbs (318 kg)
Table Height	33.5 in (85 cm)
Table Base Length	43 in (109 cm)
Table Base Width	29 in (74 cm)
Tabletop Length	86.66 in (220 cm)
Tabletop Width	32 in (81 cm)
Tabletop Movement	Longitudinal 51.50 in (131 cm) Transverse 9.5 in (24 cm)
Total Bucky Travel	Longitudinal 11.25 in (28 cm)
Tabletop-to-film Distance	3.2 in (8 cm)
Tabletop Beam Attenuation	Standard table less than 0.7 mm aluminum Carbon fiber less than 0.4 mm aluminum
Weight	387 lbs (176 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz (Max current 0.75 Amps)
Options	– 78 in (198 cm) tabletop length – Carbon fiber tabletop – Lateral cassette holder – Table handgrips – Compression band – Grids – Grid cabinet – Reciprocating bucky – Rotating tray – AEC

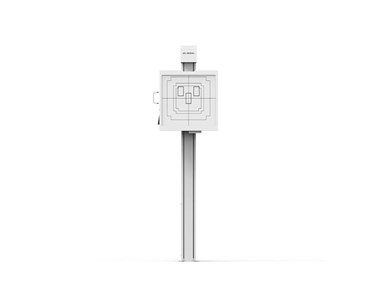

VS100 Wall Stand

Ultra-compact upright with an electric lock release handle and dual counterweight cables for added patient and user safety.
Vertical travel of 58 in (148 cm) enables exams from skull to weight-bearing knee and ankle exams.

Specification	Value
Column Height	85.1 in (216.1 cm)
Receptor Center Height Max	72.4 in (183.9 cm)
Receptor Center Height Min	14 in (35.6 cm)
Receptor Travel	58.4 in (148.3 cm)
Wall to Receptor Distance	10.85 in (27.6 cm)
Front Panel Aluminum Equivalency	0.4 mm
Weight	280 lbs (127 kg
Power Requirements	24 V DC at 0.5 Amps

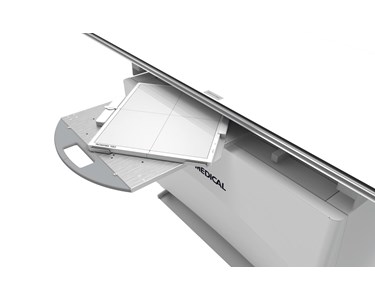

Rotating Tray

Easy-to-use manual DR detector rotation with stable, one-handed portrait-to-landscape positioning without removing the detector.
Fully extended steel slides activate locking mechanisms to protect the detector during loading and unloading.
Accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

FWFC Tube Stand

Compact, affordable rotating tube stand offering versatility, accuracy, fast positioning and comprehensive accessibility.
Centering detent and electrical vertical and longitudinal locks.
Power and high tension cables enclosed in flexible, non-porous protective tubing for space-efficient, safe and easy-to-clean routing.

Specification	Value
Ceiling Height	Minimum 96 in (244 cm) Maximum 116 in (295 cm)
Vertical Travel	Minimum 12 in (26.5 cm) Maximum 73 in (189 cm)
Longitudinal Travel	72 in (183 cm) with 8 ft rail
Rail Longitudinal Length	8 ft (2.4 m) / Optional 6 ft (1.8 m), 10 ft (3 m) or 12 ft (3.7 m)
Transverse Travel	9 in (23 cm)
Column Rotation	±180° with detents 0°, 90°, 90°
Tube Rotation	+180°, -180°
Weight	200 lbs (91 kg)
Power Requirements	115 (1 A) / 230 (2 A) VAC 50 / 60 Hz

RT100 Radiographic Table

Stain-resistant floating tabletop glides freely on a precision roller bearing system.
Heavy-duty electric locks control tabletop movement, activated by a foot treadle release.
Standard cassette tray accommodates 14 x 17 in (35 x 43 cm) or 17 x 17 in (43 x 43 cm) detectors.
All-steel structure and welded base provide strength and reliability.
Base can store Anthem generator electronics to save space in tight room layouts.

Specification	Value
Patient Load Capacity	700 lbs (318 kg)
Table Height	33.5 in (85 cm)
Table Base Length	43 in (109 cm)
Table Base Width	29 in (74 cm)
Tabletop Length	86.66 in (220 cm)
Tabletop Width	32 in (81 cm)
Tabletop Movement	Longitudinal 51.50 in (131 cm) Transverse 9.5 in (24 cm)
Total Bucky Travel	Longitudinal 11.25 in (28 cm)
Tabletop-to-film Distance	3.2 in (8 cm)
Tabletop Beam Attenuation	Standard table less than 0.7 mm aluminum Carbon fiber less than 0.4 mm aluminum
Weight	387 lbs (176 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz (Max current 0.75 Amps)
Options	– 78 in (198 cm) tabletop length – Carbon fiber tabletop – Lateral cassette holder – Table handgrips – Compression band – Grids – Grid cabinet – Reciprocating bucky – Rotating tray – AEC

VS100 Wall Stand

Ultra-compact upright with an electric lock release handle and dual counterweight cables for added patient and user safety.
Vertical travel of 58 in (148 cm) enables exams from skull to weight-bearing knee and ankle exams.

Specification	Value
Column Height	85.1 in (216.1 cm)
Receptor Center Height Max	72.4 in (183.9 cm)
Receptor Center Height Min	14 in (35.6 cm)
Receptor Travel	58.4 in (148.3 cm)
Wall to Receptor Distance	10.85 in (27.6 cm)
Front Panel Aluminum Equivalency	0.4 mm
Weight	280 lbs (127 kg
Power Requirements	24 V DC at 0.5 Amps

Rotating Tray

Easy-to-use manual DR detector rotation with stable, one-handed portrait-to-landscape positioning without removing the detector.
Fully extended steel slides activate locking mechanisms to protect the detector during loading and unloading.
Accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.
