Radiographic System | U-Arm Imaging System

Supplier: MedElec Solution Group

1/6

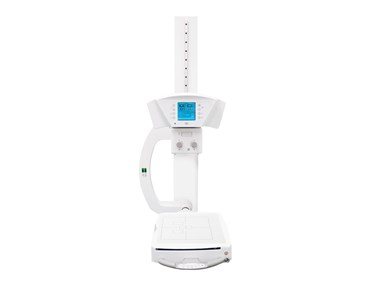

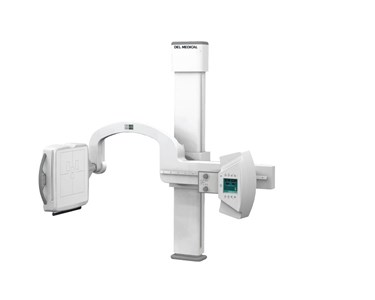

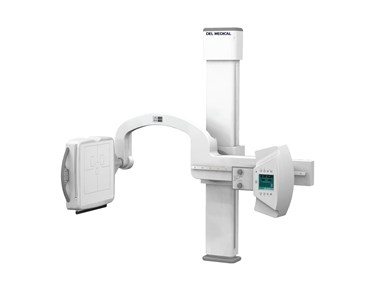

The U-ARM is a fully motorised U-Arm imaging system with intelligent pre-programmed positioning, storing up to 25 positions selectable from a tube-mounted touchscreen.

Video for Radiographic System | U-Arm Imaging System

Pre-programmed positioning

Features

Linear U-Arm keeps the system tube and image receptor aligned regardless of arm position, especially useful for auto-stitch applications focusing on the legs and back.

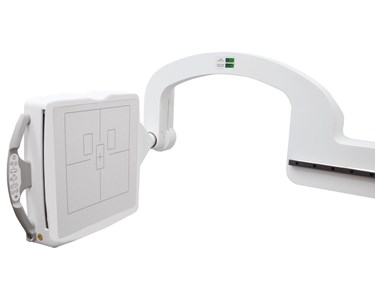

Automated swivel arm and rotating image receptor accommodate varied positions for patients of all sizes, whether sitting, standing or lying down.
Extensive vertical and SID travel supports comprehensive head-to-toe imaging and a wide variety of exams and procedures.

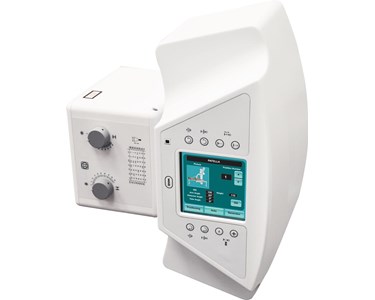

Stores up to 25 pre-programmed positions for fast setup of frequently used applications, selected from the tube-mounted touchscreen.
System controls on the tube head and side of the image receptor, plus an optional remote controller, eliminate the need to walk to a single control location and increase workflow.
Electromagnetic brakes and anti-collision sensors provide safety for patients and staff.

U-Arm specifications

Specification	Value
Column Height	91 in (231 cm)
Minimum Focal-Spot-to-Floor Distance (in the 90º Position	15.3 in (40 cm)
Maximum Focal-Spot-to-Floor distance (in the 90º Position)	66.5 in (169 cm)
Minimum Receptor-Surface-to-Floor Distance (in the 0º Position)	22 in (56 cm)
Maximum Receptor-Surface-to-Floor Distance (in the 0º Position)	41.34 in (105 cm)
Vertical Movement Speed	40 to 150 mm/s
Arm Rotation	-30° / +120°
Rotation Speed 3º — 10º/s	2° — 10°/s
Motorized SID Travel	39.4 to 70.87 in (100 to 180 cm)
Motorized SID Travel Speed	0.4 to 5.1 in/s
Receptor Rotation Angulation	±45°
Receptor Rotation Speed	1° to 3°/s
Arm Weight	719 lbs (326 kg)
Power Requirements	230 VAC

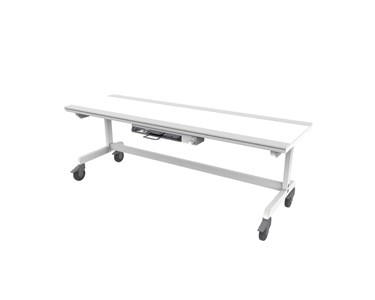

MT500 mobile table

Combined with the U-Arm, the MT500 enables cross-table lateral and recumbent positioning.
Lightweight and easy to manoeuvre for quick positioning.
Options: grid cabinet with tray, table-side patient handgrips, lateral cassette holder, rotating tray and compression band.

Specification	Value
Tabletop Length	80 in (203 cm)
Tabletop Width	26 in (66 cm)
Tabletop Height	28 in (71 cm)
Surface to Cassette Tray Film Plane	3.2 in (8 cm)
Weight	164 lbs (74 kg)
Weight with Cabinet	201 lbs (91.2 kg)

Features

Linear U-Arm keeps the system tube and image receptor aligned regardless of arm position, especially useful for auto-stitch applications focusing on the legs and back.
Automated swivel arm and rotating image receptor accommodate varied positions for patients of all sizes, whether sitting, standing or lying down.
Extensive vertical and SID travel supports comprehensive head-to-toe imaging and a wide variety of exams and procedures.
Stores up to 25 pre-programmed positions for fast setup of frequently used applications, selected from the tube-mounted touchscreen.
System controls on the tube head and side of the image receptor, plus an optional remote controller, eliminate the need to walk to a single control location and increase workflow.
Electromagnetic brakes and anti-collision sensors provide safety for patients and staff.

U-Arm specifications

Specification	Value
Column Height	91 in (231 cm)
Minimum Focal-Spot-to-Floor Distance (in the 90º Position	15.3 in (40 cm)
Maximum Focal-Spot-to-Floor distance (in the 90º Position)	66.5 in (169 cm)
Minimum Receptor-Surface-to-Floor Distance (in the 0º Position)	22 in (56 cm)
Maximum Receptor-Surface-to-Floor Distance (in the 0º Position)	41.34 in (105 cm)
Vertical Movement Speed	40 to 150 mm/s
Arm Rotation	-30° / +120°
Rotation Speed 3º — 10º/s	2° — 10°/s
Motorized SID Travel	39.4 to 70.87 in (100 to 180 cm)
Motorized SID Travel Speed	0.4 to 5.1 in/s
Receptor Rotation Angulation	±45°
Receptor Rotation Speed	1° to 3°/s
Arm Weight	719 lbs (326 kg)
Power Requirements	230 VAC

MT500 mobile table

Combined with the U-Arm, the MT500 enables cross-table lateral and recumbent positioning.
Lightweight and easy to manoeuvre for quick positioning.
Options: grid cabinet with tray, table-side patient handgrips, lateral cassette holder, rotating tray and compression band.

Specification	Value
Tabletop Length	80 in (203 cm)
Tabletop Width	26 in (66 cm)
Tabletop Height	28 in (71 cm)
Surface to Cassette Tray Film Plane	3.2 in (8 cm)
Weight	164 lbs (74 kg)
Weight with Cabinet	201 lbs (91.2 kg)

Read less...
