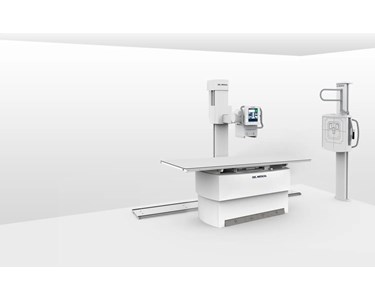

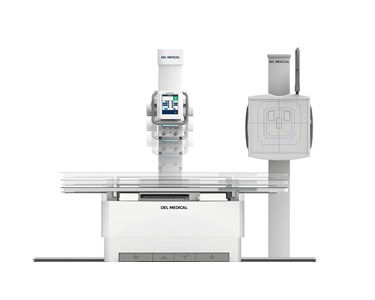

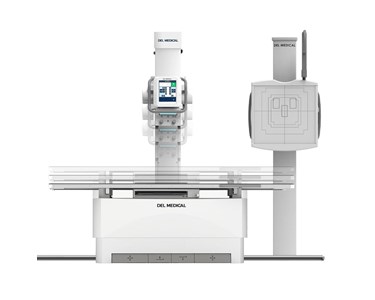

The FMT18T is a premium floor-mounted system with an LCD touchscreen and vertical tracking.

Video for Radiographic System | FMT18T Tube Stand

vertical tracking

FMT18T features

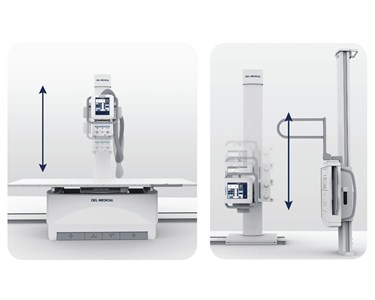

Synchronised motorised vertical movement maintains precise centring between the X-ray tube and image receptor, with vertical tracking to the wall stand and SID tracking to the elevating table for quick, accurate alignment without additional manual adjustments.
A 10.4 in touchscreen console provides large text readouts and integrated tube stand operation. Ergonomically placed movement identification buttons assist view setup.
Extensive longitudinal and vertical movement and a rotating tube column enable cross-table lateral positioning.
An all-lock release sensor above the bottom section of the tube head handle allows rapid manual positioning by grabbing the bottom handle.
Automatic field-of-view selection for each body part through DELWORKS DR acquisition software’s pre-programmed APR settings accelerates positioning and reduces radiation exposure.

FMT18T specifications

Specification	Value
Minimum Ceiling Height	92 in (234 cm)
Column Height	91.3 in (231 cm)
Vertical Travel	64.5 in (164 cm) total
Floor to Focal Spot (Standard Mount)	Minimum 11 in (28 cm) Maximum 75.5 in (192 cm)
Longitudinal Travel	94 in (239 cm)
Floor Plate Longitudinal Length	120 in (305 cm)
Transverse Travel	11 in (28 cm)
Tube, Collimator, and Cable Support Capacity	88 lbs (40 kg)
Weight (Including Floor Track and Components)	950 lbs (431 kg)
Column Rotation	180° where installation permits
Tube Rotation	±180° detents for lateral decubitus projections
Base Assembly to Rear Wall	8 in (20.5 cm)
Power Requirements	99-132 / 198-264 VAC 50 / 60 Hz
Options	– Manual collimator – 8 or 12 ft floor plates – DAP (Dose Area Product) – Full system integration (with or without generator control)

EV800 elevating table

Four-way float top table with an exclusive four-point lift system and exceptionally quiet motor-drive.
Smooth, scratch-resistant tabletop lowers to 22 in for patient transfers and adjustments.
Stable continuous movement through recessed foot treadles and table-side controls.

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	86.5 in (220 cm)
Tabletop Width	36 in (91 cm)
Weight	563 lbs (256 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

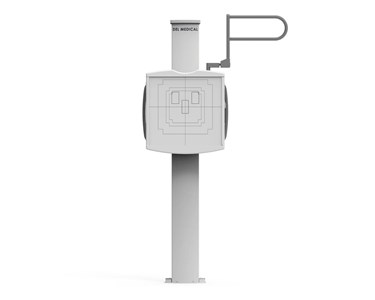

VS300 wall stand

Electromagnetic ‘fail-safe’ locks, full receptor movement to the floor, patient-side handgrips and optional overhead handgrips support upright examinations without unnecessary patient strain.
Technologist handgrip angles with the operator’s wrist as the receptor is raised or lowered.

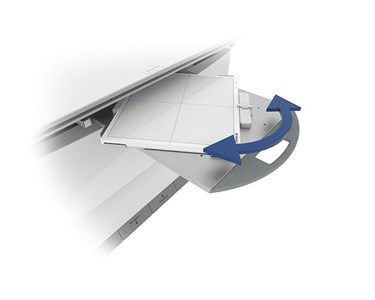

Rotating tray permits stable, one-handed portrait-to-landscape DR detector rotation without removing the detector. Fully extended steel slides activate protective locking mechanisms during loading and unloading; accommodates ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

Specification	Value
Height/Vertical Travel	84 in (213.4 cm)
Depth	13.4 in (34 cm)
Receptor Width	24.6 in (62.5 cm)
Receptor Height	26.5 in (67.3 cm)
Weight (with Receptor)	200 lbs (91 kg)
Power Requirements	24 V DC at 1.25 Amps
Option	– Floor mount kit for freestanding version – Wall mount bracket – Rotating cassette tray

FMT18T features

Synchronised motorised vertical movement maintains precise centring between the X-ray tube and image receptor, with vertical tracking to the wall stand and SID tracking to the elevating table for quick, accurate alignment without additional manual adjustments.
A 10.4 in touchscreen console provides large text readouts and integrated tube stand operation. Ergonomically placed movement identification buttons assist view setup.
Extensive longitudinal and vertical movement and a rotating tube column enable cross-table lateral positioning.
An all-lock release sensor above the bottom section of the tube head handle allows rapid manual positioning by grabbing the bottom handle.
Automatic field-of-view selection for each body part through DELWORKS DR acquisition software’s pre-programmed APR settings accelerates positioning and reduces radiation exposure.

FMT18T specifications

Specification	Value
Minimum Ceiling Height	92 in (234 cm)
Column Height	91.3 in (231 cm)
Vertical Travel	64.5 in (164 cm) total
Floor to Focal Spot (Standard Mount)	Minimum 11 in (28 cm) Maximum 75.5 in (192 cm)
Longitudinal Travel	94 in (239 cm)
Floor Plate Longitudinal Length	120 in (305 cm)
Transverse Travel	11 in (28 cm)
Tube, Collimator, and Cable Support Capacity	88 lbs (40 kg)
Weight (Including Floor Track and Components)	950 lbs (431 kg)
Column Rotation	180° where installation permits
Tube Rotation	±180° detents for lateral decubitus projections
Base Assembly to Rear Wall	8 in (20.5 cm)
Power Requirements	99-132 / 198-264 VAC 50 / 60 Hz
Options	– Manual collimator – 8 or 12 ft floor plates – DAP (Dose Area Product) – Full system integration (with or without generator control)

EV800 elevating table

Four-way float top table with an exclusive four-point lift system and exceptionally quiet motor-drive.
Smooth, scratch-resistant tabletop lowers to 22 in for patient transfers and adjustments.
Stable continuous movement through recessed foot treadles and table-side controls.

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	86.5 in (220 cm)
Tabletop Width	36 in (91 cm)
Weight	563 lbs (256 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

VS300 wall stand

Electromagnetic ‘fail-safe’ locks, full receptor movement to the floor, patient-side handgrips and optional overhead handgrips support upright examinations without unnecessary patient strain.
Technologist handgrip angles with the operator’s wrist as the receptor is raised or lowered.
Rotating tray permits stable, one-handed portrait-to-landscape DR detector rotation without removing the detector. Fully extended steel slides activate protective locking mechanisms during loading and unloading; accommodates ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

Specification	Value
Height/Vertical Travel	84 in (213.4 cm)
Depth	13.4 in (34 cm)
Receptor Width	24.6 in (62.5 cm)
Receptor Height	26.5 in (67.3 cm)
Weight (with Receptor)	200 lbs (91 kg)
Power Requirements	24 V DC at 1.25 Amps
Option	– Floor mount kit for freestanding version – Wall mount bracket – Rotating cassette tray
