Radiographic System | OTC18M Tube Crane

1/6

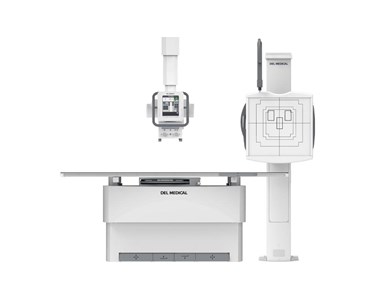

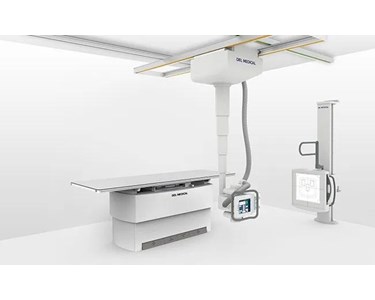

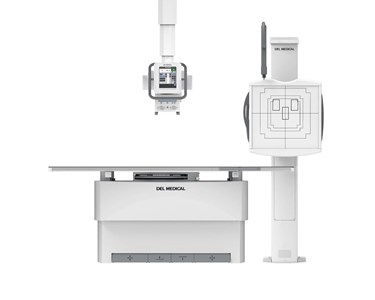

The DEL MEDICAL OTC18M is a ceiling-mounted tube crane with an LCD touchscreen, electromagnetic braking and a five-tier telescoping column for head-to-toe radiographic procedures.

LCD touchscreen

OTC18M Tube Crane

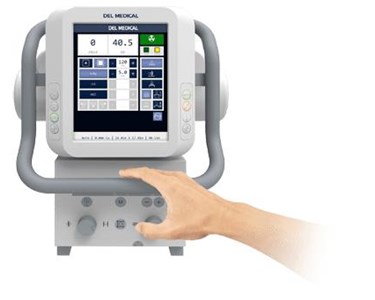

Advanced, technologist-friendly LCD touchscreen displays tube angulation, SID values and customisable generator controls for seamless radiographic system operation.
Colour-coded movement identification buttons support precise view setup.
Electromagnetic braking provides smooth, effortless movement and fast, secure tube-head readjustments.
Five-tier telescoping column provides 71 in (180 cm) vertical movement for complete head-to-toe procedures, including upright weight-bearing and recumbent tabletop exams.
All-lock release sensor above the bottom section of the tube-head handle unlocks the system when the user grasps the bottom handle, enabling rapid manual positioning.
Automatic field-of-view selection for each body part accelerates patient positioning and reduces radiation exposure through DELWORKS DR acquisition software’s pre-programmed APR settings.

Specification	Value
Room Height	105 – 119 in (267 – 302 cm)
Room Height (with Optional Telescopic Extension)	105 – 127 in (267 – 322 cm)
Vertical Telescopic Travel Range	70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance / 15.5 in (39.4 cm) focal spot to floor distance with a 9 ft ceiling height
Longitudinal Travel Range	Standard: 14 ft rail included, 136.2 in (346 cm) min Optional: rail extensions: 219.9 in (558.5 cm) max
Transverse Travel Range	Standard: 10 ft bridge with 9.8 ft transverse carriage: 86.6 in (220 cm) min Optional: 13 ft bridge with 13.1 ft transverse carriage: 139.7 in (355 cm) max
Longitudinal Detent Positions	Configurable during installation
Tube Rotation Range (Horizontal Axis)	-120°, +120°, Detent positions at -90°, 0°, +90°
Tube Rotation Range (Vertical Axis)	-182°, +154°, Detent positions at -180°, -90°, 0°, +90°
Weight (with Collimator and Tube)	Tube crane: 507 lbs (230 kg) 10 ft (3 m) transverse bridge: 154 lbs (70 kg) 13 ft (4 m) transverse bridge: 198 lbs (90 kg) Longitudinal rails: 59 lbs (26.5 kg)

EV800 Elevating Table

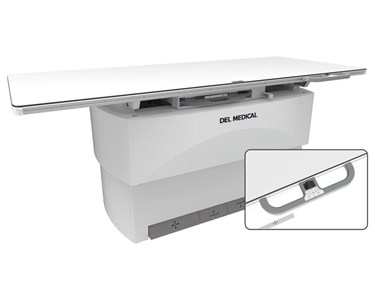

Durable elevating four-way float-top table with a four-point lift system and quiet motor drive for safety and usability.
Smooth, scratch-resistant tabletop lowers to 22 in (56 cm) for stress-free patient transfers and adjustments.
Recessed foot treadles and table-side controls provide stable, continuous movement, supporting technologist performance and satisfaction.

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	78 in (198 cm) 86.5 in (220 cm)
Tabletop Width	32 in (81 cm) 36 in (91 cm)
Weight	Table base: 563 lbs (256 kg) 32 x 78 in: 130 lbs (59 kg) 32 x 86 in: 132 lbs (60 kg) 36 x 78 in: 141 lbs (66 kg) 36 x 86 in: 146 lbs (64 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

VS300 Wall Stand

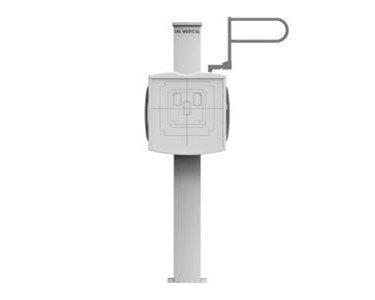

Electromagnetic ‘fail-safe’ locks maintain operator confidence throughout imaging.
Full receptor movement to the floor, patient-side handgrips and optional overhead handgrips support efficient upright exams without unnecessary patient strain.
Technologist handgrip angles with the operator’s wrist as the image receptor is raised or lowered for ergonomic vertical travel.

Specification	Value
Height / Vertical Travel	83 in (211 cm)
Depth	13.5 in (34 cm)
Receptor Width	24.7 in (62.7 cm)
Receptor Height	26.5 in (67.2 cm)
Front Panel Aluminum Equivalency	0.4 mm
Weight (with Receptor)	250 lbs (91 kg) standard grid cabinet

VS50 Long Length Wall Stand

Safely houses the DELWORKS LLI detector for long-length and routine upright exams with the OTC18M.
Exposure anywhere on the 17×42 in (43×107 cm) detector allows use as the room’s only wallstand or as a second wallstand for long-length exams only.
Positive mechanical lock requires no power; fully concealed counterbalance provides easy vertical motion.
Full vertical motion moves the active area from 1.5 in (3.8 cm) to 81 in (205.7 cm) above the floor.

Specification	Value
Height	78.36 in (199 cm)
Depth	7.59 in (19.3 cm)
Receptor Width	19.12 in (48.53 cm)
Vertical Travel	37.5 in (95 cm)
Weight (without Grid, Detector, and Lead Backer)	200 lbs (90.7 kg)
Options	Grid

Rotating Detector Tray

Easy-to-use tray enables manual DR detector rotation inside both the table and wall stand.
Stable, one-handed operation enables fast portrait-to-landscape positioning without removing the detector from the tray.
Fully extended steel slides activate locking mechanisms to protect the detector during loading and unloading.
Accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

OTC18M Tube Crane

Advanced, technologist-friendly LCD touchscreen displays tube angulation, SID values and customisable generator controls for seamless radiographic system operation.
Colour-coded movement identification buttons support precise view setup.
Electromagnetic braking provides smooth, effortless movement and fast, secure tube-head readjustments.
Five-tier telescoping column provides 71 in (180 cm) vertical movement for complete head-to-toe procedures, including upright weight-bearing and recumbent tabletop exams.
All-lock release sensor above the bottom section of the tube-head handle unlocks the system when the user grasps the bottom handle, enabling rapid manual positioning.
Automatic field-of-view selection for each body part accelerates patient positioning and reduces radiation exposure through DELWORKS DR acquisition software’s pre-programmed APR settings.

Specification	Value
Room Height	105 – 119 in (267 – 302 cm)
Room Height (with Optional Telescopic Extension)	105 – 127 in (267 – 322 cm)
Vertical Telescopic Travel Range	70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance / 15.5 in (39.4 cm) focal spot to floor distance with a 9 ft ceiling height
Longitudinal Travel Range	Standard: 14 ft rail included, 136.2 in (346 cm) min Optional: rail extensions: 219.9 in (558.5 cm) max
Transverse Travel Range	Standard: 10 ft bridge with 9.8 ft transverse carriage: 86.6 in (220 cm) min Optional: 13 ft bridge with 13.1 ft transverse carriage: 139.7 in (355 cm) max
Longitudinal Detent Positions	Configurable during installation
Tube Rotation Range (Horizontal Axis)	-120°, +120°, Detent positions at -90°, 0°, +90°
Tube Rotation Range (Vertical Axis)	-182°, +154°, Detent positions at -180°, -90°, 0°, +90°
Weight (with Collimator and Tube)	Tube crane: 507 lbs (230 kg) 10 ft (3 m) transverse bridge: 154 lbs (70 kg) 13 ft (4 m) transverse bridge: 198 lbs (90 kg) Longitudinal rails: 59 lbs (26.5 kg)

EV800 Elevating Table

Durable elevating four-way float-top table with a four-point lift system and quiet motor drive for safety and usability.
Smooth, scratch-resistant tabletop lowers to 22 in (56 cm) for stress-free patient transfers and adjustments.
Recessed foot treadles and table-side controls provide stable, continuous movement, supporting technologist performance and satisfaction.

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	78 in (198 cm) 86.5 in (220 cm)
Tabletop Width	32 in (81 cm) 36 in (91 cm)
Weight	Table base: 563 lbs (256 kg) 32 x 78 in: 130 lbs (59 kg) 32 x 86 in: 132 lbs (60 kg) 36 x 78 in: 141 lbs (66 kg) 36 x 86 in: 146 lbs (64 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

VS300 Wall Stand

Electromagnetic ‘fail-safe’ locks maintain operator confidence throughout imaging.
Full receptor movement to the floor, patient-side handgrips and optional overhead handgrips support efficient upright exams without unnecessary patient strain.
Technologist handgrip angles with the operator’s wrist as the image receptor is raised or lowered for ergonomic vertical travel.

Specification	Value
Height / Vertical Travel	83 in (211 cm)
Depth	13.5 in (34 cm)
Receptor Width	24.7 in (62.7 cm)
Receptor Height	26.5 in (67.2 cm)
Front Panel Aluminum Equivalency	0.4 mm
Weight (with Receptor)	250 lbs (91 kg) standard grid cabinet

VS50 Long Length Wall Stand

Safely houses the DELWORKS LLI detector for long-length and routine upright exams with the OTC18M.
Exposure anywhere on the 17×42 in (43×107 cm) detector allows use as the room’s only wallstand or as a second wallstand for long-length exams only.
Positive mechanical lock requires no power; fully concealed counterbalance provides easy vertical motion.
Full vertical motion moves the active area from 1.5 in (3.8 cm) to 81 in (205.7 cm) above the floor.

Specification	Value
Height	78.36 in (199 cm)
Depth	7.59 in (19.3 cm)
Receptor Width	19.12 in (48.53 cm)
Vertical Travel	37.5 in (95 cm)
Weight (without Grid, Detector, and Lead Backer)	200 lbs (90.7 kg)
Options	Grid

Rotating Detector Tray

Easy-to-use tray enables manual DR detector rotation inside both the table and wall stand.
Stable, one-handed operation enables fast portrait-to-landscape positioning without removing the detector from the tray.
Fully extended steel slides activate locking mechanisms to protect the detector during loading and unloading.
Accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.
