OTC18S Radiographic System

Supplier: MedElec Solution Group

OTC18S Radiographic System

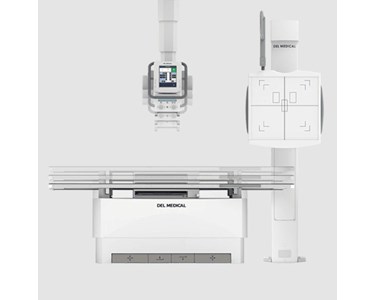

The DEL Medical OTC18S radiographic system combines automated table and wall-stand stitching, synchronised tracking, a touchscreen tube crane and DELWORKS DR imaging.

Automated stitching

System overview

Overhead tube crane radiographic system with motorised stitching and synchronised vertical and horizontal tracking.
Automated long-length examinations at the table or wall stand, supported by motorisation and DELWORKS DR software.
Designed for high-volume hospital radiology departments, medical imaging centres and large orthopaedic facilities performing a broad range of radiographic studies.
Ceiling-mounted longitudinal and transverse rails support cross-table laterals and other challenging views.
Built in the USA.

Included equipment

Overhead tube crane with vertical tracking and automated tube rotation for stitching.
Table receptor motorisation for horizontal tracking.
Automatic collimator.
EV800T Elevating Four-Way Float Top Table.
VT300T Wall Stand.
DELWORKS DR System.

Tube crane and controls

Large, technologist-friendly LCD touchscreen displays system status, tube angulation, SID and collimation at the patient’s side.
Selectable workstation, generator, AEC and tracking controls; integration with DELWORKS DR and a compatible generator enables patient-side long-length examination setup and technique adjustment.
Colour-coded movement identification buttons, ergonomic tube-head controls and electromagnetic braking for quiet, secure locking.
Five-tier telescoping column supports head-to-toe radiography, including upright weight-bearing and recumbent tabletop examinations.
Bi-directional vertical tracking permits positioning control from the tube or wall stand and maintains SID to the table and wall stand.
All-lock release sensor above the bottom tube-head handle enables grab-and-go longitudinal, transverse and vertical positioning.
Individual lock-release buttons include column rotation.
Collimator light activates automatically.
Auto-collimation selects the field of view for each body part to accelerate positioning and reduce radiation exposure. During stitching, DELWORKS DR optimises collimation for minimal image overlap and reduced exposure.

Specification	Value
Model	OTC18S
Touchscreen Interface	10.4”
Vertical movement	71 in (180 cm)
Room Height (Standard):	105 - 119 in (267 - 302 cm)
Room Height (with Optional Telescopic Extension)	105 - 127 in (267 - 322 cm)
Vertical Telescopic Travel Range:	70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance; 15.5 in (39.4 cm) focal spot to floor distance with a 9' ceiling height
Longitudinal Travel Range:	14 ft rail (standard): 136 in (346 cm); Rail extensions (optional): 220 in (558.5 cm)
Transverse Travel Range:	10 ft (3 m) track (standard): 86.6 in (220 cm); 13 ft (4 m) track (optional): 140 in (355 cm)
Longitudinal Detent Positions:	Configurable during installation
Tube Rotation Range (Horizontal Axis):	-120°, +120°, detent positions at -90°, 0°, +90°
Tube Rotation Range (Vertical Axis):	-182°, +154°, detent positions at -180°, -90°, 0°, +90°
Locks:	All Lock Release sensor on bottom handle to release transverse, longitudinal, and vertical locks; Individual membrane lock releases: Roll Lock, Column Rotate, Up, Down, Longitudinal, Transverse, Vertical, Vertical / Longitudinal / Transverse
Weight:	~507 lbs (230 kg) with tube & collimator
Options:	DAP (Dose Area Product)

Automated stitching

The technologist marks the top and bottom of the anatomy using the tube-head controls, with the patient positioned at the wall stand or table.
The system calculates the required exposures and image overlaps.
While the technologist holds the exposure switch and the patient remains in place, the system exposes, repositions the tube angle and detector, and repeats until the anatomy is imaged.
Images are automatically stitched into an integrated long-length image.
DELWORKS also supports manual image stitching for full-length spine and leg-length images.

EV800T elevating table

Motorised receptor enables synchronisation and longitudinal tube tracking.
Elevating four-way float top with a four-point lift system and quiet motor drive.
Smooth, scratch-resistant tabletop; the product overview states a lowered height of 22 in (56 cm) for patient transfers and adjustments.
Recessed foot treadles and table-side controls provide continuous movement.
Accessories include table-side handgrips mountable along the entire length of both tabletop sides, an adjustable lateral cassette holder mountable on either side for cross-table views, and table-side hand controls for tabletop float and elevation.

Specification	Value
Load Capacity (Dynamic):	800 lbs (363 kg)
Table Base Length:	53 in (135 cm)
Table Base Width:	25 in (64 cm)
Tabletop Movement:	Longitudinal, ± 19.75 in (50 cm) Transverse, ± 6.5 in (16.5 cm)
Variable Height:	22.25 in (56.5 cm) to 34.25 in (87 cm)
Bucky Travel:	± 8.5 in (22 cm) motorized
Tabletop-to-Film Distance:	3.2 in (8 cm), upper position for special applications 2.7 in (6.9 cm)
Tabletop Beam Attenuation:	Standard table (<0.7 mm aluminum); Carbon fiber (<0.4 mm aluminum)
Tabletop Length:	78 in (198 cm) / 86.5 in (220 cm)
Tabletop Width:	32 in (81 cm) / 36 in (91 cm)
Weight	563 lbs (256 kg)

VT300T tilting wall stand

Motorised receptor synchronises and tracks vertically to the X-ray tube for quiet positioning.
Tilting image receptor supports standing and seated examinations.

Specification	Value
Receptor tilt range:	+90°/ -20°
Vertical travel range, vertical receptor:	15.5 - 71.1 in (39.4 - 180.6 cm) motorized
Vertical travel range, +90° receptor:	25.5 in (64.8 cm) minimum
Height:	86.5 in (208.9 cm)
Depth, vertical receptor:	30 in (76 cm)
Receptor width:	27.25 in (69.2 cm)
Receptor height:	26.5 in (67.3 cm)
Weight	765.5 lbs (347.2 kg)
Weight, without counterweights:	368.5 lbs (167 kg)
Options	8 in (20 cm) extension box / Overhead patient handgrips / Rotating cassette tray

Generator and X-ray tube

Compact CMDR generator, fully integrated with the DELWORKS DR Workstation for streamlined workflow and dose efficiency.

Specification	Value
Generator models	40, 50, 65 and 80 kW
1-phase:	40 kW
3-phase:	40 / 50 / 65 / 80 kW
X-ray Tube	300 / 400 / 600 kHU

DELWORKS software

Image acquisition and processing with a user-friendly interface, complex system automation, anatomical programming and image-processing algorithms to simplify examinations, support productivity and minimise human error, repeat examinations and patient dose.
Single pre-exposure display integrates patient and procedure information, generator exposure factors, status and controls.
Positioning guide cues the proper positioning for each view.
Deviation Index (DI) reporting assists dose minimisation.
Exam-specific processing automatically optimises images for the selected anatomy.
Automatically Programmed Radiography (APR) default values with manual adjustment.
Image rotation in 90° steps, horizontal mirroring, and automatic or manual cropping to the collimated area.
Verification and correction of image laterality and patient orientation.
Orientation markers and predefined or free-text comments can be added directly to images.
PICC tool enhances visualisation of leads, lines and tubes.
Rejected-image management, analysis and reporting.
Detailed pixel-density histograms.
Exam-based selection of modified LUT (Look-Up Table), plus manual LUT, window and level adjustment.
Full array of measurement tools.
Product security supports HIPAA compliance and protection against cyberthreats such as viruses and ransomware.

Detector options and connectivity

Fixed and wireless DR options for single, dual or multi-detector applications.

Detector	Size	Features
E14Cw	14 x 17 in (35 x 43 cm)	Ultra-light, portable Cesium wireless detector; automated stitching available
E24Cw	10 x 12 in (24 x 30 cm)	Cesium wireless detector for paediatric imaging or smaller body parts
E17C	17 x 17 in (43 x 43 cm)	Large-format detector fixed in the vertical wall stand or table; fast, wired image transfer
LLI	17 x 42 in (43 x 107 cm)	Monolithic, one-piece wireless portable detector for full spine and leg imaging in a single exposure

EasyShare allows detectors to be shared between multiple DELWORKS workstations.
Sharing examples include an E14Cw between the MDR mobile and OTC or FMT Radiographic Suite, or E14Cw and E24Cw detectors between a DELWORKS in-room workstation and DELWORKS FIT mobile workstation.
EasyConnect Auto Exposure Detection (AED) keeps DELWORKS wireless detectors in standby awaiting exposure from any X-ray source, then instantly captures the X-ray image and transmits it wirelessly to the system workstation.

Optional positioning accessories

Rotating tray upgrade permits one-handed manual portrait-to-landscape detector rotation inside the table or wall stand without removing the detector.
Fully extended steel slides activate locking mechanisms to protect the detector during loading and unloading.
Tray accommodates ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.
Optional Mobile Universal Positioning and Alignment Stand helps keep patients immobile during single or multiple exposures.
Slim, lightweight stand with height-adjustable handles and four 360° lockable swivel castors; can be moved into position and removed for storage.
Optional radiopaque ruler helps verify stitching accuracy.

Specification	Value
Handrail Height (Lowest):	21 in (53.3 cm)
Handrail Height (Highest):	76 in (193 cm)
Dimensions:	30 x 29 x 79 in (76.2 x 73.6 x 200.7 cm)
Weight	58 lbs (26.31 kg)
Option	Radiopaque ruler

Power requirements

Specification	Value
System ( DM-PSI):	115 / 230 - 240 VAC, 50 / 60 Hz, 15A
Tube Crane:	24 VDC 8A (supplied by the DM-PSI)
Table:	120 / 230 / 240 VAC, 50 / 60 Hz, 10A (supplied by the DM-PSI)
Wallstand:	24 VDC 1.2A (supplied by the DM-PSI)
Generator:	Generator specific (see 8000-DMOTC18S-OP for further details)

System overview

Overhead tube crane radiographic system with motorised stitching and synchronised vertical and horizontal tracking.
Automated long-length examinations at the table or wall stand, supported by motorisation and DELWORKS DR software.
Designed for high-volume hospital radiology departments, medical imaging centres and large orthopaedic facilities performing a broad range of radiographic studies.
Ceiling-mounted longitudinal and transverse rails support cross-table laterals and other challenging views.
Built in the USA.

Included equipment

Overhead tube crane with vertical tracking and automated tube rotation for stitching.
Table receptor motorisation for horizontal tracking.
Automatic collimator.
EV800T Elevating Four-Way Float Top Table.
VT300T Wall Stand.
DELWORKS DR System.

Tube crane and controls

Large, technologist-friendly LCD touchscreen displays system status, tube angulation, SID and collimation at the patient’s side.
Selectable workstation, generator, AEC and tracking controls; integration with DELWORKS DR and a compatible generator enables patient-side long-length examination setup and technique adjustment.
Colour-coded movement identification buttons, ergonomic tube-head controls and electromagnetic braking for quiet, secure locking.
Five-tier telescoping column supports head-to-toe radiography, including upright weight-bearing and recumbent tabletop examinations.
Bi-directional vertical tracking permits positioning control from the tube or wall stand and maintains SID to the table and wall stand.
All-lock release sensor above the bottom tube-head handle enables grab-and-go longitudinal, transverse and vertical positioning.
Individual lock-release buttons include column rotation.
Collimator light activates automatically.
Auto-collimation selects the field of view for each body part to accelerate positioning and reduce radiation exposure. During stitching, DELWORKS DR optimises collimation for minimal image overlap and reduced exposure.

Specification	Value
Model	OTC18S
Touchscreen Interface	10.4”
Vertical movement	71 in (180 cm)
Room Height (Standard):	105 - 119 in (267 - 302 cm)
Room Height (with Optional Telescopic Extension)	105 - 127 in (267 - 322 cm)
Vertical Telescopic Travel Range:	70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance; 15.5 in (39.4 cm) focal spot to floor distance with a 9' ceiling height
Longitudinal Travel Range:	14 ft rail (standard): 136 in (346 cm); Rail extensions (optional): 220 in (558.5 cm)
Transverse Travel Range:	10 ft (3 m) track (standard): 86.6 in (220 cm); 13 ft (4 m) track (optional): 140 in (355 cm)
Longitudinal Detent Positions:	Configurable during installation
Tube Rotation Range (Horizontal Axis):	-120°, +120°, detent positions at -90°, 0°, +90°
Tube Rotation Range (Vertical Axis):	-182°, +154°, detent positions at -180°, -90°, 0°, +90°
Locks:	All Lock Release sensor on bottom handle to release transverse, longitudinal, and vertical locks; Individual membrane lock releases: Roll Lock, Column Rotate, Up, Down, Longitudinal, Transverse, Vertical, Vertical / Longitudinal / Transverse
Weight:	~507 lbs (230 kg) with tube & collimator
Options:	DAP (Dose Area Product)

Automated stitching

The technologist marks the top and bottom of the anatomy using the tube-head controls, with the patient positioned at the wall stand or table.
The system calculates the required exposures and image overlaps.
While the technologist holds the exposure switch and the patient remains in place, the system exposes, repositions the tube angle and detector, and repeats until the anatomy is imaged.
Images are automatically stitched into an integrated long-length image.
DELWORKS also supports manual image stitching for full-length spine and leg-length images.

EV800T elevating table

Motorised receptor enables synchronisation and longitudinal tube tracking.
Elevating four-way float top with a four-point lift system and quiet motor drive.
Smooth, scratch-resistant tabletop; the product overview states a lowered height of 22 in (56 cm) for patient transfers and adjustments.
Recessed foot treadles and table-side controls provide continuous movement.
Accessories include table-side handgrips mountable along the entire length of both tabletop sides, an adjustable lateral cassette holder mountable on either side for cross-table views, and table-side hand controls for tabletop float and elevation.

Specification	Value
Load Capacity (Dynamic):	800 lbs (363 kg)
Table Base Length:	53 in (135 cm)
Table Base Width:	25 in (64 cm)
Tabletop Movement:	Longitudinal, ± 19.75 in (50 cm) Transverse, ± 6.5 in (16.5 cm)
Variable Height:	22.25 in (56.5 cm) to 34.25 in (87 cm)
Bucky Travel:	± 8.5 in (22 cm) motorized
Tabletop-to-Film Distance:	3.2 in (8 cm), upper position for special applications 2.7 in (6.9 cm)
Tabletop Beam Attenuation:	Standard table (<0.7 mm aluminum); Carbon fiber (<0.4 mm aluminum)
Tabletop Length:	78 in (198 cm) / 86.5 in (220 cm)
Tabletop Width:	32 in (81 cm) / 36 in (91 cm)
Weight	563 lbs (256 kg)

VT300T tilting wall stand

Motorised receptor synchronises and tracks vertically to the X-ray tube for quiet positioning.
Tilting image receptor supports standing and seated examinations.

Specification	Value
Receptor tilt range:	+90°/ -20°
Vertical travel range, vertical receptor:	15.5 - 71.1 in (39.4 - 180.6 cm) motorized
Vertical travel range, +90° receptor:	25.5 in (64.8 cm) minimum
Height:	86.5 in (208.9 cm)
Depth, vertical receptor:	30 in (76 cm)
Receptor width:	27.25 in (69.2 cm)
Receptor height:	26.5 in (67.3 cm)
Weight	765.5 lbs (347.2 kg)
Weight, without counterweights:	368.5 lbs (167 kg)
Options	8 in (20 cm) extension box / Overhead patient handgrips / Rotating cassette tray

Generator and X-ray tube

Compact CMDR generator, fully integrated with the DELWORKS DR Workstation for streamlined workflow and dose efficiency.

Specification	Value
Generator models	40, 50, 65 and 80 kW
1-phase:	40 kW
3-phase:	40 / 50 / 65 / 80 kW
X-ray Tube	300 / 400 / 600 kHU

DELWORKS software

Image acquisition and processing with a user-friendly interface, complex system automation, anatomical programming and image-processing algorithms to simplify examinations, support productivity and minimise human error, repeat examinations and patient dose.
Single pre-exposure display integrates patient and procedure information, generator exposure factors, status and controls.
Positioning guide cues the proper positioning for each view.
Deviation Index (DI) reporting assists dose minimisation.
Exam-specific processing automatically optimises images for the selected anatomy.
Automatically Programmed Radiography (APR) default values with manual adjustment.
Image rotation in 90° steps, horizontal mirroring, and automatic or manual cropping to the collimated area.
Verification and correction of image laterality and patient orientation.
Orientation markers and predefined or free-text comments can be added directly to images.
PICC tool enhances visualisation of leads, lines and tubes.
Rejected-image management, analysis and reporting.
Detailed pixel-density histograms.
Exam-based selection of modified LUT (Look-Up Table), plus manual LUT, window and level adjustment.
Full array of measurement tools.
Product security supports HIPAA compliance and protection against cyberthreats such as viruses and ransomware.

Detector options and connectivity

Fixed and wireless DR options for single, dual or multi-detector applications.

Detector	Size	Features
E14Cw	14 x 17 in (35 x 43 cm)	Ultra-light, portable Cesium wireless detector; automated stitching available
E24Cw	10 x 12 in (24 x 30 cm)	Cesium wireless detector for paediatric imaging or smaller body parts
E17C	17 x 17 in (43 x 43 cm)	Large-format detector fixed in the vertical wall stand or table; fast, wired image transfer
LLI	17 x 42 in (43 x 107 cm)	Monolithic, one-piece wireless portable detector for full spine and leg imaging in a single exposure

EasyShare allows detectors to be shared between multiple DELWORKS workstations.
Sharing examples include an E14Cw between the MDR mobile and OTC or FMT Radiographic Suite, or E14Cw and E24Cw detectors between a DELWORKS in-room workstation and DELWORKS FIT mobile workstation.
EasyConnect Auto Exposure Detection (AED) keeps DELWORKS wireless detectors in standby awaiting exposure from any X-ray source, then instantly captures the X-ray image and transmits it wirelessly to the system workstation.

Optional positioning accessories

Rotating tray upgrade permits one-handed manual portrait-to-landscape detector rotation inside the table or wall stand without removing the detector.
Fully extended steel slides activate locking mechanisms to protect the detector during loading and unloading.
Tray accommodates ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.
Optional Mobile Universal Positioning and Alignment Stand helps keep patients immobile during single or multiple exposures.
Slim, lightweight stand with height-adjustable handles and four 360° lockable swivel castors; can be moved into position and removed for storage.
Optional radiopaque ruler helps verify stitching accuracy.

Specification	Value
Handrail Height (Lowest):	21 in (53.3 cm)
Handrail Height (Highest):	76 in (193 cm)
Dimensions:	30 x 29 x 79 in (76.2 x 73.6 x 200.7 cm)
Weight	58 lbs (26.31 kg)
Option	Radiopaque ruler

Power requirements

Specification	Value
System ( DM-PSI):	115 / 230 - 240 VAC, 50 / 60 Hz, 15A
Tube Crane:	24 VDC 8A (supplied by the DM-PSI)
Table:	120 / 230 / 240 VAC, 50 / 60 Hz, 10A (supplied by the DM-PSI)
Wallstand:	24 VDC 1.2A (supplied by the DM-PSI)
Generator:	Generator specific (see 8000-DMOTC18S-OP for further details)

Read less...

To contact MedElec Solution Group about OTC18S Radiographic System use Get a quote.

9000-OTC18S_RevC-1(1.86MB)

Let MedElec Solution Group provide you with a quote

Supplier

Supplier: MedElec Solution Group

Location: Perth, WA

Trade With Confidence. The supplier of this item is approved as a Verified Supplier. Business registration, contact details and locations have been verified. MedElec Solution Group are also proudly displaying these credentials:

Location:

Perth , WA

Joined:

Oct 2026

Level:

Premium Storefront

Verified:
