DELWORKS EDR DR Detector

Supplier: MedElec Solution Group

DELWORKS EDR DR Detector

1/6

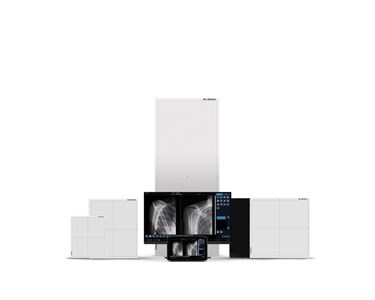

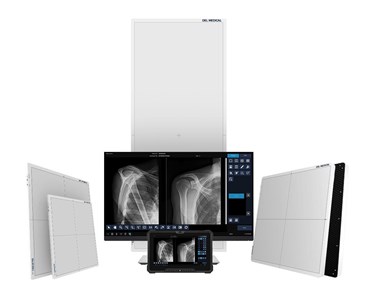

DELWORKS EDR is an intuitive, powerful wireless DR system with lightweight detectors, easy retrofits to any radiographic system and seamless integration in DEL MEDICAL systems.

Wireless DR with lightweight detectors

Imaging and workflow features

Pre-exposure display combines patient and procedure information, x-ray generator exposure factors, status and control functions on one screen.
Positioning guide prompts proper positioning for each view.
Deviation Index (DI) standard reporting assists in dose minimisation.
Exam-specific image processing automatically optimises images for selected patient anatomy.
Enhanced image processing parameters include APR-specific defaults and optional manual adjustment.
Image rotation in 90° steps, horizontal mirroring, and automatic or manual cropping to the collimated area.
Full array of measurement tools; easy verification and correction of image laterality and patient orientation.
Add orientation markers and predefined or free-text comments directly to acquired images.
PICC tool enhances visualisation of leads, lines and tubes.
Rejected-image management, analysis and reporting.
Detailed pixel-density histograms; exam-based selection of modified LUT (Look-Up Table); manual LUT, window and level adjustment.

Detectors

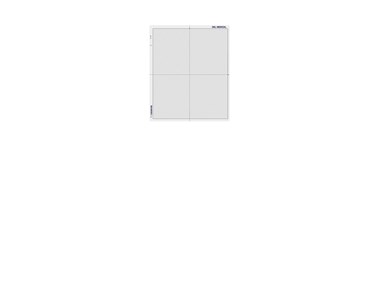

Ultra-light, glass-free portable 10 x 12 in (24 x 30 cm) Cesium wireless and 14 x 17 in (35 x 43 cm) detectors offer outstanding image quality and compact versatility to optimise workflow.

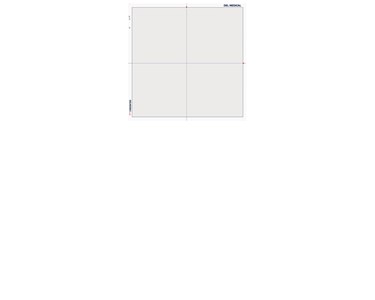

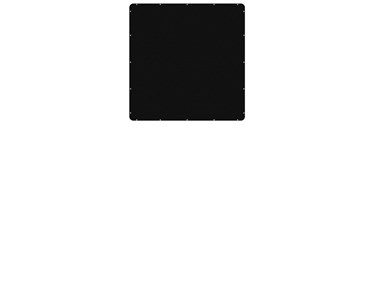

Large-format, glass-free lightweight 17 x 17 in (43 x 43 cm) Cesium wireless detector and large-format fixed detector minimise technologist interaction with upright exams in dual or multi-detector configurations.
Monolithic long-length detector supports full spine and long leg imaging, eliminates potential stitching misalignments, improves workflow and decreases patient dose.
E-Series wireless detectors feature EasyConnect Auto Exposure Detection (AED): standby operation awaits exposure from any X-ray source, then instantly captures and wirelessly transmits the image to the workstation.

Detectors	E24Cw2	E14Cw2	E17Cw2	E17C	LLI
Scintillator	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)
Detector Technology	a-SI	a-SI	a-SI	a-SI	a-SI
Active Image Area	10 x 12 in (24 x 30 cm)	14 x 17 in (35 x 43 cm)	17 x 17 in (43 x 43 cm)	17 x 17 in (43 x 43 cm)	17 x 42 in (43 x 107 cm)
Pixel Size	99 µm	99 µm	99 µm	148 µm	139 µm
A/D Conversion	16 bits	16 bits	16 bits	16 bits	16 bits
DQE @ 0 lp/mm	70%	70%	70%	65% (DQE @ 0.05 lp/mm)	0.67/0.71/-
X-Ray Generator Voltage	40 – 150 kV	40 – 150 kV	40 – 150 kV		40 – 150 kV
Spatial Resolution	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.6 lp/mm
Auto Exposure Detection (AED)	Full-field	Full-field	Full-field	No	Yes
Data Interface	IEEE 802.11 ax NFC & Infared	IEEE 802.11 ax NFC & Infared	IEEE 802.11 ax NFC & Infared	Ethernet cable	802.11/a/b/g/n 2.4 / 5 GHz or ethernet cable
Weight	3.5 lbs (1.6 kg)	5.3 lbs (2.4 kg)	6.6 lbs (3 kg)	25.8 lbs (11.7 kg)	22 lbs (10 kg)

Desktop Workstation

Specification	Value
Processor	3.2 GHz Intel® Core™ i5-6500
Memory	16 GB RAM
Hard Disk Drive	1 TB 7200 RPM
Operating System	Windows 10 Pro (64-bit) English
Dimensions	3.7 x 11.4 x 11.5 in (9.3 x 29 x 29.2 cm)
Weight	11.57 lbs (5.26 kg)

Desktop Workstation (Monitor)

Specification	Value
Display Type	IPS LED-backlit LCD monitor /TFT active matrix touchscreen
Diagonal Size	24 in (61 cm)
Aspect Ratio	16:9
Native Resolution	Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch	0.275 mm
Dimensions	With stand: 21.2 x 9.3 x 12.7 in (53.8 x 23.6 x 32.3 cm) Without stand: 21.2 x 2.1 x 12.6 in (53.8 x 5.3 x 32 cm)
Weight	6.88 lbs (3.12 kg)

Tablet Workstation

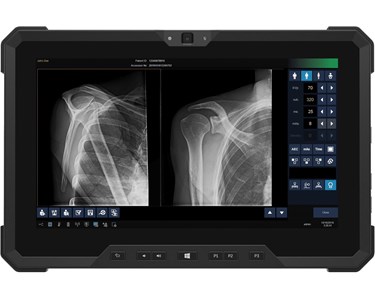

DELWORKS FIT Portable Tablet Workstation provides portable access to DELWORKS software anytime, anywhere.
User-friendly software on a rugged handheld tablet PC capable of withstanding harsh radiology or non-radiology environments.
Wireless connectivity, robust secure solid-state storage and Intel® Core™ i5 processing support rapid, productive patient-side studies.

Specification	Value
Processor	1.7 GHz Intel® Core™ i5
Memory	8 GB RAM
Hard Disk Drive	256 GB Solid State Drive (SSD)
Operating System	Windows 10 Pro (64-bit) English
Display	11.6" Full HD Touchscreen w/ Gorilla Glass (1920 x 1080, Outdoor-Readable / Glove Capable)
Keyboard / Input	Touchscreen
Battery	2-cell (34 Wh) Lithium-Ion battery
Dimensions	12.3 x 8 0.96 in (31.2 x 20.3 x 2.4 cm)
Weight	2.82 lbs (1.3 kg) with single 2-cell battery

Laptop Workstation

Portable option with built-in keyboard input, robust SSD storage and full HD display for secure storage and outstanding image display quality.

Specification	Value
Processor	3.0 GHz Intel® Core™ i5
Memory	8 GB RAM
Hard Disk Drive	512 GB Solid State Drive (SSD)
Operating System	Windows 10 Pro (64-bit) English
Display Type	Anti-glare non-touch display
Diagonal Size	15.6 in (39.6 cm)
Aspect Ratio	16:9
Native Resolution	Full HD (1080p) 1920 x 1080 at 60 Hz
Wireless	802.11ac Dual-Band Wireless Adapter (WLAN)
Battery	3-cell (51 WH) Lithium-Ion battery
Power Adapter	65W AC adapter with E5 US power cord
Dimensions	14.1 x 0.79 x 9.3 in (35.8 x 2 x 23.6 cm)
Weight	4.03 lbs (1.82 kg)

DR QC Phantom

Comprehensive quality assurance testing for DR detectors and associated software, with seven assessments for monthly and semi-annual evaluation:
Exposure linearity and sensitivity.
High and low contrast reproducibility.
Artefact and residual image detection.
Image resolution.
Collimator beam alignment.
Measurement tool accuracy.
Display jitter QA testing.

Imaging and workflow features

Pre-exposure display combines patient and procedure information, x-ray generator exposure factors, status and control functions on one screen.
Positioning guide prompts proper positioning for each view.
Deviation Index (DI) standard reporting assists in dose minimisation.
Exam-specific image processing automatically optimises images for selected patient anatomy.
Enhanced image processing parameters include APR-specific defaults and optional manual adjustment.
Image rotation in 90° steps, horizontal mirroring, and automatic or manual cropping to the collimated area.
Full array of measurement tools; easy verification and correction of image laterality and patient orientation.
Add orientation markers and predefined or free-text comments directly to acquired images.
PICC tool enhances visualisation of leads, lines and tubes.
Rejected-image management, analysis and reporting.
Detailed pixel-density histograms; exam-based selection of modified LUT (Look-Up Table); manual LUT, window and level adjustment.

Detectors

Ultra-light, glass-free portable 10 x 12 in (24 x 30 cm) Cesium wireless and 14 x 17 in (35 x 43 cm) detectors offer outstanding image quality and compact versatility to optimise workflow.
Large-format, glass-free lightweight 17 x 17 in (43 x 43 cm) Cesium wireless detector and large-format fixed detector minimise technologist interaction with upright exams in dual or multi-detector configurations.
Monolithic long-length detector supports full spine and long leg imaging, eliminates potential stitching misalignments, improves workflow and decreases patient dose.
E-Series wireless detectors feature EasyConnect Auto Exposure Detection (AED): standby operation awaits exposure from any X-ray source, then instantly captures and wirelessly transmits the image to the workstation.

Detectors	E24Cw2	E14Cw2	E17Cw2	E17C	LLI
Scintillator	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)
Detector Technology	a-SI	a-SI	a-SI	a-SI	a-SI
Active Image Area	10 x 12 in (24 x 30 cm)	14 x 17 in (35 x 43 cm)	17 x 17 in (43 x 43 cm)	17 x 17 in (43 x 43 cm)	17 x 42 in (43 x 107 cm)
Pixel Size	99 µm	99 µm	99 µm	148 µm	139 µm
A/D Conversion	16 bits	16 bits	16 bits	16 bits	16 bits
DQE @ 0 lp/mm	70%	70%	70%	65% (DQE @ 0.05 lp/mm)	0.67/0.71/-
X-Ray Generator Voltage	40 – 150 kV	40 – 150 kV	40 – 150 kV		40 – 150 kV
Spatial Resolution	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.6 lp/mm
Auto Exposure Detection (AED)	Full-field	Full-field	Full-field	No	Yes
Data Interface	IEEE 802.11 ax NFC & Infared	IEEE 802.11 ax NFC & Infared	IEEE 802.11 ax NFC & Infared	Ethernet cable	802.11/a/b/g/n 2.4 / 5 GHz or ethernet cable
Weight	3.5 lbs (1.6 kg)	5.3 lbs (2.4 kg)	6.6 lbs (3 kg)	25.8 lbs (11.7 kg)	22 lbs (10 kg)

Desktop Workstation

Specification	Value
Processor	3.2 GHz Intel® Core™ i5-6500
Memory	16 GB RAM
Hard Disk Drive	1 TB 7200 RPM
Operating System	Windows 10 Pro (64-bit) English
Dimensions	3.7 x 11.4 x 11.5 in (9.3 x 29 x 29.2 cm)
Weight	11.57 lbs (5.26 kg)

Desktop Workstation (Monitor)

Specification	Value
Display Type	IPS LED-backlit LCD monitor /TFT active matrix touchscreen
Diagonal Size	24 in (61 cm)
Aspect Ratio	16:9
Native Resolution	Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch	0.275 mm
Dimensions	With stand: 21.2 x 9.3 x 12.7 in (53.8 x 23.6 x 32.3 cm) Without stand: 21.2 x 2.1 x 12.6 in (53.8 x 5.3 x 32 cm)
Weight	6.88 lbs (3.12 kg)

Tablet Workstation

DELWORKS FIT Portable Tablet Workstation provides portable access to DELWORKS software anytime, anywhere.
User-friendly software on a rugged handheld tablet PC capable of withstanding harsh radiology or non-radiology environments.
Wireless connectivity, robust secure solid-state storage and Intel® Core™ i5 processing support rapid, productive patient-side studies.

Specification	Value
Processor	1.7 GHz Intel® Core™ i5
Memory	8 GB RAM
Hard Disk Drive	256 GB Solid State Drive (SSD)
Operating System	Windows 10 Pro (64-bit) English
Display	11.6" Full HD Touchscreen w/ Gorilla Glass (1920 x 1080, Outdoor-Readable / Glove Capable)
Keyboard / Input	Touchscreen
Battery	2-cell (34 Wh) Lithium-Ion battery
Dimensions	12.3 x 8 0.96 in (31.2 x 20.3 x 2.4 cm)
Weight	2.82 lbs (1.3 kg) with single 2-cell battery

Laptop Workstation

Portable option with built-in keyboard input, robust SSD storage and full HD display for secure storage and outstanding image display quality.

Specification	Value
Processor	3.0 GHz Intel® Core™ i5
Memory	8 GB RAM
Hard Disk Drive	512 GB Solid State Drive (SSD)
Operating System	Windows 10 Pro (64-bit) English
Display Type	Anti-glare non-touch display
Diagonal Size	15.6 in (39.6 cm)
Aspect Ratio	16:9
Native Resolution	Full HD (1080p) 1920 x 1080 at 60 Hz
Wireless	802.11ac Dual-Band Wireless Adapter (WLAN)
Battery	3-cell (51 WH) Lithium-Ion battery
Power Adapter	65W AC adapter with E5 US power cord
Dimensions	14.1 x 0.79 x 9.3 in (35.8 x 2 x 23.6 cm)
Weight	4.03 lbs (1.82 kg)

DR QC Phantom

Comprehensive quality assurance testing for DR detectors and associated software, with seven assessments for monthly and semi-annual evaluation:
Exposure linearity and sensitivity.
High and low contrast reproducibility.
Artefact and residual image detection.
Image resolution.
Collimator beam alignment.
Measurement tool accuracy.
Display jitter QA testing.
