Vieworks DR detectors offer integration with DEL MEDICAL or retrofit to any radiographic system, with customisable touch GUI, automated image processing and DICOM 3.0 support.

DICOM 3.0 MWL, send, print

Features

Affordable DR solution for integration with DEL MEDICAL and retrofit to any radiographic system.

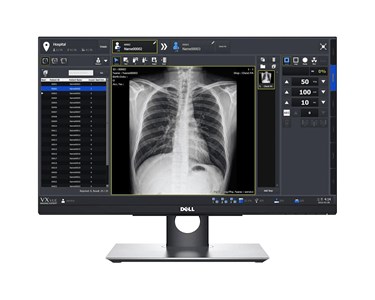

User-friendly GUI design and touch GUI, with customisation of user features and UI theme.
Statistic function with dose and exam management.
Automated processing: auto cropping, grid suppression, stitching, labelling, rotation, free rotation and multi-layout.
Main integration systems include generator, collimator and DAP.
DICOM 3.0 MWL, send, print and MPPS.
Stable and reliable AED function enables detector operation without a wire connection or electronic interface with an x-ray generator.

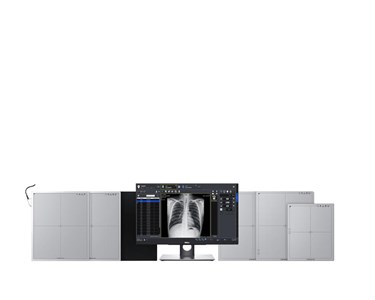

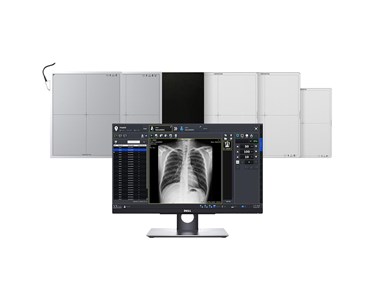

Detector options

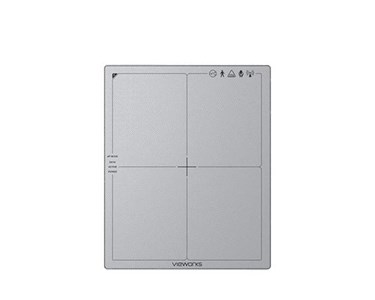

1012NAW/BW: flat panel detector ideal for small anatomy and paediatric imaging.

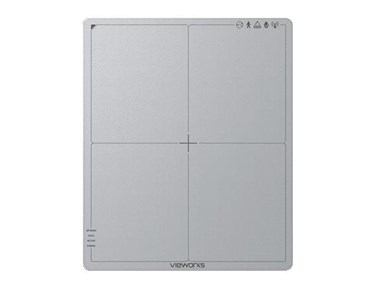

1417NA/B: ultra lightweight detector with supreme image quality.
1417SA/B: lightweight, wired flat panel detector.

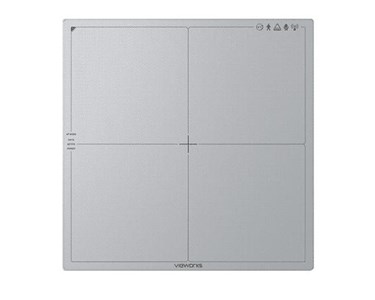

1717NA/B: wireless flat panel detector with a wide active area.
1717V: fixed detector for digital radiography.
2350VAW / 2530VAW PLUS, 3643VAW / 3643VAW PLUS and 4343VAW / 4343VAW PLUS: wireless portable flat panel detectors for digital radiography.

Detector specifications

Detectors	1012NAW/BW	1417NA/B	1417SA/B	1717NA/B	1717V	2350VAW / 2530VAW PLUS	3643VAW / 3643VAW PLUS	4343VAW / 4343VAW PLUS
Detector Size	10 X 12 in (24 x 30 cm)	14 x 17 in (35 x 43 cm)	14 x 17 in (35 x 43 cm)	17 x 17 in (43 x 43 cm)	17 x 17 in (43 x 43 cm)	10 x 12 in (25 x 32 cm)	14 x 17 in (35 x 43 cm)	17 x 17 in (43 x 43 cm)
Scintillator	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)
Connection Type	Tethered / Wireless	Tethered / Wireless	Tethered	Tethered / Wireless	Fixed	Tethered / Wireless	Tethered / Wireless	Tethered / Wireless
Pixel Matrix	2048 x 2560	2560 x 3072	2560 x 3072	3072 x 3072	3072 x 3072	2048 x 2560	2560 x 3072	3072 x 3072
Pixel Pitch	124 µm	140 µm	140 µm	140 µm	140 µm	124 µm	140 µm	140 µm
Dimensions	13.8 x 11.2 x 0.6 in	15 x 18 x 0.6 in	15 x 18 x 0.6 in	18 x 18 x 0.6 in	18 x 18 x 0.6 in	11.3 x 13.8 x 0.6 in	15 x 18 x 0.6 in	18 x 18 x 0.6 in
Weight	4.8 lbs	6.4 lbs	7 lbs / 6.8 lbs	9.8 lbs	9.9 lbs	4.3 / 4.6 lbs	6.5 / 6.8 lbs (one battery) 6.9 / 7.3 lbs (two batteries)	7.6 / 8.2 lbs (one battery) 8 / 8.6 lbs (two batteries)
Bit Depth (A/D)	16-bit	16-bit	14-bit	16-bit	16-bit	16-bit	16-bit	16-bit
Image Display	3 seconds / 1.5 seconds	3 seconds / 1.5 seconds	1.2 seconds	3 seconds / 1.5 seconds	2 seconds	3 seconds	3 seconds	3 seconds
Cycle Time	15 seconds	10 seconds	15 seconds	15 seconds	15 seconds	4 seconds	4 seconds	4 seconds
Limiting Resoultion	4 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm

Battery specifications

Detectors	Battery
1012NAW/BW	Lithium Ion 3,100 mAh
1417NA/B	Lithium Ion 3,100 mAh x 2
1717NA/B	Lithium Ion 3,100 mAh x 2
2350VAW / 2530VAW PLUS	Lithium Ion 3,400 mAh x1
3643VAW / 3643VAW PLUS	Lithium Ion 3,400 mAh x2
4343VAW / 4343VAW PLUS	Lithium Ion 3,400 mAh x2

DR QC Phantom

Enables comprehensive quality assurance testing for DR detectors and associated software.
Supports seven assessments for monthly and semi-annual evaluation: exposure linearity and sensitivity; high and low contrast reproducibility; artifact and residual image detection; image resolution; collimator beam alignment; measurement tool accuracy; and display jitter QA testing.

Features

Affordable DR solution for integration with DEL MEDICAL and retrofit to any radiographic system.
User-friendly GUI design and touch GUI, with customisation of user features and UI theme.
Statistic function with dose and exam management.
Automated processing: auto cropping, grid suppression, stitching, labelling, rotation, free rotation and multi-layout.
Main integration systems include generator, collimator and DAP.
DICOM 3.0 MWL, send, print and MPPS.
Stable and reliable AED function enables detector operation without a wire connection or electronic interface with an x-ray generator.

Detector options

1012NAW/BW: flat panel detector ideal for small anatomy and paediatric imaging.
1417NA/B: ultra lightweight detector with supreme image quality.
1417SA/B: lightweight, wired flat panel detector.
1717NA/B: wireless flat panel detector with a wide active area.
1717V: fixed detector for digital radiography.
2350VAW / 2530VAW PLUS, 3643VAW / 3643VAW PLUS and 4343VAW / 4343VAW PLUS: wireless portable flat panel detectors for digital radiography.

Detector specifications

Detectors	1012NAW/BW	1417NA/B	1417SA/B	1717NA/B	1717V	2350VAW / 2530VAW PLUS	3643VAW / 3643VAW PLUS	4343VAW / 4343VAW PLUS
Detector Size	10 X 12 in (24 x 30 cm)	14 x 17 in (35 x 43 cm)	14 x 17 in (35 x 43 cm)	17 x 17 in (43 x 43 cm)	17 x 17 in (43 x 43 cm)	10 x 12 in (25 x 32 cm)	14 x 17 in (35 x 43 cm)	17 x 17 in (43 x 43 cm)
Scintillator	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI) Gadolinium Oxysulfide	Cesium Iodide (CsI)	Cesium Iodide (CsI)	Cesium Iodide (CsI)
Connection Type	Tethered / Wireless	Tethered / Wireless	Tethered	Tethered / Wireless	Fixed	Tethered / Wireless	Tethered / Wireless	Tethered / Wireless
Pixel Matrix	2048 x 2560	2560 x 3072	2560 x 3072	3072 x 3072	3072 x 3072	2048 x 2560	2560 x 3072	3072 x 3072
Pixel Pitch	124 µm	140 µm	140 µm	140 µm	140 µm	124 µm	140 µm	140 µm
Dimensions	13.8 x 11.2 x 0.6 in	15 x 18 x 0.6 in	15 x 18 x 0.6 in	18 x 18 x 0.6 in	18 x 18 x 0.6 in	11.3 x 13.8 x 0.6 in	15 x 18 x 0.6 in	18 x 18 x 0.6 in
Weight	4.8 lbs	6.4 lbs	7 lbs / 6.8 lbs	9.8 lbs	9.9 lbs	4.3 / 4.6 lbs	6.5 / 6.8 lbs (one battery) 6.9 / 7.3 lbs (two batteries)	7.6 / 8.2 lbs (one battery) 8 / 8.6 lbs (two batteries)
Bit Depth (A/D)	16-bit	16-bit	14-bit	16-bit	16-bit	16-bit	16-bit	16-bit
Image Display	3 seconds / 1.5 seconds	3 seconds / 1.5 seconds	1.2 seconds	3 seconds / 1.5 seconds	2 seconds	3 seconds	3 seconds	3 seconds
Cycle Time	15 seconds	10 seconds	15 seconds	15 seconds	15 seconds	4 seconds	4 seconds	4 seconds
Limiting Resoultion	4 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm	3.5 lp/mm

Battery specifications

Detectors	Battery
1012NAW/BW	Lithium Ion 3,100 mAh
1417NA/B	Lithium Ion 3,100 mAh x 2
1717NA/B	Lithium Ion 3,100 mAh x 2
2350VAW / 2530VAW PLUS	Lithium Ion 3,400 mAh x1
3643VAW / 3643VAW PLUS	Lithium Ion 3,400 mAh x2
4343VAW / 4343VAW PLUS	Lithium Ion 3,400 mAh x2

DR QC Phantom

Enables comprehensive quality assurance testing for DR detectors and associated software.
Supports seven assessments for monthly and semi-annual evaluation: exposure linearity and sensitivity; high and low contrast reproducibility; artifact and residual image detection; image resolution; collimator beam alignment; measurement tool accuracy; and display jitter QA testing.

Read less...
