MDR Mobile Radiography

Supplier: MedElec Solution Group

1/6

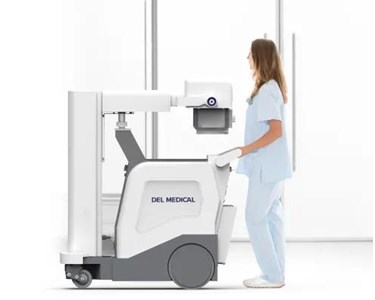

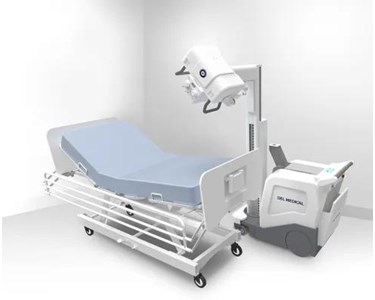

MDR is a compact, highly manoeuvrable, high-powered mobile imaging system with a collapsible column and built-in DR workstation.

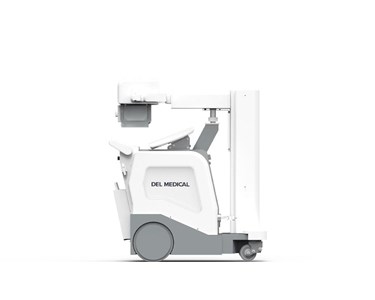

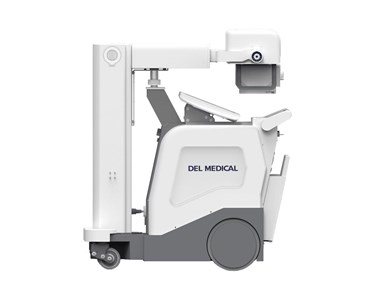

Compact collapsible column

Features

Compact collapsible column allows navigation through crowded spaces without the visual obstruction of a standard column.
Motor-assisted drive adapts to the operator’s preferred walking pace for smooth, predictable control in tight spaces.
Comfortable, fail-safe drive handle automatically stops system movements when released.

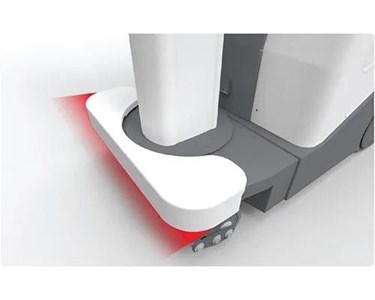

Touch-sensing anti-collision bumper alerts users to accidental contact.
Tube-head controls provide subtle forwards, backwards, right and left movement for precise bedside examination setup, without returning to the drive handle.
DELWORKS-driven workstation integrates all system components, allowing technologists to view and continuously monitor vital generator and detector information.

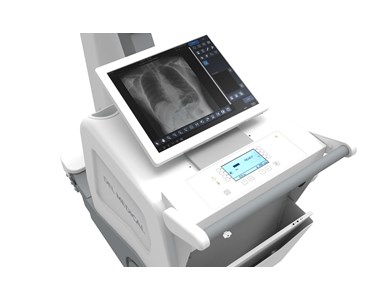

Large touchscreen monitor has a high contrast ratio and wide viewing angles.
Compatible with E-Series wireless detectors in standard 14 x 17 in (35 x 43 cm) and 10 x 12 in (24 x 30 cm) sizes.
Large storage area holds accessories including grids, additional batteries and DELWORKS E-Series DR detectors. A detector charging cable is incorporated.
Maintenance-free lead-acid battery design provides up to 8 hours of movement and imaging without charging.
Power cord reel provides access to nearby outlets without tangled cords.

MDR Mobile System

Specification	Value
Width (Transport Position)	22.7 in (57.6 cm)
Length (Transport Position)	46.2 in (117.3 cm)
Height (Transport Position)	53.3 in (135.4 cm)
Transport Handle Height	35 in (89 cm)
Focus-ground Distance	27.2 to 80. in (69 to 204.5 cm)
Max Height	85.7 in (217.7 cm)
Arm Extension (Telescopic)	14.2 in (36 cm)
Front Range	28 to 42 in (71 to 107 cm)
Lateral Range	20 to 34.5 in (51.7 to 87.7 cm)
Rotation of X-ray Tube Head	A-swivel, ±180° B-swivel, ±320° (from transport position) C-swivel, 127° (90° forward, 37° backward)
Speed Forwards (In Transport Position)	0-3 mph (0 – 1.4 m/s)
Speed Forwards (In Working Position)	0-1.6 mph (0 – 0.72 m/s)
Speed Backwards	0-1.6 mph (0 – 0.72 m/s)
Weight (Batteries Included)	959 lbs (435 kg)

DR Workstation

Specification	Value
Operating System	Windows 10 Pro 64-bit
Processor	2.3 GHz Intel Core i5
Storage	500 GB SSD
Memory	8 GB RAM
Display	19" touchscreen monitor

Features

Compact collapsible column allows navigation through crowded spaces without the visual obstruction of a standard column.
Motor-assisted drive adapts to the operator’s preferred walking pace for smooth, predictable control in tight spaces.
Comfortable, fail-safe drive handle automatically stops system movements when released.
Touch-sensing anti-collision bumper alerts users to accidental contact.
Tube-head controls provide subtle forwards, backwards, right and left movement for precise bedside examination setup, without returning to the drive handle.
DELWORKS-driven workstation integrates all system components, allowing technologists to view and continuously monitor vital generator and detector information.
Large touchscreen monitor has a high contrast ratio and wide viewing angles.
Compatible with E-Series wireless detectors in standard 14 x 17 in (35 x 43 cm) and 10 x 12 in (24 x 30 cm) sizes.
Large storage area holds accessories including grids, additional batteries and DELWORKS E-Series DR detectors. A detector charging cable is incorporated.
Maintenance-free lead-acid battery design provides up to 8 hours of movement and imaging without charging.
Power cord reel provides access to nearby outlets without tangled cords.

MDR Mobile System

Specification	Value
Width (Transport Position)	22.7 in (57.6 cm)
Length (Transport Position)	46.2 in (117.3 cm)
Height (Transport Position)	53.3 in (135.4 cm)
Transport Handle Height	35 in (89 cm)
Focus-ground Distance	27.2 to 80. in (69 to 204.5 cm)
Max Height	85.7 in (217.7 cm)
Arm Extension (Telescopic)	14.2 in (36 cm)
Front Range	28 to 42 in (71 to 107 cm)
Lateral Range	20 to 34.5 in (51.7 to 87.7 cm)
Rotation of X-ray Tube Head	A-swivel, ±180° B-swivel, ±320° (from transport position) C-swivel, 127° (90° forward, 37° backward)
Speed Forwards (In Transport Position)	0-3 mph (0 – 1.4 m/s)
Speed Forwards (In Working Position)	0-1.6 mph (0 – 0.72 m/s)
Speed Backwards	0-1.6 mph (0 – 0.72 m/s)
Weight (Batteries Included)	959 lbs (435 kg)

DR Workstation

Specification	Value
Operating System	Windows 10 Pro 64-bit
Processor	2.3 GHz Intel Core i5
Storage	500 GB SSD
Memory	8 GB RAM
Display	19" touchscreen monitor
