Radiographic System | FMT18M Premium floor-mounted system

Supplier: MedElec Solution Group

1/6

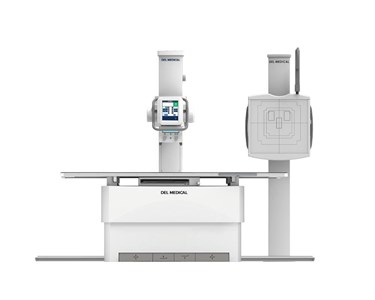

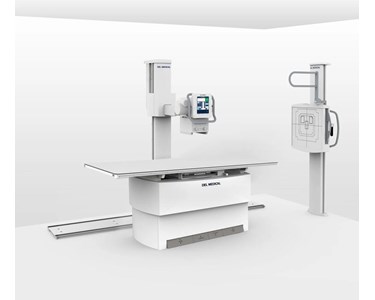

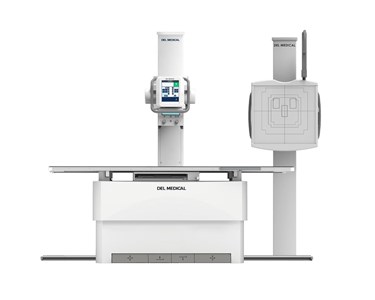

The FMT18M is a premium floor-mounted system with an LCD touchscreen. Its technologist-friendly console provides large text readouts and integrated tube stand operation.

Video for Radiographic System | FMT18M Premium floor-mounted system

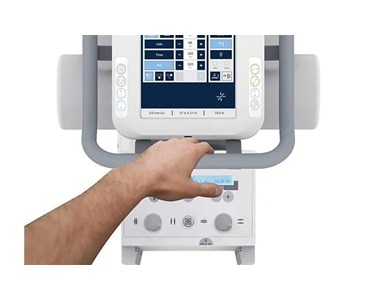

10.4" technologist-friendly touchscreen

Features

Technologist-friendly 10.4" touchscreen console with large text readouts and integrated tube stand operation. Ergonomically placed movement identification buttons support accurate view setup.
Extensive longitudinal and vertical movement and a 180° rotating tube column enable positioning for cross-table lateral exams.
An all-lock release sensor above the bottom section of the tube head handle unlocks the system when the user grabs the bottom handle, enabling rapid manual positioning.
DELWORKS DR acquisition software’s pre-programmed APR settings automatically select the proper field-of-view for each body part, accelerating patient positioning and reducing radiation exposure.

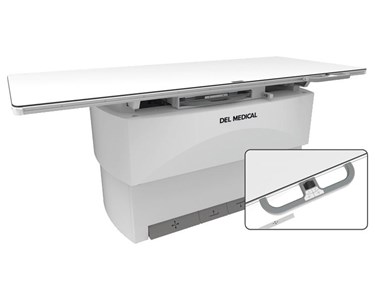

EV800 elevating four-way float top table features an exclusive four-point lift system, an exceptionally quiet motor-drive and a smooth, scratch-resistant tabletop. The tabletop lowers to 22 in for patient transfers and adjustments. Recessed foot treadles and table-side controls enable stable continuous movement.
VS300 wall stand features electromagnetic ‘fail-safe’ locks, receptor movement to the floor, patient-side handgrips and optional overhead handgrips for upright exams. Its technologist handgrip angles with the operator’s wrist during vertical receptor travel.

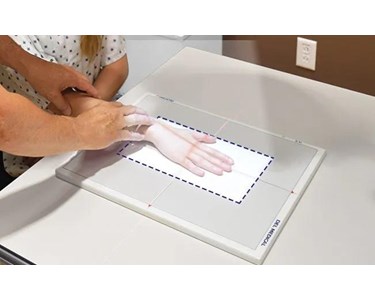

Rotating tray supports one-handed manual DR detector rotation from portrait to landscape without removing the detector. Fully extended steel slides activate locking mechanisms for detector protection during loading and unloading. Accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

FMT18M Tube Stand

Specification	Value
Minimum Ceiling Height	87 in (221 cm)
Column Height	85.4 in (217 cm)
Vertical Travel	64.5 in (164 cm) total
Floor to Focal Spot (Standard Mount)	Minimum 11 in (28 cm) Maximum 75.5 in (192 cm)
Longitudinal Travel	94 in (239 cm)
Floor Plate Longitudinal Length	120 in (305 cm)
Transverse Travel	11 in (28 cm)
Tube, Collimator, and Cable Support Capacity	88 lbs (40 kg)
Weight (Including Floor Track and Components)	950 lbs (431 kg)
Column Rotation	180° where installation permits
Tube Rotation	±180° detents for lateral decubitus projections
Base Assembly to Rear Wall	8 in (20.5 cm)
Power Requirements	99-132 / 198-264 VAC 50 / 60 Hz
Options	– Manual collimator – 8 or 12 ft floor plates – DAP (Dose Area Product) – Full system integration (with or without generator control)

EV800 Elevating Table

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	86.5 in (220 cm)
Tabletop Width	36 in (91 cm)
Weight	563 lbs (256 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

VS300 Wall Stand

Specification	Value
Height/Vertical Travel	84 in (213.4 cm)
Depth	13.4 in (34 cm)
Receptor Width	24.6 in (62.5 cm)
Receptor Height	26.5 in (67.3 cm)
Weight (with Receptor)	200 lbs (91 kg)
Power Requirements	24 V DC at 1.25 Amps
Option	– Floor mount kit for freestanding version – Wall mount bracket – Rotating cassette tray

Features

Technologist-friendly 10.4" touchscreen console with large text readouts and integrated tube stand operation. Ergonomically placed movement identification buttons support accurate view setup.
Extensive longitudinal and vertical movement and a 180° rotating tube column enable positioning for cross-table lateral exams.
An all-lock release sensor above the bottom section of the tube head handle unlocks the system when the user grabs the bottom handle, enabling rapid manual positioning.
DELWORKS DR acquisition software’s pre-programmed APR settings automatically select the proper field-of-view for each body part, accelerating patient positioning and reducing radiation exposure.
EV800 elevating four-way float top table features an exclusive four-point lift system, an exceptionally quiet motor-drive and a smooth, scratch-resistant tabletop. The tabletop lowers to 22 in for patient transfers and adjustments. Recessed foot treadles and table-side controls enable stable continuous movement.
VS300 wall stand features electromagnetic ‘fail-safe’ locks, receptor movement to the floor, patient-side handgrips and optional overhead handgrips for upright exams. Its technologist handgrip angles with the operator’s wrist during vertical receptor travel.
Rotating tray supports one-handed manual DR detector rotation from portrait to landscape without removing the detector. Fully extended steel slides activate locking mechanisms for detector protection during loading and unloading. Accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

FMT18M Tube Stand

Specification	Value
Minimum Ceiling Height	87 in (221 cm)
Column Height	85.4 in (217 cm)
Vertical Travel	64.5 in (164 cm) total
Floor to Focal Spot (Standard Mount)	Minimum 11 in (28 cm) Maximum 75.5 in (192 cm)
Longitudinal Travel	94 in (239 cm)
Floor Plate Longitudinal Length	120 in (305 cm)
Transverse Travel	11 in (28 cm)
Tube, Collimator, and Cable Support Capacity	88 lbs (40 kg)
Weight (Including Floor Track and Components)	950 lbs (431 kg)
Column Rotation	180° where installation permits
Tube Rotation	±180° detents for lateral decubitus projections
Base Assembly to Rear Wall	8 in (20.5 cm)
Power Requirements	99-132 / 198-264 VAC 50 / 60 Hz
Options	– Manual collimator – 8 or 12 ft floor plates – DAP (Dose Area Product) – Full system integration (with or without generator control)

EV800 Elevating Table

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	86.5 in (220 cm)
Tabletop Width	36 in (91 cm)
Weight	563 lbs (256 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

VS300 Wall Stand

Specification	Value
Height/Vertical Travel	84 in (213.4 cm)
Depth	13.4 in (34 cm)
Receptor Width	24.6 in (62.5 cm)
Receptor Height	26.5 in (67.3 cm)
Weight (with Receptor)	200 lbs (91 kg)
Power Requirements	24 V DC at 1.25 Amps
Option	– Floor mount kit for freestanding version – Wall mount bracket – Rotating cassette tray
