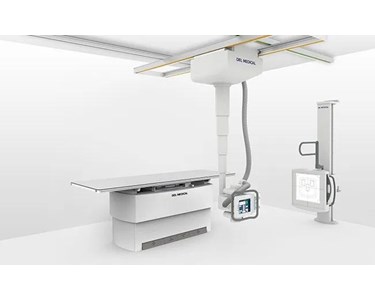

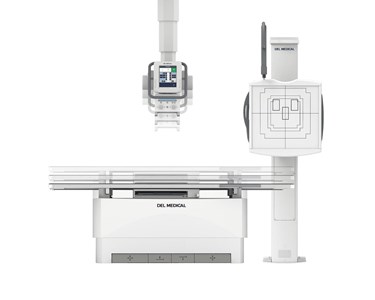

The OTC18T is a premium overhead tube crane system with an LCD touchscreen and vertical tracking.

Video for Radiographic System | OTC18T Tube Crane

vertical tracking

Features

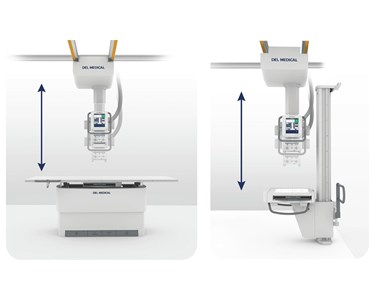

Synchronised motorised vertical movement maintains precise centring between the X-ray tube and image receptor. Functions include vertical tracking to the wall stand and SID tracking to the elevating table or horizontally positioned wall stand, reducing manual adjustments.
Technologist-friendly 10.4 in touchscreen console displays tube angulation, SID values and generator control options for system integration.
Colour-coded movement identification buttons support precise view setup. Electromagnetic braking enables effortless movement and fast, secure tube-head readjustments.
Five-tier telescoping column provides 71 in (180 cm) vertical movement for head-to-toe radiographic procedures, including upright weight-bearing and recumbent tabletop examinations.
All-lock release sensor above the bottom section of the tube-head handle unlocks the system when the bottom handle is gripped, enabling rapid manual positioning.
Automatic field-of-view selection for each body part accelerates patient positioning and reduces radiation exposure through DELWORKS DR acquisition software’s pre-programmed APR settings.

OTC18T Tube Crane Specifications

Specification	Value
Room Height	105 – 119 in (267 – 302 cm)
Room Height (with Optional Telescopic Extension)	105 – 127 in (267 – 322 cm)
Vertical Telescopic Travel Range	70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance / 15.5 in (39.4 cm) focal spot to floor distance with a 9 ft ceiling height
Longitudinal Travel Range	Standard: 14 ft rail included, 136.2 in (346 cm) min Optional: rail extensions: 219.9 in (558.5 cm) max
Transverse Travel Range	Standard: 10 ft bridge with 9.8 ft transverse carriage: 86.6 in (220 cm) min Optional: 13 ft bridge with 13.1 ft transverse carriage: 139.7 in (355 cm) max
Longitudinal Detent Positions	Configurable during installation
Tube Rotation Range (Horizontal Axis)	-120°, +120°, Detent positions at -90°, 0°, +90°
Tube Rotation Range (Vertical Axis)	-182°, +154°, Detent positions at -180°, -90°, 0°, +90°
Weight (with Collimator and Tube)	507 lbs (230 kg)
Power Requirements	100-240 VAC 50/60 Hz, 3.6 Amps

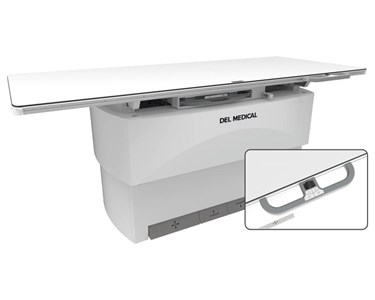

EV800 Elevating Table

Durable elevating four-way float top table with an exclusive four-point lift system and exceptionally quiet motor-drive.
Smooth, scratch-resistant tabletop lowers to 22 in for patient transfers and adjustments. Recessed foot treadles and table-side controls enable stable continuous movement.

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	86.5 in (220 cm)
Tabletop Width	36 in (91 cm)
Weight	563 lbs (256 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

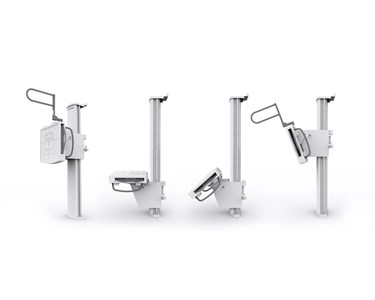

VT300 Tilting Wall Stand

Tilting image receptor supports comfortable, precise standing or seated examinations. Counterbalanced adjustments allow smooth operation with light effort, accommodating users regardless of size or strength.

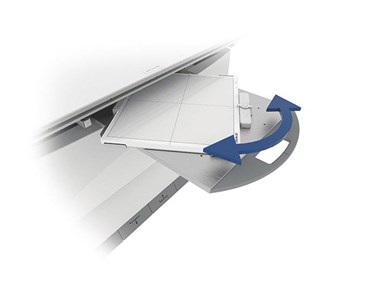

Rotating tray permits stable, one-handed portrait-to-landscape DR detector positioning without removing the detector. Fully extended steel slides activate protective locking mechanisms during loading and unloading; accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

Specification	Value
Receptor Tilt Range	+90°/ 20°
Vertical Travel Range, Vertical Receptor	15.5 – 71.1 in (39.4 – 180.6 cm)
Vertical Travel Range, +90° Receptor	Minimum 25.5 in (64.8 cm)
Height	82.24 in (211 cm)
Depth, Vertical Receptor	30 in (76 cm)
Receptor Width	27.25 in (69.2 cm)
Receptor Height	26.5 in (67.3 cm)
Front Panel Aluminum Equivalency	0.4 mm
Weight	765.5 lbs (347.2 kg)
Weight (without Counterweights)	368.5 lbs (167 kg)
Power Requirements	120/230-240 VAC 50/60 Hz
Options	– 8 in (20 cm) extension box extends receptor from the column, enabling supine exams – Variety of grid options – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating tray – Left or right sideload – AEC – Vertical auto-tracking with OTC18T

Features

Synchronised motorised vertical movement maintains precise centring between the X-ray tube and image receptor. Functions include vertical tracking to the wall stand and SID tracking to the elevating table or horizontally positioned wall stand, reducing manual adjustments.
Technologist-friendly 10.4 in touchscreen console displays tube angulation, SID values and generator control options for system integration.
Colour-coded movement identification buttons support precise view setup. Electromagnetic braking enables effortless movement and fast, secure tube-head readjustments.
Five-tier telescoping column provides 71 in (180 cm) vertical movement for head-to-toe radiographic procedures, including upright weight-bearing and recumbent tabletop examinations.
All-lock release sensor above the bottom section of the tube-head handle unlocks the system when the bottom handle is gripped, enabling rapid manual positioning.
Automatic field-of-view selection for each body part accelerates patient positioning and reduces radiation exposure through DELWORKS DR acquisition software’s pre-programmed APR settings.

OTC18T Tube Crane Specifications

Specification	Value
Room Height	105 – 119 in (267 – 302 cm)
Room Height (with Optional Telescopic Extension)	105 – 127 in (267 – 322 cm)
Vertical Telescopic Travel Range	70.8 in (180 cm) with minimum 32.7 in (83 cm) focal spot to ceiling distance / 15.5 in (39.4 cm) focal spot to floor distance with a 9 ft ceiling height
Longitudinal Travel Range	Standard: 14 ft rail included, 136.2 in (346 cm) min Optional: rail extensions: 219.9 in (558.5 cm) max
Transverse Travel Range	Standard: 10 ft bridge with 9.8 ft transverse carriage: 86.6 in (220 cm) min Optional: 13 ft bridge with 13.1 ft transverse carriage: 139.7 in (355 cm) max
Longitudinal Detent Positions	Configurable during installation
Tube Rotation Range (Horizontal Axis)	-120°, +120°, Detent positions at -90°, 0°, +90°
Tube Rotation Range (Vertical Axis)	-182°, +154°, Detent positions at -180°, -90°, 0°, +90°
Weight (with Collimator and Tube)	507 lbs (230 kg)
Power Requirements	100-240 VAC 50/60 Hz, 3.6 Amps

EV800 Elevating Table

Durable elevating four-way float top table with an exclusive four-point lift system and exceptionally quiet motor-drive.
Smooth, scratch-resistant tabletop lowers to 22 in for patient transfers and adjustments. Recessed foot treadles and table-side controls enable stable continuous movement.

Specification	Value
Patient Load Capacity	800 lbs (363 kg)
Table Base Length	53 in (135 cm)
Table Base Width	25 in (64 cm)
Total Tabletop Movement	Longitudinal ±19.75 in (50 cm) Transverse ±6.5 in (16.5 cm)
Variable Height	22.25 – 34.25 in (56.5 – 87 cm)
Total Bucky Travel	±8.5 in (22 cm)
Tabletop-to-film Distance	3.2 in (8 cm) 2.7 in (6.9 cm) upper position for special applications
Tabletop Beam Attenuation	Standard: less than 0.7 mm aluminum Carbon fiber: less than 0.4 mm aluminum
Tabletop Length	86.5 in (220 cm)
Tabletop Width	36 in (91 cm)
Weight	563 lbs (256 kg)
Power Requirements	120 / 230-240 VAC 50 / 60 Hz 10 Amps
Options	– 78 in (198 cm) tabletop length / 32 in (81 cm) tabletop width – Carbon fiber – Lateral cassette holder – Table-side patient handgrips – Table-side hand controls – Compression band – Grids – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating cassette tray – AEC

VT300 Tilting Wall Stand

Tilting image receptor supports comfortable, precise standing or seated examinations. Counterbalanced adjustments allow smooth operation with light effort, accommodating users regardless of size or strength.
Rotating tray permits stable, one-handed portrait-to-landscape DR detector positioning without removing the detector. Fully extended steel slides activate protective locking mechanisms during loading and unloading; accommodates a wide array of ISO 14 x 17 in (35 x 43 cm) cassette-sized detectors.

Specification	Value
Receptor Tilt Range	+90°/ 20°
Vertical Travel Range, Vertical Receptor	15.5 – 71.1 in (39.4 – 180.6 cm)
Vertical Travel Range, +90° Receptor	Minimum 25.5 in (64.8 cm)
Height	82.24 in (211 cm)
Depth, Vertical Receptor	30 in (76 cm)
Receptor Width	27.25 in (69.2 cm)
Receptor Height	26.5 in (67.3 cm)
Front Panel Aluminum Equivalency	0.4 mm
Weight	765.5 lbs (347.2 kg)
Weight (without Counterweights)	368.5 lbs (167 kg)
Power Requirements	120/230-240 VAC 50/60 Hz
Options	– 8 in (20 cm) extension box extends receptor from the column, enabling supine exams – Variety of grid options – Grid cabinet – Reciprocating bucky – Size sensing tray – Rotating tray – Left or right sideload – AEC – Vertical auto-tracking with OTC18T
