Radiographic System | Straight Arm Imaging ...

Radiographic System | Straight Arm Imaging System

Supplier: MedElec Solution Group

1/5

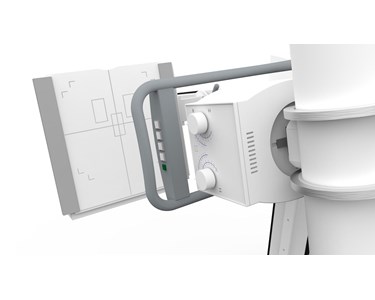

The Straight Arm is a universal imaging system with motorised SID, a manually controlled swivel arm and a counter-weighted design for smooth, precise one-handed adjustments.

Motorized SID

Features

Counter-weighted design enables smooth, precise adjustments with one hand.
Single-plane operation keeps the X-ray tube and image receptor aligned regardless of positioning.
Safety-enhancing electromagnetic brakes apply to all system movements except the tilting receptor tray, which engages at 0°.

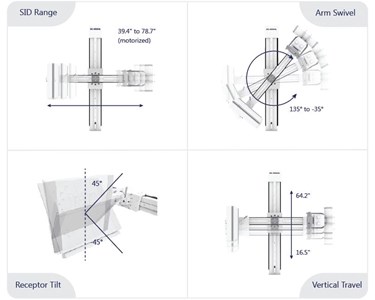

Expanded vertical lift of 17 – 64 in (43 – 163 cm) removes the need for additional equipment such as a wall stand and enables head-to-knee imaging of standing patients without unnecessary repositioning.

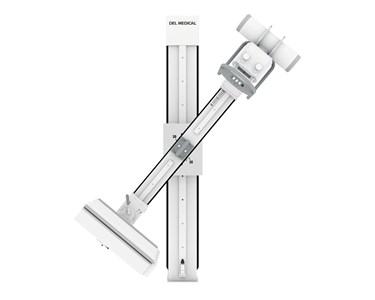

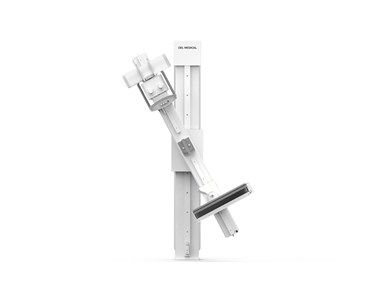

Rotating arm turns uninterrupted from 135° to -35°, while the receptor tray tilts over a ±45° range to make nearly any view accessible.
Motorised source-to-image-receptor distance (SID) adjustment allows selection of a preferred distance.

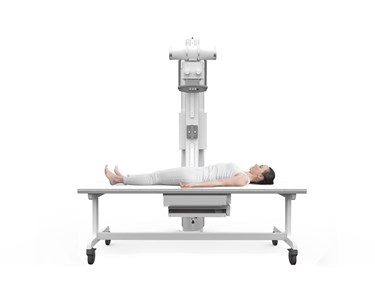

Performs a wide range of examinations independently; combining it with the MT500 Mobile Table enables recumbent positioning.

Straight Arm specifications

Specification	Value
Height	88.4 in (224.6 cm)
Width	89 in (226 cm)
Depth	51.2 in (130 cm)
Swivel Range	135° to -35°
Vertical Travel	16.5 to 64.2 in (42 to 163 cm)
Bucky Rotation	±45°
SID Adjustment	39.4 to 78.7 in (100 – 200 cm) motorized
Weight	717 lbs (325 kg)
Power Requirements	115 VAC 60 Hz 2 Amps

MT500 Mobile Table

Lightweight and easy to manoeuvre for quick positioning.
Options: Grid cabinet with tray; Table-side patient handgrips; Lateral cassette holder; Rotating tray; Compression band.

Specification	Value
Tabletop Length	80 in (203 cm)
Tabletop Width	26 in (66 cm)
Tabletop Height	28 in (71 cm)
Surface to Cassette Tray Film Plane	3.2 in (8 cm)
Weight	164 lbs (74 kg)
Weight with Cabinet	201 lbs (91.2 kg)

Features

Counter-weighted design enables smooth, precise adjustments with one hand.
Single-plane operation keeps the X-ray tube and image receptor aligned regardless of positioning.
Safety-enhancing electromagnetic brakes apply to all system movements except the tilting receptor tray, which engages at 0°.
Expanded vertical lift of 17 – 64 in (43 – 163 cm) removes the need for additional equipment such as a wall stand and enables head-to-knee imaging of standing patients without unnecessary repositioning.
Rotating arm turns uninterrupted from 135° to -35°, while the receptor tray tilts over a ±45° range to make nearly any view accessible.
Motorised source-to-image-receptor distance (SID) adjustment allows selection of a preferred distance.
Performs a wide range of examinations independently; combining it with the MT500 Mobile Table enables recumbent positioning.

Straight Arm specifications

Specification	Value
Height	88.4 in (224.6 cm)
Width	89 in (226 cm)
Depth	51.2 in (130 cm)
Swivel Range	135° to -35°
Vertical Travel	16.5 to 64.2 in (42 to 163 cm)
Bucky Rotation	±45°
SID Adjustment	39.4 to 78.7 in (100 – 200 cm) motorized
Weight	717 lbs (325 kg)
Power Requirements	115 VAC 60 Hz 2 Amps

MT500 Mobile Table

Lightweight and easy to manoeuvre for quick positioning.
Options: Grid cabinet with tray; Table-side patient handgrips; Lateral cassette holder; Rotating tray; Compression band.

Specification	Value
Tabletop Length	80 in (203 cm)
Tabletop Width	26 in (66 cm)
Tabletop Height	28 in (71 cm)
Surface to Cassette Tray Film Plane	3.2 in (8 cm)
Weight	164 lbs (74 kg)
Weight with Cabinet	201 lbs (91.2 kg)

Read less...

To contact MedElec Solution Group about Radiographic System | Straight Arm Imaging System use Get a quote.

Product Brochure(6.31MB)
