LLI Wireless DR Detector

Supplier: MedElec Solution Group

LLI Wireless DR Detector

1/5

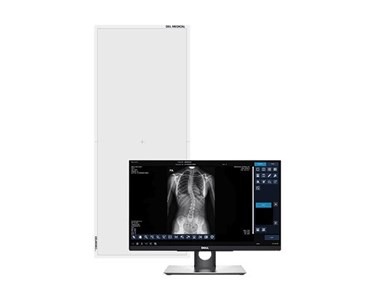

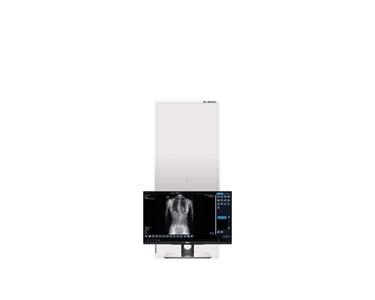

The DELWORKS LLI is a wireless long-length 43 x 107 cm detector with a multi-positional holder for upright, supine under-table or cross-table procedures.

Multi-positional holder

LLI Wireless Detector

Wireless long-length detector.
Excellent option for imaging in the operating room.

Specification	Value
Scintillator	Cesium
Detector Technology	a-Si
Active Image Area	17 x 42 in (43 x 107 cm)
Pixel Matrix	7680 x 3072 (24 mp)
Pixel Pitch	139 um
A/D Conversion	16-bit
Minimum Detectable Dose	20nGy
Maximum Linear Dose (RQA5)	115uGy
MTF @ 1.0 LP/mm	0.64/0.70/-
MTF @ 2.0 LP/mm	0.33/0.41/0.44/-
MTF @ 3.0 LP/mm	0.23/0.25/-
DQE @ 0.0 LP/mm	0.67/0.71/-
DQE @ 1.0 LP/mm	0.52/0.56/-
DQE @ 2.0 LP/mm	0.43/0.46/-
DQE @ 3.0 LP/mm	0.18/0.22/-
Ghost (%, 300uGy, 60s)	Less than 25
Spatial Resolution	3.6 LP/mm
Image Acquisition Time	3 seconds
X-ray Voltage Range	40 – 150 kV
Data Interface	GigE Wifi
Detector Housing Material	Carbon, Al alloy
Water Tightness	IPX3
Dimensions	111.5 x 47.1 x 1.5 cm
Weight (Battery and Detector)	22 lbs (10 kg)
Power Dissipation	20 W
Adapter Input	AC 100-240 V 50-60 Hz
Adapter Output	DC 24 V 60 W

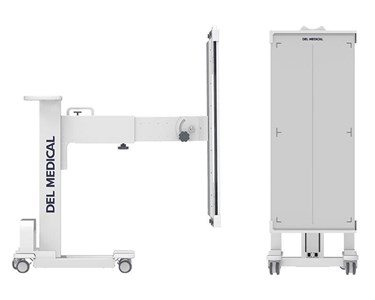

Mobile Positioning Holder

Multi-positional holder for upright, supine under-table or cross-table procedures.
Telescoping arm and adjustable head with full rotation of angulation.
Locking casters, compact design and counterbalanced construction for easy positioning.
Holds DELWORKS LLI and removable grid.

Specification	Value
Piston driven vertical travel	64 in (162.6 cm)
Total Vertical Travel	44 in (111.75 cm)
Pneumatic Piston Vertical Travel	19 in (48.25 cm)
Horizontal Arm Vertical Travel	25 in (63.5 cm)
Horizontal Stroke (Telescoping Arm)	8.125 in (20.6)
Max. Height Active Imaging Area – Portrait	78 in (198 cm)
Min. Height Active Imaging Area – Portrait	1.5 in (3.8 cm)
Max. Height Active Imaging Area – Landscape	65.5 in (166.4 cm)
Min. Height Active Imaging Area – Landscape	6.75 in (17.1 cm)
Max. Height Active Imaging Area – Undertable	63 in (160 cm)
Min. Height Active Imaging Area – Undertable	21 in (53.3 cm)
Dimensions	30 x 23.25 x 40 in (76.2 x 59 x 101.6 cm)
Weight (unloaded)	152 lbs (77 kg)
Weight (with Detector and Grid)	188 lbs (76.2 kg)

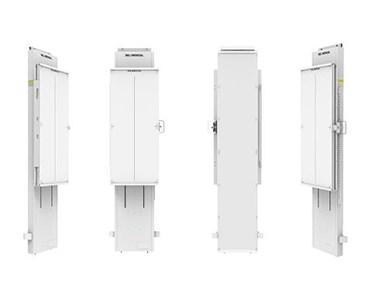

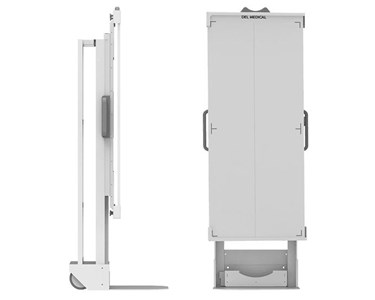

Mobile Vertical Holder

Manual height adjustment; easily moved when not in use.
Rotates the LLI detector from portrait to landscape.
Safely houses the detector for long length and routine upright exams.
Full range of motion of the detector's active area.
Fully concealed counterbalance system for easy vertical travel.
Wall hugging design.
Left or Right load.
Lead backer for back scatter protection.
No power required.

Specification	Value
Manual height adjustment	27 in (68.6 cm)
Image capture height from floor	1.75 in (4.45 cm)
Wall to receptor plane	Less than 7 in (17.8 cm)
Total Vertical Travel	27 in (68.6 cm)
Max. Height Active Imaging Area – Portrait	71 in (180 cm)
Min. Height Active Imaging Area – Portrait	1.75 in (4.44 cm)
Max. Height Active Imaging Area – Landscape	58.5 in (148.6 cm)
Min. Height Active Imaging Area – Landscape	13.5 in (34.3 cm)
Dimensions	50 x 24 x 22 in (127 x 61 x 56 cm)
Weight (unloaded)	88 lbs (40 kg)
Weight (with Detector and Grid)	126 lbs (57.3 kg)

Grid

Used in conjunction with either holder (Positioning holder / Vertical holder).

Specification	Value
Size	17 x 42 in (43 x 107 cm)
Ratio	8:1
LPI	103
Focal range	44 in (111.8 cm) to infinity

Supine Detector Cover

Placed over the detector for supine studies.
Used with weight distribution cap to provide a comfortable and level surface.

Specification	Value
Weight capacity	500 lb (227 kg)
Dimensions	54.4 x 24 x 3.4 in (138.2 x 61 x 8.6 cm)
Weight Limit	500 lbs (227 kg)
