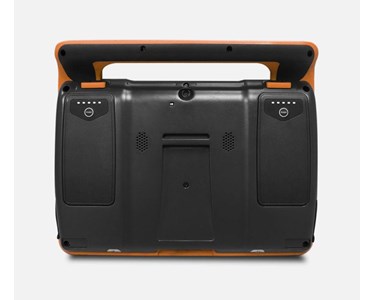

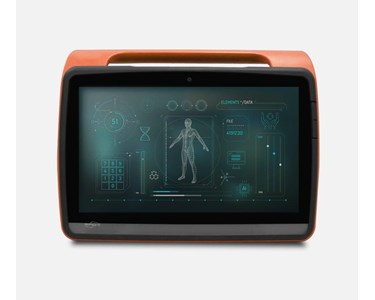

12” Fanless Intel Pentium Medical Tablet | MD116E

Supplier: Micromax

The MD116E is a robust 12” fanless medical tablet designed for demanding clinical environments, featuring Intel Pentium processing and 24/7 operational capability through dual hot-swappable batteries.

Dual hot-swappable batteries for 24/7 operation.

Key Features

Intuitive 11.6” FHD touchscreen with toughened Gorilla Glass
Intel® Elkhart Lake Pentium N6415 processor for enhanced performance
Dual hot-swappable Li-ion batteries for uninterrupted 24/7 use
Dual smart card readers and optional RFID for secure workflow
Standard USB 3.0 Type-A and Type-C (supports external display)
RJ45 Ethernet for medical device integration
IP54 rated water/dust resistance and drop tested from 0.9 m
Compatible with ORION client and instant vehicle docking system
Certified EN1789 for ambulance/medical vehicle compliance
Wi-Fi 6, LTE, GPS and Bluetooth 5.2 options for connectivity

Main Specifications

Processor	Intel® Elkhart Lake Pentium N6415, 3.0GHz
System Memory	4GB DDR4 SO-DIMM (up to 16GB)
Operating System	Windows 10, Windows 11 IoT, Ubuntu 20.04 LTS
Storage	M.2 SATA/NVMe 64GB (up to 1TB)
Wireless Communication	802.11 a/b/g/n/ac/ax Wi-Fi, Bluetooth 5.2 (optional LTE + GPS support)
Cameras	2MP front, 8MP rear
Touchscreen	Projected capacitive with Gorilla Glass
Security	Smart card readers x2, optional RFID

Display

Display Size	11.6” (29.5 cm) 16:9 widescreen LED
Resolution	FHD 1920 x 1080
Contrast Ratio	800:1
Luminance	300 nits, 600 nits

I/O & Connectivity

USB	USB 3.0 Type-A x1, USB 3.0 Type-C (data/output) x1
Ethernet	Gigabit LAN x1
Docking	Docking connector x1
DC-in	12V jack x1

Battery

Type: Li-ion, hot-swappable
Capacity: 4545 mAh (32.72 Wh) x2
Run Time: Approx. 8 hours per full charge (actual may vary)

Mechanical & Environmental

Mount: VESA 75 (via docking station)
Degree of Protection: IP54 (dust/water resistant)
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Storage Humidity: 10%~95% at 40°C, non-condensing
Dimensions: 312 mm (W) x 239 mm (H) x 37 mm (D)
Packing Size: 400 mm x 345 mm x 160 mm
Gross Weight: 3 kg
Net Weight: Approx. 1.45–1.8 kg

Certifications

CE: EN 60601-1-2:2020 (EMC4.1), EN 60601-1:2020 (Safety 3.2), EN 300 328 (V2.1.1), EN 301 893 (V2.1.1)
FCC: Part 18 Class B, Part 15 C/E
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
Automotive Directive and EN1789

Ordering Information

ONYX-MD116E-P1-A1-0001: 300 nits brightness
ONYX-MD116E-P1-A1-0002: 600 nits brightness

Optional Accessories

Medical Adaptor: AC/DC 100-240V, 12V/10A, 120W
