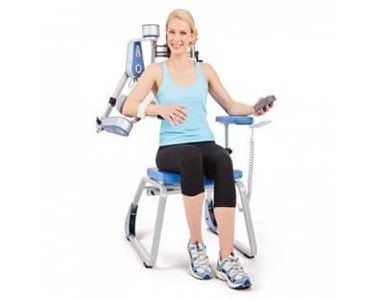

Chattanooga - Continuous Passive Motion Shoulder Machine

Supplier: Intirg

Continuous Passive Motion Shoulder Machine

1/2

The ARTROMOT-S4 is an advanced Continuous Passive Motion (CPM) device designed for shoulder rehabilitation, featuring motorised support for multiple motion axes to enhance patient recovery.

Features three integrated motors for advanced, multi-axis shoulder therapy and safety.

Key Features & Benefits

Touchscreen hand controller with direct programming and clear, descriptive icons
Three integrated motors for precise control of anteversion/retroversion, adduction/abduction, internal/external rotation, and elevation movements
User guidance simplifies conversion between right and left shoulder
Adaptive load reversal for patient safety and spasm protection, with adjustable sensitivity
Reinforced, adjustable armrest for optimal support and comfort
Patient chip card for easy storage and retrieval of therapy parameters
Lockout functions prevent accidental parameter changes
Comprehensive therapy documentation, trend graph of progress, and service menu access for technicians

Therapeutic Movements Supported

Anteversion & retroversion
Adduction & abduction
Internal & external rotation
Extension & flexion (elevation) with extended or flexed arm
Anatomically correct PNF patterns and undulation ("wave") exercise

Technical Specifications

Adduction/Abduction	0° / 30° / 160°
Anteversion/Retroversion	110° / 0° / 10°
Elevation (Extension/Flexion)	0° / 30° / 160°
Internal/External Rotation	90° / 0° / 90°
Oscillation Frequency	1 to 150 Hz
Weight	28 kg
Dimensions	166 × 100 × 160 cm
Goniometer accuracy	±2°
Max. continuous load (motion element)	13 kg
Max. continuous load (seat)	175 kg
Patient height range	120 to 210 cm
Adaptive load reversal	5–100% of trigger threshold
Cycles	5–20; adjustment for Isolation, Oscillation and Stretching
Timer	1–59 minutes, 1–12 hours or continuous
Total therapy time	Sum of all sessions

Includes reinforced head rest for optimal patient posture
Standby function for inactive drives
Transport position configuration for easy movement
Warm-up protocol with gradual progression
Detailed view and standard view display options
Pause function: 0–30 seconds
Side conversion for left or right shoulder therapy

To contact Intirg about Chattanooga Continuous Passive Motion Shoulder Machine use Get a quote.
