Fully automated dental 3D printing, washing, drying, and curing—integrated into a single compact machine.

Backordered; will ship as soon as it is back in stock.

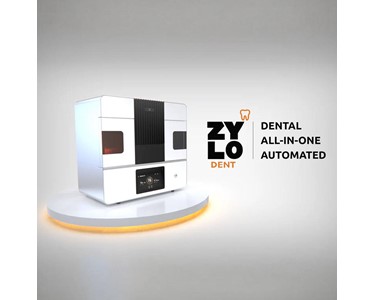

The First All-in-One Automated 3D Printer

With advanced integration, this 3D printer allows you to print, wash, dry, and cure models chairside with minimal footprint and ease of operation—eliminating complex resin handling and streamlining the dental workflow.

Key Features

All-in-One: Print, wash, dry, and cure in one machine
Robotic automation minimises human intervention
Industrial-grade DLP optical engine and open material system
Adaptive speed control with real-time monitoring
Seamless chairside operation for faster patient turnaround

Technical Specifications

Technology	Resin 3D Printer (DLP Type)
Light Source	Digital Light Processing (Projector)
XY Resolution	50 µm
Layer Thickness	0.05 – 0.1 mm
Average Printing Speed	45 mm/hr at 0.1 mm layer thickness
Resin Heating	Automatic
Compatible File Format	STL
Power Requirement	100-240 VAC, 50-60HZ
Printer Control	Interactive 7” touchscreen
Connectivity	LAN/Wi-Fi
Built-in Memory	30 GB
Printing Volume	125 × 70 × 100 mm
Printer Weight	50 kg

Washing Unit

Cleaning Method: Bubble generator for enhanced biocompatibility and mechanical strength
Solvent: Isopropyl alcohol (IPA) 99%
Cleaning Tank Size: 160 × 90 × 100 mm

Post Curing Unit

Curing UV Technology: LED (405 nm wavelength) with heater
Curing Chamber Size: 165 × 150 × 85 mm
Number of LEDs: 30 (3W each); Irradiance per side: 55 mW/cm²
Temperature control: True

Software

DentPrint (Zylo 3D CAM software). User interface via 7-inch touchscreen and PC integration (LAN/Wi-Fi).

*All specifications tested in laboratory conditions and subject to change. Please refer to the manufacturer's site for updates.

To contact CM Medical about Dental 3D Printer | All-in-One Automated 3D Printer use Get a quote.
