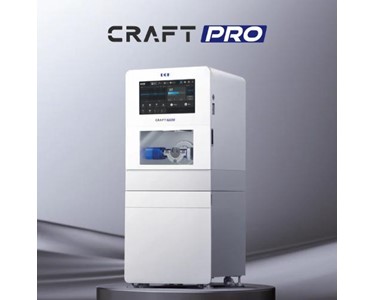

DOF CRAFT PRO Milling Machine

DOF - CRAFT PRO Milling Machine Price Guide: $119,995

Supplier: CM Medical

CRAFT PRO Milling Machine

The All-on-X CRAFT PRO is a high-end dental milling machine engineered for precision and versatility in metal and full-arch restorations.

Ultra-precise metal milling with real-time feedback and 40-tool automated capacity.

Backordered – ships as soon as back in stock.

Product Overview

The All-on-X CRAFT PRO sets a new standard in dental metal milling, delivering unmatched precision, performance, and material compatibility. Powered by advanced DOF technology, this machine enables dental clinics and labs to achieve high-quality, repeatable results for complex restorations, including full-arch cases.

Main Features

Full Servo + Linear Scale motor for ultra-precise machining
High-power SycoTec spindle (up to 3.6kW, 60,000 RPM) for processing hard metals
40-tool pocket capacity with automated tool changes
Supports both wet and dry milling operations
Real-time feedback control with 0.5µm accuracy
User-friendly control via Motion App and DOF Sync PC App
Compatible with multiple materials: Titanium, Co-Cr Disk, Pre-milled, Zirconia, PMMA, PEEK, Wax, Glass Ceramics, Resin
Stable surfaces and reduced tool wear with custom processing strategies
Smart connectivity for monitoring and schedule management

Specifications

Motor	AC Servo Motor with 0.5µm linear scale
Spindle	SycoTec, up to 3.6kW / 60,000 RPM
Tool Pockets	40
Network Connection	Wired LAN, Wi-Fi (Motion App / DOF Sync)
Compatible Materials	Titanium, Co-Cr Disc, Pre-milled, Zirconia, PMMA, PEEK, Wax, Glass Ceramics, Resin
Milling Type	Wet (3 nozzles, AC motor coolant) & Dry (5-level suction control)
Tilt Angles	A-axis ±360° / B-axis ±35°
Display	21.5-inch screen with Motion App 3.0
Dimensions	Machine: 725 x 901 x 992 mm, Table: 725 x 901 x 883 mm
Weight	Total: 350 kg
CAM Software	hyperDENT, Millbox
Power Consumption	220V 16A
Minimum Compressor	50 L/min at 7 bar

Applications

Coping / Crown
Bridge
Inlay / Onlay
Veneer
Over Structure
Abutment
Full-arch and implant prosthetics

Connectivity & Control

Real-time machine monitoring via mobile (Motion App) and PC (DOF Sync App)
Smart control system and intuitive UI for tool management and process tracking
Same platform handles process workflows, schedule management, and status notifications

Highlights

Integrated closed-loop feedback for error correction
Customisable processing templates for speed and quality control
Efficient tool management and minimal setup for continuous operation
Stable, high-quality surface finish even on demanding metals

To contact CM Medical about DOF CRAFT PRO Milling Machine use Get a quote.

Product Overview

Main Features

Full Servo + Linear Scale motor for ultra-precise machining
High-power SycoTec spindle (up to 3.6kW, 60,000 RPM) for processing hard metals
40-tool pocket capacity with automated tool changes
Supports both wet and dry milling operations
Real-time feedback control with 0.5µm accuracy
User-friendly control via Motion App and DOF Sync PC App
Compatible with multiple materials: Titanium, Co-Cr Disk, Pre-milled, Zirconia, PMMA, PEEK, Wax, Glass Ceramics, Resin
Stable surfaces and reduced tool wear with custom processing strategies
Smart connectivity for monitoring and schedule management

Specifications

Motor	AC Servo Motor with 0.5µm linear scale
Spindle	SycoTec, up to 3.6kW / 60,000 RPM
Tool Pockets	40
Network Connection	Wired LAN, Wi-Fi (Motion App / DOF Sync)
Compatible Materials	Titanium, Co-Cr Disc, Pre-milled, Zirconia, PMMA, PEEK, Wax, Glass Ceramics, Resin
Milling Type	Wet (3 nozzles, AC motor coolant) & Dry (5-level suction control)
Tilt Angles	A-axis ±360° / B-axis ±35°
Display	21.5-inch screen with Motion App 3.0
Dimensions	Machine: 725 x 901 x 992 mm, Table: 725 x 901 x 883 mm
Weight	Total: 350 kg
CAM Software	hyperDENT, Millbox
Power Consumption	220V 16A
Minimum Compressor	50 L/min at 7 bar

Applications

Coping / Crown
Bridge
Inlay / Onlay
Veneer
Over Structure
Abutment
Full-arch and implant prosthetics

Connectivity & Control

Real-time machine monitoring via mobile (Motion App) and PC (DOF Sync App)
Smart control system and intuitive UI for tool management and process tracking
Same platform handles process workflows, schedule management, and status notifications

Highlights

Integrated closed-loop feedback for error correction
Customisable processing templates for speed and quality control
Efficient tool management and minimal setup for continuous operation
Stable, high-quality surface finish even on demanding metals

Read less...

To contact CM Medical about DOF CRAFT PRO Milling Machine use Get a quote.
