KUKA KMP 1500P Autonomous Mobile Platform ...

KUKA - KMP 1500P Autonomous Mobile Platform

Supplier: Swisslog Healthcare

KMP 1500P Autonomous Mobile Platform

1/3

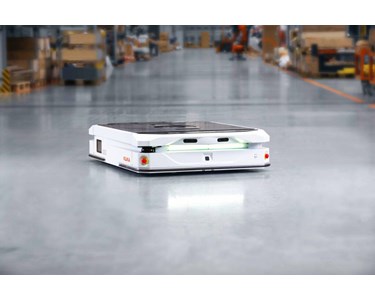

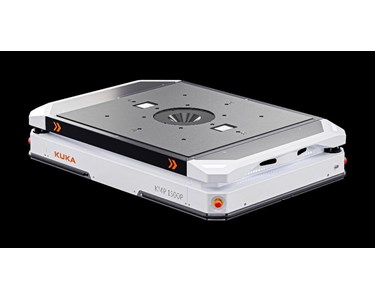

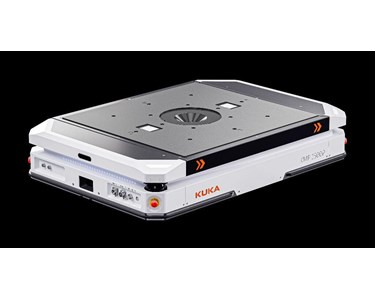

The KUKA KMP 1500P autonomous mobile platform transports loads up to 1,5 t, with SLAM navigation, QR load identification, 3D obstacle detection and automated charging.

High load capacity up to 1,5 t

Overview

Autonomous mobile robot (AMR) for intralogistics, production-line material supply and process linkage in factories and logistics centres.
Lifts all types of load carriers and can be integrated into existing industrial projects.
Differential drive and flexible movement support navigation through complex, dynamic environments and adaptation to changing requirements.
Load identification improves material traceability and operational efficiency. Mobile robotics supports lower operating costs, flexibility and productivity.

Specifications

Specification	Value
Model	KMP 1500P
High load capacity	up to 1,5 t
Lifting height	60 mm
Max. speed	1.8 m/s without load, 1.5 m/s loaded
positioning accuracy	±5 mm
Charging and use	2 h charge for 8 h of use. 1 h charge for 20-80 % capacity
protection class	IP 54
IoT devices approval	ICE, UL, and FCC

Navigation and fleet management

SLAM navigation; an underneath camera reads QR codes for high positioning accuracy.
KMReS No-Code-Platform with AI functionality supports easy integration, operation and maintenance.
Intuitive browser-based configuration enables quick route planning and workflow adaptation without programming, reducing implementation time and resources.
Automatic rack recognition assists integration.
Comprehensive fleet management regulates fleet traffic and automatically reschedules around obstacles, with different AMRs managed on one digital platform.
Wi-Fi connection; 5G capable.

Safety and load handling

Laser scanners detect obstacles; 3D cameras additionally detect obstacles and people in three-dimensional space, protecting the AMR, load, equipment and employees.
Bumper / safety edge, acoustic and optical signals, and four emergency stop switches, one at each corner.
Lift with treated hole grid pattern for pins and other fittings.
On-platform camera for QR load identification.
Sound module for notifications, alarms and music.
IP 54 protection against splash water, dust and chips.

Charging management

Conductive charging docking station with digital touch screen.
Automatically routes to a free charging station when the battery level is low.
Single-phase supply requires no special power supply installation.
Inductive charging available in 2024.

Applications

Just-in-time material supply from warehouses or supermarkets to stations, assembly and pre-assembly lines.
Autonomous component and workpiece transport between stations, increasing production flexibility and replacing inflexible conveyors.
Commissioning: flexible picking, goods-to-person, autonomous piece picking and flexible sorting.
Warehousing and point-to-point transport, with stock management and inventory control supported by KMReS.

Overview

Autonomous mobile robot (AMR) for intralogistics, production-line material supply and process linkage in factories and logistics centres.
Lifts all types of load carriers and can be integrated into existing industrial projects.
Differential drive and flexible movement support navigation through complex, dynamic environments and adaptation to changing requirements.
Load identification improves material traceability and operational efficiency. Mobile robotics supports lower operating costs, flexibility and productivity.

Specifications

Specification	Value
Model	KMP 1500P
High load capacity	up to 1,5 t
Lifting height	60 mm
Max. speed	1.8 m/s without load, 1.5 m/s loaded
positioning accuracy	±5 mm
Charging and use	2 h charge for 8 h of use. 1 h charge for 20-80 % capacity
protection class	IP 54
IoT devices approval	ICE, UL, and FCC

Navigation and fleet management

SLAM navigation; an underneath camera reads QR codes for high positioning accuracy.
KMReS No-Code-Platform with AI functionality supports easy integration, operation and maintenance.
Intuitive browser-based configuration enables quick route planning and workflow adaptation without programming, reducing implementation time and resources.
Automatic rack recognition assists integration.
Comprehensive fleet management regulates fleet traffic and automatically reschedules around obstacles, with different AMRs managed on one digital platform.
Wi-Fi connection; 5G capable.

Safety and load handling

Laser scanners detect obstacles; 3D cameras additionally detect obstacles and people in three-dimensional space, protecting the AMR, load, equipment and employees.
Bumper / safety edge, acoustic and optical signals, and four emergency stop switches, one at each corner.
Lift with treated hole grid pattern for pins and other fittings.
On-platform camera for QR load identification.
Sound module for notifications, alarms and music.
IP 54 protection against splash water, dust and chips.

Charging management

Conductive charging docking station with digital touch screen.
Automatically routes to a free charging station when the battery level is low.
Single-phase supply requires no special power supply installation.
Inductive charging available in 2024.

Applications

Just-in-time material supply from warehouses or supermarkets to stations, assembly and pre-assembly lines.
Autonomous component and workpiece transport between stations, increasing production flexibility and replacing inflexible conveyors.
Commissioning: flexible picking, goods-to-person, autonomous piece picking and flexible sorting.
Warehousing and point-to-point transport, with stock management and inventory control supported by KMReS.

Read less...
