KUKA - KR AGILUS industrial robot

Supplier: Swisslog Healthcare

KR AGILUS industrial robot

1/3

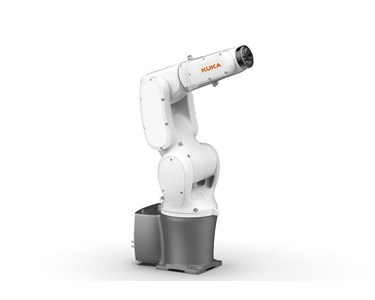

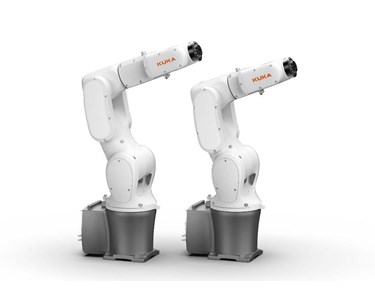

The KUKA KR AGILUS is a compact six-axis industrial robot with high working speeds, integrated energy supply and variants for cleanroom, hygienic, wet and potentially explosive environments.

Extreme precision with any cycle time

Features

High working speeds, maximum repeatability and continuous precision. Extreme speed reduces cycle times and increases production quality.
Compact design for confined spaces and space-saving cell concepts, with floor, ceiling and wall installation options.
Integrated energy supply system and KR C5 micro controller.
Safe Robot functionality enables innovative automation concepts.
Lifetime lubrication eliminates lubricant changes in the gear units, with minimal maintenance requirements. Robust design supports continuous productivity.
ESD protection is included in the standard version to protect against electrostatic charging.
Overview ranges stated: 6–10kg; 706–1,101mm; ±0.02–0.03 mm.

Model specifications

The technical data below applies exclusively to standard versions.

Specification	KR 10 R1100	KR 10 R900	KR 10 R1100-2	KR 10 R900-2	KR 6 R900-2	KR 6 R700-2
Number of axes	6	6	6	6	6	6
Rated payload	5 kg	5 kg	10kg	10kg	6kg	6kg
Maximum payload	10kg	10kg	11.1 kg	11.3 kg	6.7 kg	6.8kg
Reach	1,101 mm	901mm	1,101mm	901mm	901mm	726mm
Pose repeatability	±0.03mm	±0.03mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Weight	54kg	52 kg	55 kg	55 kg	55 kg	53 kg
Variants	CR, EX, HM, WP	CR, HM, WP	HO, EP	EP	EP	EP

Variants

Hygienic Machine: completely hygienic design and materials allow direct contact with food and pharmaceutical substances.
Waterproof (IP67): completely splash-proof and achieves maximum performance even under extreme external production conditions. Plastic parts are replaced with stabilised stainless steel covers; resistant surface treatments and additional internal seals allow use in a machine tool environment.
Cleanroom: meets cleanroom class ISO 2 requirements for small spaces and complex applications with strict cleanliness requirements.
EX: adds explosion protection to the Waterproof variant for precise operation in potentially explosive environments (zone 2).

Code	Meaning
CR	Suitable for cleanrooms
EX	For potentially explosive atmospheres
HM	Hygienic Design
HO	Food compatible lubricants
WP	Splash-proof
EP	Electrostatic discharge (ESD plus)

Features

High working speeds, maximum repeatability and continuous precision. Extreme speed reduces cycle times and increases production quality.
Compact design for confined spaces and space-saving cell concepts, with floor, ceiling and wall installation options.
Integrated energy supply system and KR C5 micro controller.
Safe Robot functionality enables innovative automation concepts.
Lifetime lubrication eliminates lubricant changes in the gear units, with minimal maintenance requirements. Robust design supports continuous productivity.
ESD protection is included in the standard version to protect against electrostatic charging.
Overview ranges stated: 6–10kg; 706–1,101mm; ±0.02–0.03 mm.

Model specifications

The technical data below applies exclusively to standard versions.

Specification	KR 10 R1100	KR 10 R900	KR 10 R1100-2	KR 10 R900-2	KR 6 R900-2	KR 6 R700-2
Number of axes	6	6	6	6	6	6
Rated payload	5 kg	5 kg	10kg	10kg	6kg	6kg
Maximum payload	10kg	10kg	11.1 kg	11.3 kg	6.7 kg	6.8kg
Reach	1,101 mm	901mm	1,101mm	901mm	901mm	726mm
Pose repeatability	±0.03mm	±0.03mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Weight	54kg	52 kg	55 kg	55 kg	55 kg	53 kg
Variants	CR, EX, HM, WP	CR, HM, WP	HO, EP	EP	EP	EP

Variants

Hygienic Machine: completely hygienic design and materials allow direct contact with food and pharmaceutical substances.
Waterproof (IP67): completely splash-proof and achieves maximum performance even under extreme external production conditions. Plastic parts are replaced with stabilised stainless steel covers; resistant surface treatments and additional internal seals allow use in a machine tool environment.
Cleanroom: meets cleanroom class ISO 2 requirements for small spaces and complex applications with strict cleanliness requirements.
EX: adds explosion protection to the Waterproof variant for precise operation in potentially explosive environments (zone 2).

Code	Meaning
CR	Suitable for cleanrooms
EX	For potentially explosive atmospheres
HM	Hygienic Design
HO	Food compatible lubricants
WP	Splash-proof
EP	Electrostatic discharge (ESD plus)
