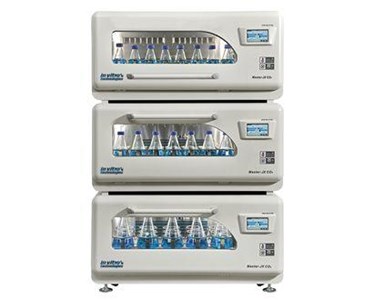

LabFlow Master JX Series Incubator Shakers ...

LabFlow Master JX Series Incubator Shakers

Supplier: In Vitro Technologies

The LabFlow Master JX Series Shakers are precision-controlled incubator shakers designed for advanced cell culture and bioprocessing, offering reliable growth environments for research applications.

Unmatched precision and data traceability for advanced cell culture and bioprocessing research.

The LabFlow Master-JX Series delivers highly controlled in-vitro conditions simulating in-vivo environments, with accurate regulation of temperature, CO2, pH, and humidity. These incubator shakers are ideal for high-performance immunology, oncology, genetics, and bioengineering research.

Key Features & Benefits

7-inch touch screen for easy operation, glove compatible, with multi-parameter display and monitoring
GMP compliant 304 stainless steel interior with rounded corners for easy cleaning
Stores 1 million data points or over 5 years with USB data export
Stackable design: single, double, or triple layers to maximise floor space
Drop-down door and pull-out tray for effortless sample bottle access
Single eccentric drive system ensures minimal friction, low noise, high stability, and long lifespan
Efficient servo motor with precise speed control, high torque, reversible rotation, and stepless speed variation
Variable-speed compressors maintain precise temperature, prevent evaporator frost, and reduce energy consumption by over 30%
High-precision PID temperature control and original infrared CO2 sensor for stable, uniform sample environments
Multiple safety functions: automatic power cutoff for leaks/overcurrent, speed & temperature monitoring, and protection alerts to prevent sample or equipment damage

Options

Humidity control, illumination control, high-speed shaking, light shade, sticky plate, remote monitoring, gas control, 3Q qualification

Technical Data Comparison

Model	Master-JX 2021R Plus	Master-JX 2023R Plus	Master-JX 2022R Plus
Door Opened Method	Drop Down	Drop Down	Front Opening
Temperature Control Range	4-60 ? (RT-18 ?, minimum temperature 4 ?)
Temperature Control Accuracy	±0.1°C
Temperature Control Uniformity	±0.5°C (at 37°C)
CO2 Sensor/Control	IR Sensor, 0-20% range, ±0.1% accuracy, ±0.5% uniformity (at 5%)
Shaking Motion	Rotary or reciprocal	Rotary or reciprocal	Rotary/reciprocal (adjustable)
Speed Range/Accuracy	0-300 rpm, ±1 rpm
Shaking Diameter	25mm (50mm or 0-50mm adjustable)	25mm (50mm or 0-50mm adjustable)	25mm (50mm or 0-50mm adjustable)
Timer	0-9999 hours and 0-9999 minutes
Volume	208 L	282 L	170 L
External Dimension (L×D×H)	1200×797×640 mm	1410×830×660 mm	715×900×810 mm
Internal Dimension (L×D×H)	850×570×430 mm	1030×595×460 mm	580×520×465 mm
Height Above Shaker Tray	353 mm	379 mm	505 mm
Tray Size (L×D)	780×500 mm	940×530 mm	480×440 mm
Maximum Capacity	2000 ml ×12; 1000 ml ×15; 500 ml ×28; 250 ml ×40	5000 ml ×7; 2000 ml ×15; 1000 ml ×28; 500 ml ×40; 250 ml ×60	5000 ml ×4; 2000 ml ×5; 1000 ml ×9; 500 ml ×16; 250 ml ×25; Shelves for static cultivation ×1
Tray Material	Aluminium
UV Lamp	YES
Chamber Material	304 stainless steel	305 stainless steel	306 stainless steel
Stackable Layer	Maximum 3 layers	Maximum 3 layers	Maximum 2 layers
Power Supply	220V±10%, 50/60Hz

Safety & Protection Functions

Personnel protection with leakage and overcurrent detection—automatic power cut-off on abnormality
Sample protection with speed monitoring and auto-stop on speed anomaly
Equipment protection via real-time temperature monitoring and immediate shutdown to prevent accidents

To contact In Vitro Technologies about LabFlow Master JX Series Incubator Shakers use Get a quote.

Key Features & Benefits

7-inch touch screen for easy operation, glove compatible, with multi-parameter display and monitoring
GMP compliant 304 stainless steel interior with rounded corners for easy cleaning
Stores 1 million data points or over 5 years with USB data export
Stackable design: single, double, or triple layers to maximise floor space
Drop-down door and pull-out tray for effortless sample bottle access
Single eccentric drive system ensures minimal friction, low noise, high stability, and long lifespan
Efficient servo motor with precise speed control, high torque, reversible rotation, and stepless speed variation
Variable-speed compressors maintain precise temperature, prevent evaporator frost, and reduce energy consumption by over 30%
High-precision PID temperature control and original infrared CO2 sensor for stable, uniform sample environments
Multiple safety functions: automatic power cutoff for leaks/overcurrent, speed & temperature monitoring, and protection alerts to prevent sample or equipment damage

Options

Humidity control, illumination control, high-speed shaking, light shade, sticky plate, remote monitoring, gas control, 3Q qualification

Technical Data Comparison

Model	Master-JX 2021R Plus	Master-JX 2023R Plus	Master-JX 2022R Plus
Door Opened Method	Drop Down	Drop Down	Front Opening
Temperature Control Range	4-60 ? (RT-18 ?, minimum temperature 4 ?)
Temperature Control Accuracy	±0.1°C
Temperature Control Uniformity	±0.5°C (at 37°C)
CO2 Sensor/Control	IR Sensor, 0-20% range, ±0.1% accuracy, ±0.5% uniformity (at 5%)
Shaking Motion	Rotary or reciprocal	Rotary or reciprocal	Rotary/reciprocal (adjustable)
Speed Range/Accuracy	0-300 rpm, ±1 rpm
Shaking Diameter	25mm (50mm or 0-50mm adjustable)	25mm (50mm or 0-50mm adjustable)	25mm (50mm or 0-50mm adjustable)
Timer	0-9999 hours and 0-9999 minutes
Volume	208 L	282 L	170 L
External Dimension (L×D×H)	1200×797×640 mm	1410×830×660 mm	715×900×810 mm
Internal Dimension (L×D×H)	850×570×430 mm	1030×595×460 mm	580×520×465 mm
Height Above Shaker Tray	353 mm	379 mm	505 mm
Tray Size (L×D)	780×500 mm	940×530 mm	480×440 mm
Maximum Capacity	2000 ml ×12; 1000 ml ×15; 500 ml ×28; 250 ml ×40	5000 ml ×7; 2000 ml ×15; 1000 ml ×28; 500 ml ×40; 250 ml ×60	5000 ml ×4; 2000 ml ×5; 1000 ml ×9; 500 ml ×16; 250 ml ×25; Shelves for static cultivation ×1
Tray Material	Aluminium
UV Lamp	YES
Chamber Material	304 stainless steel	305 stainless steel	306 stainless steel
Stackable Layer	Maximum 3 layers	Maximum 3 layers	Maximum 2 layers
Power Supply	220V±10%, 50/60Hz

Safety & Protection Functions

Personnel protection with leakage and overcurrent detection—automatic power cut-off on abnormality
Sample protection with speed monitoring and auto-stop on speed anomaly
Equipment protection via real-time temperature monitoring and immediate shutdown to prevent accidents

Read less...

To contact In Vitro Technologies about LabFlow Master JX Series Incubator Shakers use Get a quote.
