Terason - uSmart 3300 NexGen Colour Doppler Ultrasound Machine
AMS is the Import Agent for Terason Ultrasound Scanners Australia holding the TGA Registration. Terason Ultrasound is designed and manufactured in the USA.
Terason uSmart 3300 NexGen Ultrasound Scanner
Clinical Applications: Anesthesia, Breask, Cardiology, Critical Care, Emergency Medicine, Endocrinology, Mobile, Musculoskeletal, OB/GYN, Phlebology, Radiology, Vascular
Features
A fusion of SuperHarmonicTM Imaging Power and Smart Console Design
SuperHarmonic Imaging Power
1 TB SSD
CW Doppler, Stress Echo and EKG
Enhanced Needle Visualization (ENV)
Reliable and Responsive High-Quality Buttons
Durable, Impact-Resistant Design
Intima-Media Thickness (IMT)
Data Management
Advanced computer technology and open architecture to streamline
workflow and easily store data.
1TB SSD
Integrated CD/DVD+RW
Easy integration with EMR
Wireless networking available
Easily transfer DICOM images to PACS
Open architecture for file management and 3rd party software
DICOM Structured Reporting (DICOM SR)
Specifications
Imaging Modes
2D (B-Mode)
M-Mode
Anatomical M-Mode
Color Doppler
Pulsed Wave Doppler
Power Doppler
Directional Power Doppler
Continuous Wave Doppler
Tissue Doppler
Tissue Harmonic Imaging with SuperHarmonicsTM
System Features
1 TB SSD
802.11 b/g/n Wireless Network, BT 4.0
Processor: 2.5 GHz, Intel® CoreTM i7
8G RAM DDR3 Onboard Memory
15" Backlit Polarized Anti-Glare LCD, Ultra-Wide Viewing Angle
Removable Lithium Ion Battery
Imaging Channels: 256
Dynamic Range: 200 dB
Video Output: 1024 x 768
Built-In CD/DVD+RW Drive
Built-In Camera
Dual Speakers with Subwoofer
4 USB Ports
Gb Ethernet Port
2 HDMI Ports
DC Input
Headphone Jack
Microphone Jack
Kensington Security Slot
ECG and Auxiliary Ports
uConnect® Remote Capabilities
Windows® 10 Operating System
Cold Boot-Up Time: < 55 Seconds
Imaging Features
Smart Resolution Imaging
Enhanced Needle Visualization (ENV)
TeraVisionTM II
OmniBeamTM
Dynamic Depth Resolution (DDRTM)
TeraZoomTM
Trapezoid
Color/2D
Triplex/Duplex (Simultaneous/Non-Simultaneous)
Split Screen
Full Screen
Auto Optimization
2D Beam Steering
Application-Specific Presets
TeraScapeTM
Post Processing
Intima-Media Thickness (IMT)
Ergonomics
Smart Console Design
Optical Trackball (Full-Size)
Ergonomic Key Positioning
Reliable and Responsive High-Quality Controls
Backlit High-Resolution LCD
Backlit Keyboard
Comfort Handle
Intuitive User Interface
Tilt Feet
Workflow
Color Change Controls for Active Mode
Prospective and Retrospective Capture
Cine Loop Trim Capability
Advanced Measurement Tools
Configurable Report Builder
Store, Print, Media Export
JPEG/AVI/BMP/PDF Media Export
DICOM 3.0
DICOM Modality Worklist
DICOM Storage
DICOM SR
Measurement Packages
Cardiology
OB
Vascular
Physical System Specifications
System Height: 3.5"/ 89 mm
System Depth: 15.6"/ 396 mm
System Width: 15.3"/ 389 mm
Weight: 14.8 lb / 6.7 kg

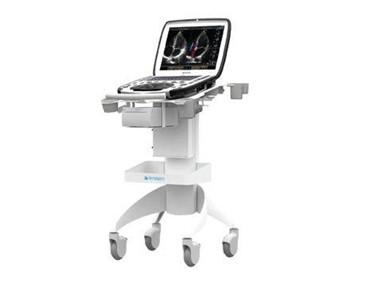

Cart Design and Ergonomics
Sleek Body Style
Weight: 85 lb / 38.5 kg
Mobile Design
4-Wheel Steering for Excellent Mobility
4 Locking Wheels
3 Transducer Holders
Removable and Washable Gel Holder
On-Cart Storage Basket
Transducer Connector Holders
Cable Management
OEM Printer Bay
Multi-Probe Connector Kit (Optional)
Mobile
Solid State Drive (SSD) and the latest technology provide quick boot-up time, image optimization and system stability
uConnect® remote capabilities
Anatomy-specific presets decrease scan time and improve ease of use and accuracy, increasing patient throughput
Long-life replaceable battery for extended use

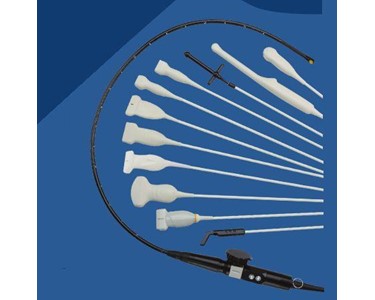

Probe / Transducer Options
Option of 12 Transducers available to suit the following applications: Ranging from 2MHz – 16MHz
Abdominal, Arterial, Breast, Carotid, Dialysis Access, FAST, Fetal Cardiac, Gynecology, Lung, Musculoskeletal, MSK (Wrist & Hand), MSK (Foot & Ankle), Neonatal Hip, Nerve Block, Obstetric, Opthalmic, Pediatric Cardiac, Prostate, Renal, Thyroid, Testes, TCD, Vascular Access, Venous, Visceral
Optional – Accessories
Digital Monochome Thermal Printer
Keyboard
Smart Bracket
USB Flash Drive
USB Foot Switches
3 Pedal Foot Switch
Protective Cover
Roller Bag
Screen Cloth
Shoulder Bag
Stylus
Battery
ECG Cable
ECG Leadset
uSmart® 3200T NexGen Multi-Probe Connector Kit
uSmart 3200T NexGen Connector Kit for the Terason Cart (includes cable)
Smart CaseTM Protective Cover
Protects the uSmart 3200T NexGen System from impact during transport and use and provides protection when dropped up to 50cm
For more information and to confirm specifications, please download the brochure.
To contact Australian Medical Systems about Terason uSmart 3300 NexGen Colour Doppler Ultrasound Machine use Get a quote.
