Torvan Medical - EndoCab - Endoscope Drying & Storage

Supplier: Macemark Technology

EndoCab - Endoscope Drying & Storage

1/3

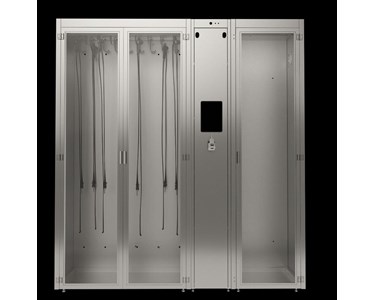

The EndoCab stores and continues drying reprocessed flexible endoscopes in a controlled, HEPA-filtered environment, built in stainless steel with tempered glass doors.

Every cabinet runs constant positive-pressure, HEPA-filtered ventilation for consistent, high air quality. The range accommodates 6 to 20 flexible endoscopes, with hangers for large and small-diameter flexible endoscopes, Trans-Oesophageal (TOE) and Ultrasound Probes and other specialty flexible scopes.

Configuration options match the cabinet to your unit: HEPA channel-purge to actively dry internal channels; touchscreen tracking via barcode or RFID; integrated top or modular side storage; an exterior security lock; and self-monitoring of the HEPA fan, channel-purge pump and door sensors. Pass-through models provide barrier separation between clean and storage areas.

Configurations

Configuration	Capacity	Footprint (WxDxH)
HEPA constant positive-pressure ventilation	6–20 scopes	37?–57? × 24? × 92?
+ HEPA channel purge (dries channels)	6–20 scopes	As above
+ Touchscreen RFID / barcode tracking	6–20 scopes	As above
Pass-through	10 scopes	40? × 18? × 95?
Pass-through + channel purge	16 scopes	36? × 20? × 95?
